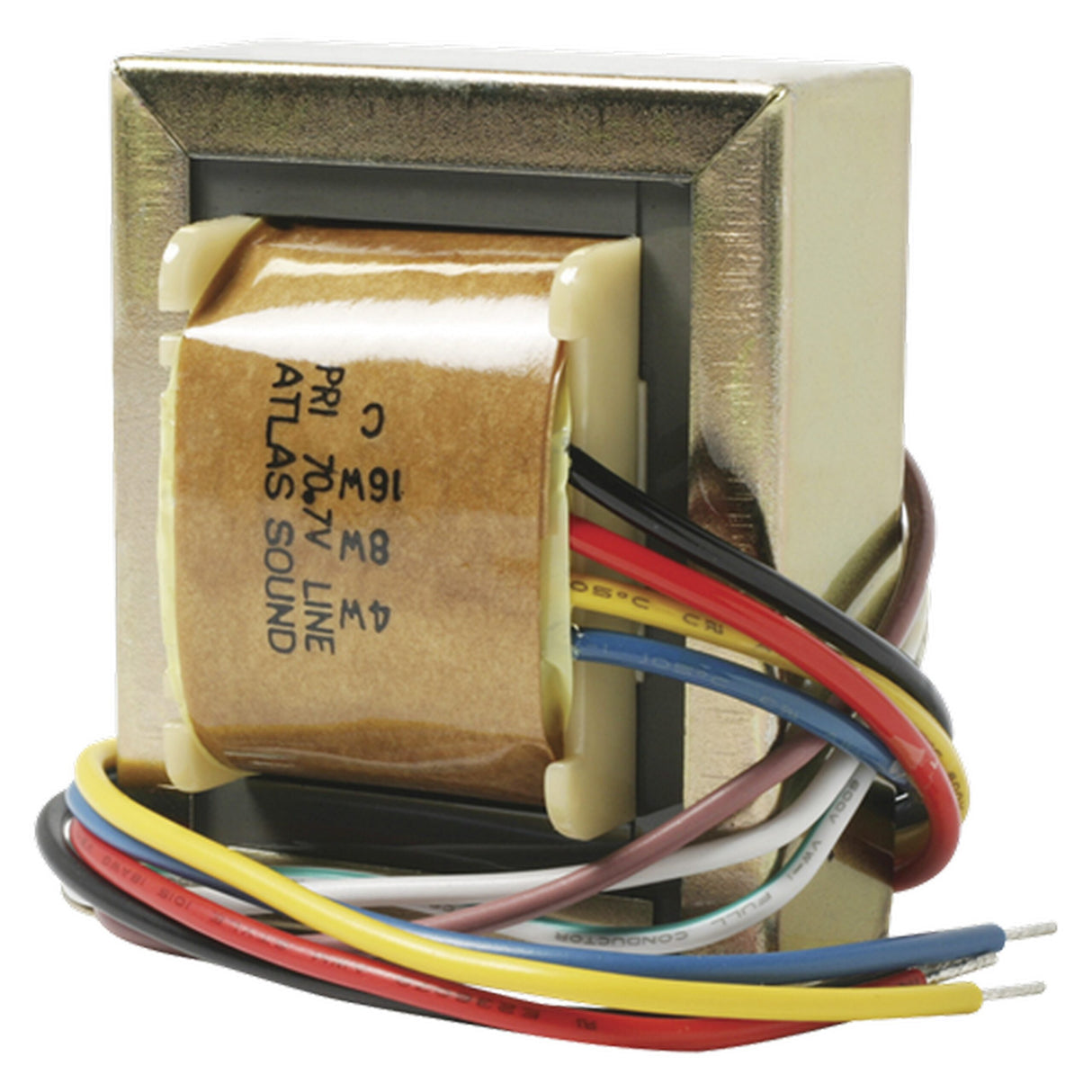

Atlas Sound HT167 High-Quality Transformer, 16W
Model HT167 high quality line matching transformer features 0.6dB insertion loss to assure efficient speaker matching in distributed 70.7-volt systems. Unit is constructed of audio grade laminations and has primary taps at 4, 8 and 16 watts. The secondary impedance is 4 and 8 ohms. Frequency response is +1dB from 40Hz - 15kHz.
Key Features
- Constructed with Audio Grade Laminations
- Frequency Response is 40Hz - 15KHz
- High Quality Matching Transformer with Only 0.6dB Insertion Loss
- Primary Taps of 4, 8, & 16 Watts
- Secondary Outputs Offer Both 4 & 8 ohm Impedance
Technical Specifications
Frequency Response
40Hz - 15KHz
Power Taps
4, 8 & 16 Watts
Power Rating
16W
Primary Voltage
70.7
Height
3 1/8" (7.9 cm)
Width
2 9/16" (6.5 cm)
Depth
1 3/32" (2.8 cm)
Shipping Weight
2.50 lbs (1.13 kgs)
