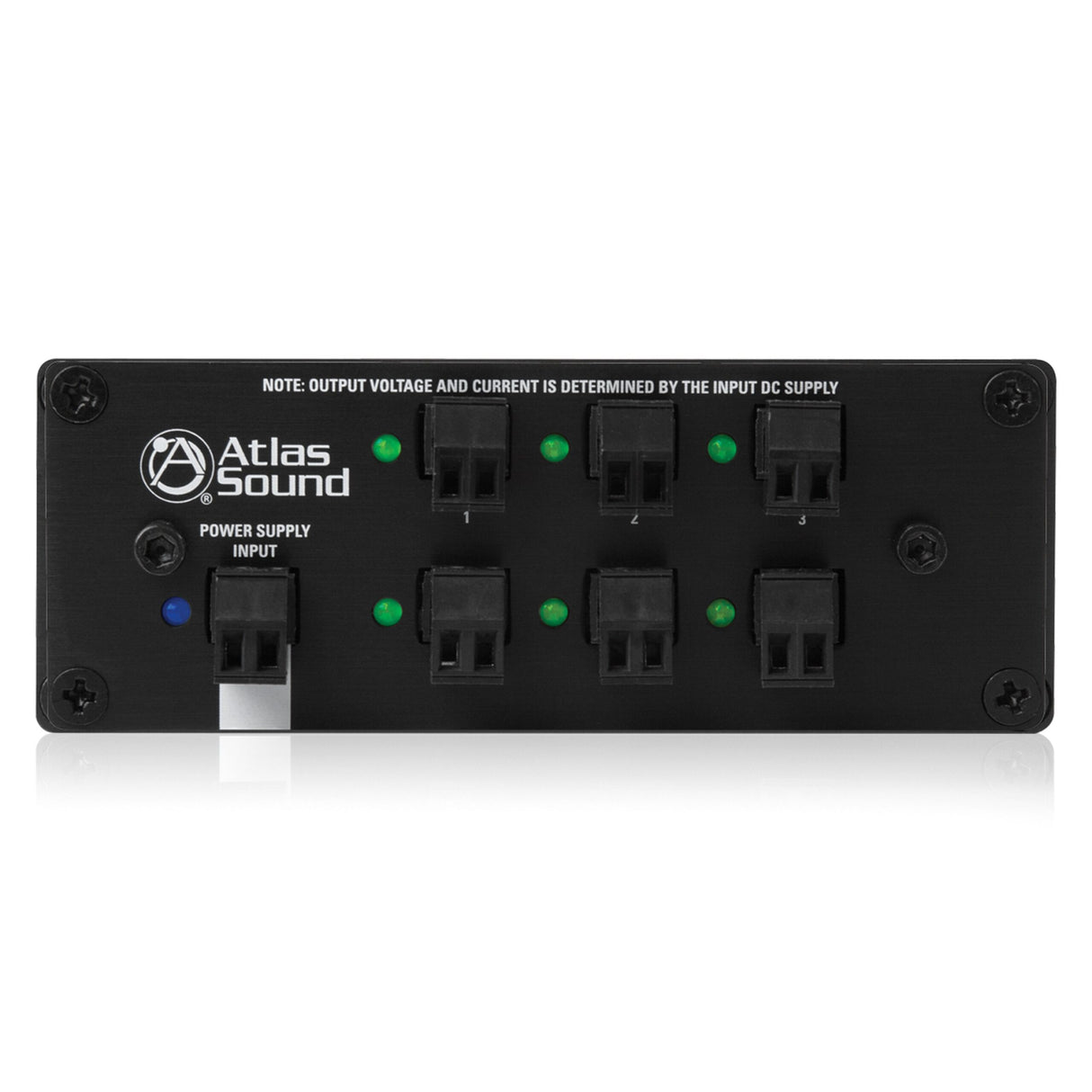

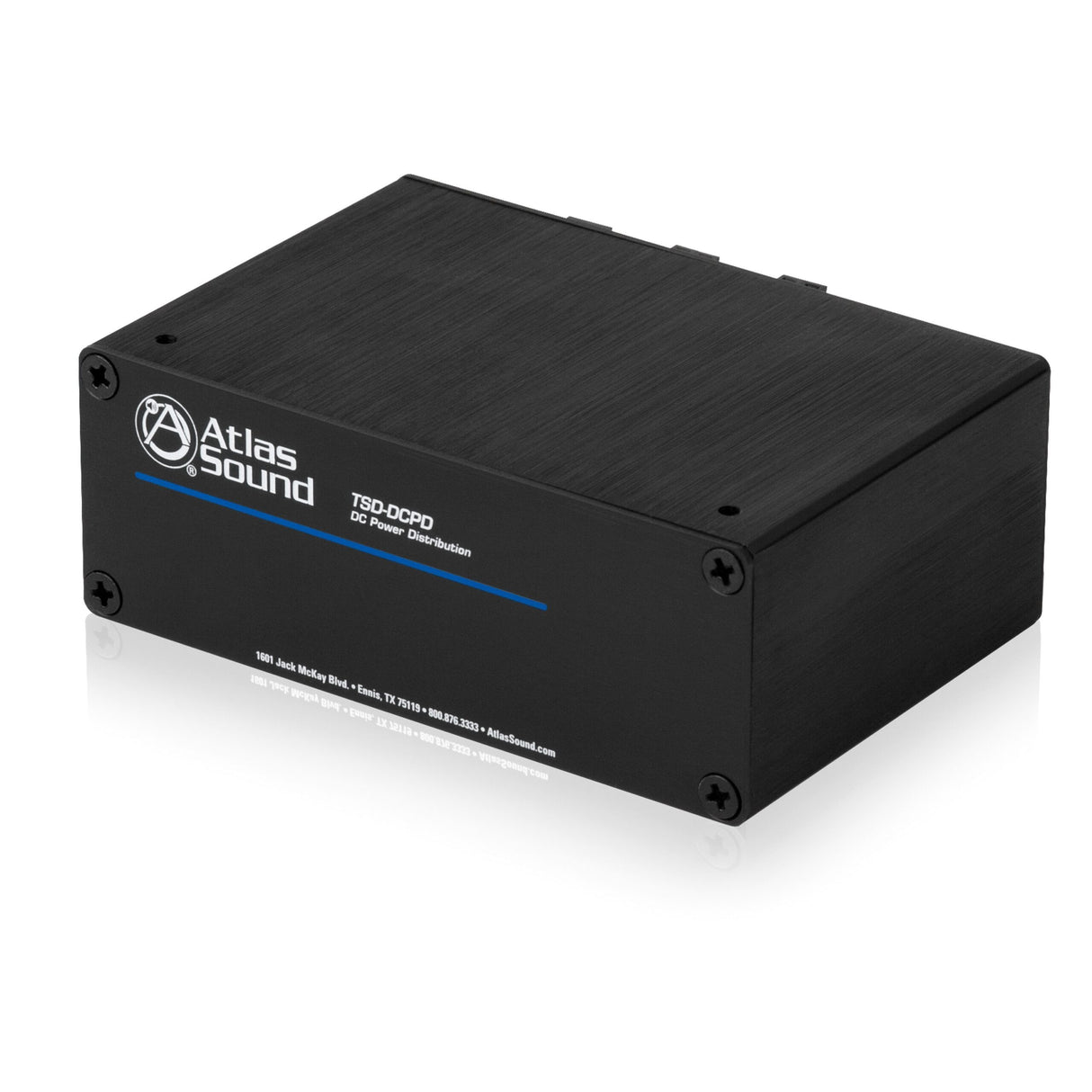

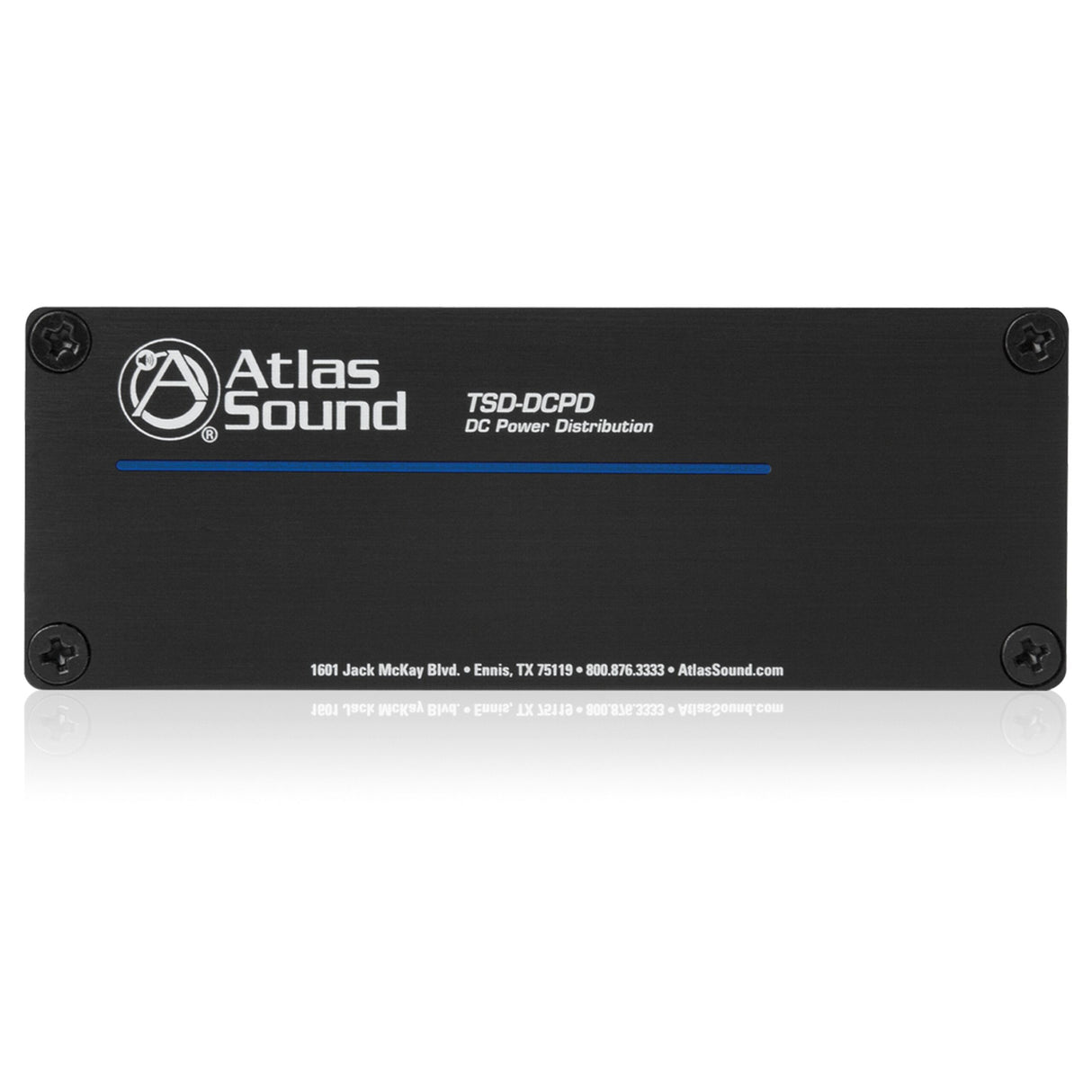

Atlas Sound TSD-DCPD DC Power Distribution
The TSD-DCPD is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. One 9-24V PSU input is distributed to 6 independent, isolated outputs. The compact TSD-DCPD will help remove rack clutter and free up power strip space.
Key Features
- Power Distribution for Up to 6 TSD's From a Single PSU
- 1 in 6 Out Configuration
- Six (6) Independent 9-24V Outputs
- DC Filtering and Isolation Per Channel
- 9 - 24VDC Input Voltage (Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required)
- Energy Efficient
Technical Specifications
DC Voltage Input
9V - 24V DC, 5A Max
Output Voltage
9V - 24V DC, Dependent on the DC Input Votage
Output Current
Power Supply Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulativ
Current Consumption. Use the TSD Power Calculator for Total Current Required.
Height
1.5" (3.81 cm)
Width
4" (10.16 cm)
Depth
2.5" (6.35 cm)
Weight
6oz., .165kg
