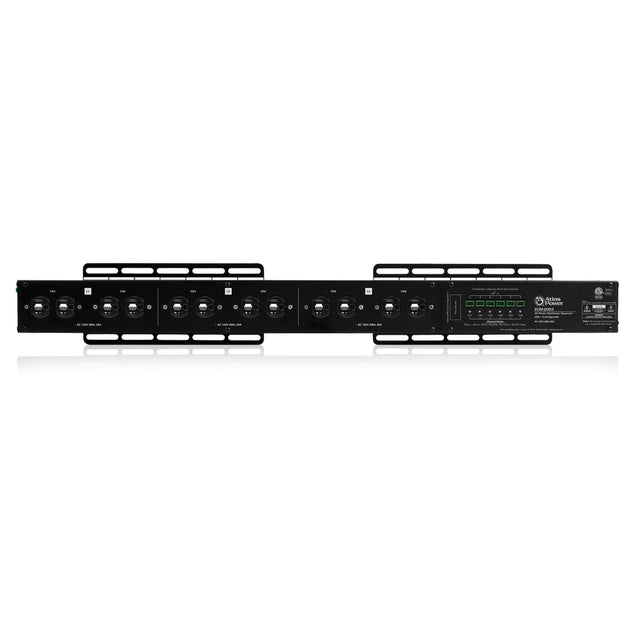

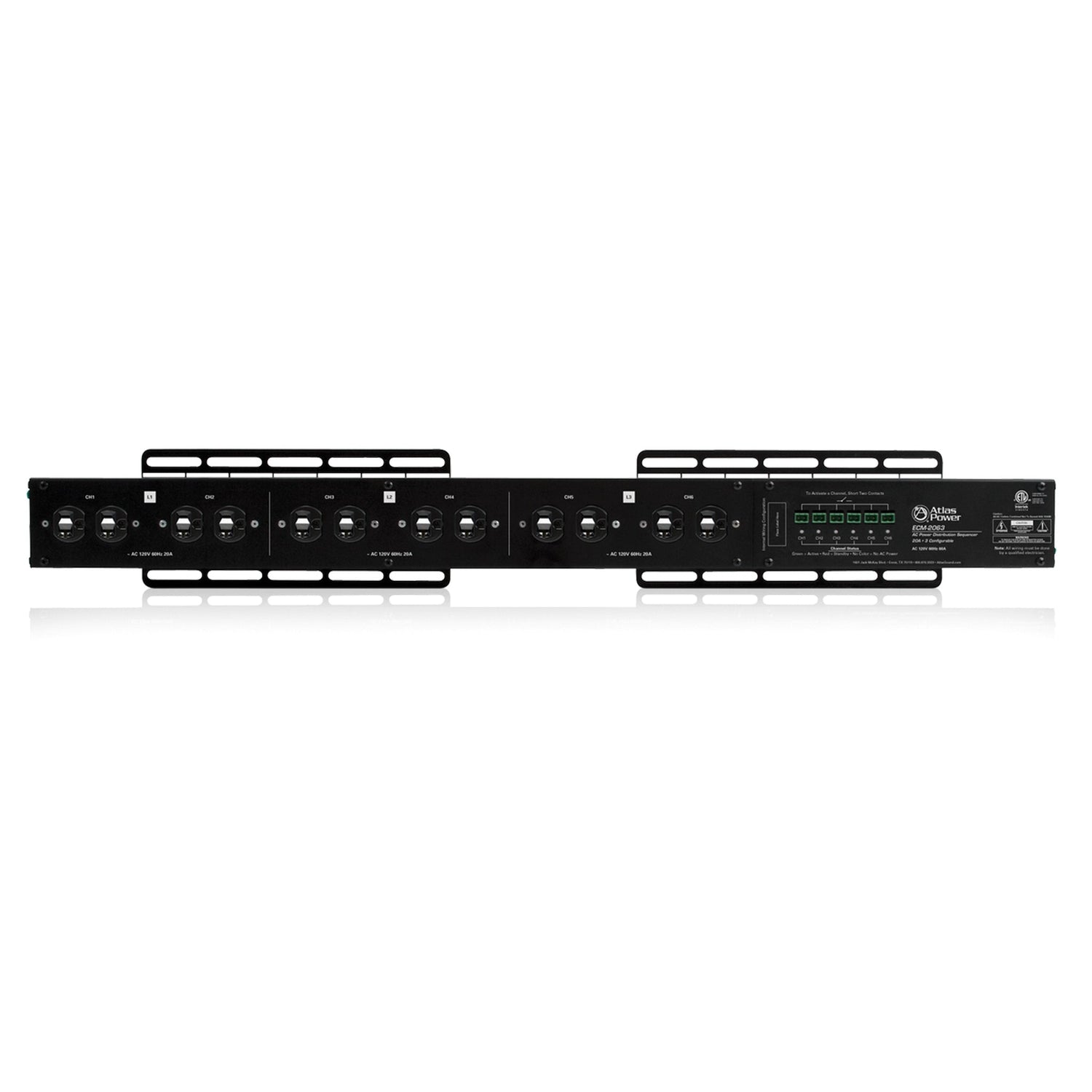

AtlasIED ECM-2063 Triple 20A Configuration AC Power Distribution Sequencer Raceway

The Atlas Power ECM-2063 is a 20A+20A+20A AC power distribution sequencer raceway designed to provide flexible, reliable, and efficient sequenced power for high‑performance AV, broadcast, or industrial systems. With six individually switched 120VAC outlet sections configured into three 20A circuits, this unit prevents inrush current, audible pops, and equipment stress during power up/down cycles by enabling controlled turning on and off in a specific order. Activation can be accomplished remotely via contact closure or locally with a switch or controller such as the Atlas Power TSD‑SEQ6.

Constructed with a sleek black textured finish, the ECM-2063 fits neatly into standard 48‑inch racks (37‑Inch high) and includes breakaway mounting rails and dual ½‑Inch & ¾‑Inch knockouts for easy conduit wiring. Its compact housing and modular layout make it ideal for installations in offices, schools, houses of worship, restaurants, and professional stage environments seeking professional-grade power sequencing.

Key Features

• 6 Separate 120V Outlet Sections
• 12 NEMA 5‑20 Switched Outlets
• Accepts up to Three 20A 120VAC Lines (Configurable)
• Bi‑color LEDs Indicate Stand‑By (Red) and Active (Green)
• Local or Remote Activation via Contact Closure or Sequence Controller
• Six Dual Knockouts (½‑Inch & ¾‑Inch) for Conduit Feed‑through
• Four Rail Mounting Tabs (Breakaway as Needed)

Technical Specifications

• Voltage: 120V AC, 60 Hz
• Load Capacity: 20A + 20A + 20A (Up to 60A Total)
• Power Consumption: 5.1 W Stand‑By, 11.3 W Active
• AC Outlets: 12 × NEMA 5‑20 (Switched)

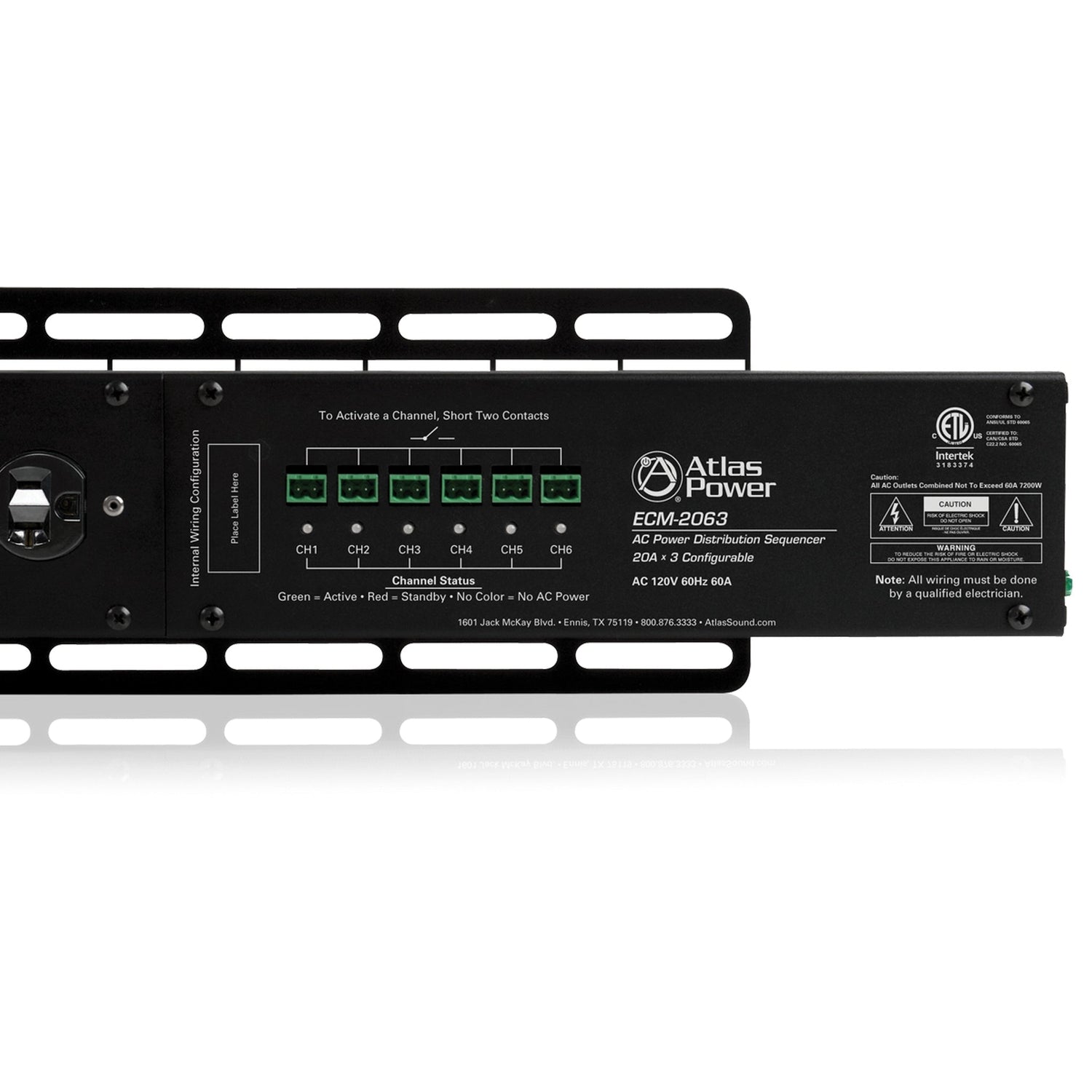

• Connectors: 6 × 2‑position Phoenix Euro‑block (3.5 mm spacing)
• Indicator LEDs: Incoming AC (Red), Active Outlet (Green)
• Safety Listings: ETL to UL 60065; RoHS Compliant
• Warranty: 12 months from date of purchase
