AtlasIED ECM-30 30A AC Power Module Spike Suppressor
The AtlasIED ECM‑30 is a professional-grade 30A AC power module and spike suppressor designed for both standalone operation and integration with the ECS‑6RM controller from up to 1000 ft away. Engineered for critical installations, this module provides exceptional protection against power anomalies with robust 6kV/3000A suppression capability and Extreme Voltage Shutdown (EVS) functionality when paired with an ECS controller.

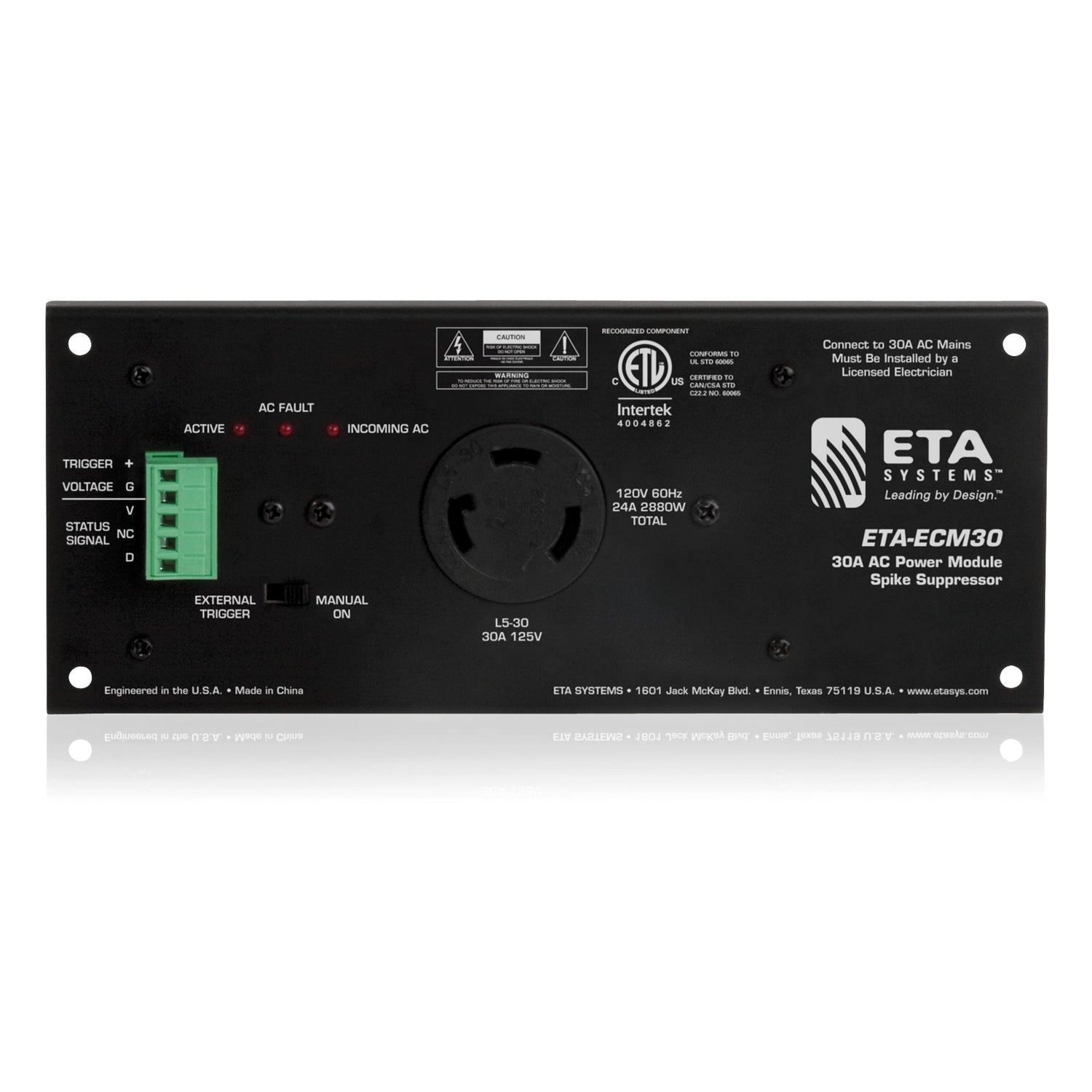

Ideal for AV rack systems and commercial environments, the ECM‑30 offers a single 30A outlet with clear LED indicators for AC status, active operation, and fault detection. Built to comply with ETL and UL 1449 standards, the unit delivers consistent performance and safeguards sensitive electronics in demanding power environments. It is compatible with ECM‑RACEWY1, ECM‑RACEWY3, or ECM‑RACEWY6 mounting enclosures for versatile installation.
Key Features
- Single 30A outlet for high-demand equipment
- Manual/Auto On/Off Switch for flexible control
- Incoming AC Present LED for power verification
- Active and AC Fault LED indicators for system status
- Clamping spike and surge suppression up to 6,000V
- Extreme Voltage Shutdown (EVS) when used with ECS‑6RM
Technical Specifications
- Current Rating: 30 Amps
- Power Requirement: 120V 60Hz
- Operating Voltage: 102‑132VAC
- Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
- Maximum Spike Clamping Voltage: 6,000V
- Power Consumption: 0.5 Watts
- Certified Safety Listings: ETL (UL 1449), CUL, CETL
- Warranty Period: 12 months from date of purchase
