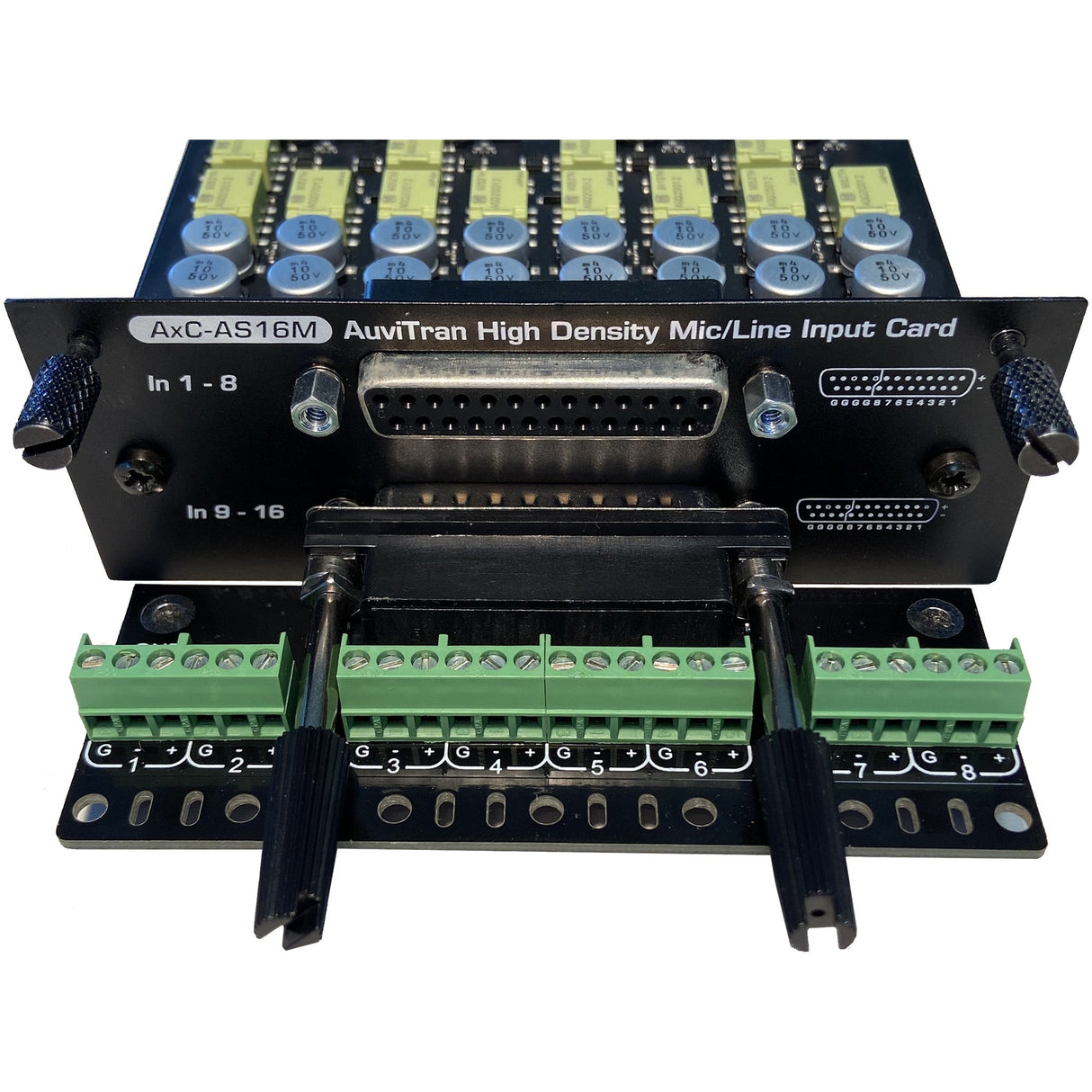

AuviTran AxC-AS16M v2 16-Input High Density Mic/Line Input Card for Audio ToolBox
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
AuviTran AudioToolBox AxC-AS16M
The AuviTran AudioToolBox AxC-AS16M is a high-performance audio signal processor designed to deliver exceptional quality and flexibility in professional audio settings. This advanced module features 16 channels of mic/line inputs, making it an ideal solution for complex audio setups in live sound, broadcast, and recording environments. With its integration into the AuviTran AudioToolBox platform, the AxC-AS16M provides robust performance and versatile connectivity to meet the demands of high-end audio systems.
The AxC-AS16M is designed for easy installation and operation, featuring a compact form factor that fits seamlessly into the AuviTran AudioToolBox rackmount system. Its advanced features include a wide range of input options, high-resolution audio processing, and comprehensive control capabilities. Whether you are managing live audio events or setting up a sophisticated recording environment, the AxC-AS16M offers the precision and reliability needed for top-tier audio performance.
Key Features
- 16 channels of mic/line inputs with high-density connectivity
- Supports sampling frequencies up to 96 kHz with 24-bit ADC resolution
- Balanced mic/line inputs with a wide analog gain range
- Remote management via AVS-Monitor for enhanced control
- Compact design compatible with the AuviTran AudioToolBox platform
- Compatible with Windows 10/11 (32-bit and 64-bit)
Technical Specifications
General
Size: 200 mm x 100 mm x 40 mm – AuviTran Audio ToolBox platform cards format
Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
Storage Temperature/Humidity: -5°C to 70°C / 0% to 95% (non-condensing)
Operating Temperature/Humidity: 0°C to 50°C / 5% to 90% (non-condensing)
Connectors: 2x female DB25 connectors
Optional: DB25 to Euro-Block plug available
Audio Inputs
Number of Inputs: 16 Mic/line inputs
Sampling Frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
ADC Resolution: 24 bits
Input Specification: Balanced Mic/line
Input Maximum Level: +24 dBu
Audio Inputs MIC / Line Technical Specifications
Analog Gain Range: 0 to +80 dB (0.5 dB step)
Input Sensibility: +24 dBu to -56 dBu
Input Impedance: 2.7 kΩ (differential)
E.I.N. @ (Rs=150Ω, G=+80dB): -126 dBu
Dynamic Range: > 115 dB A-weighted (> 112 dB un-weighted)
THD+N (1 kHz): < -90 dB
Frequency Response: 20 Hz – 20 kHz +/- 0.2 dB
Phantom Power: +48 V (individually controllable for each channel)
Integration Environment
Audio ToolBox Platform: AxC-AS16M is a high-density Mic/line card for the AuviTran Audio ToolBox platform
AVS-Monitor: Enables remote setting, control, and monitoring of IP, Dante, AVB networks. Provides enhanced control pages for managing the AxC-AS16M card's specific parameters
OS Supported: Windows 10/11 for 32-bit and 64-bit versions
