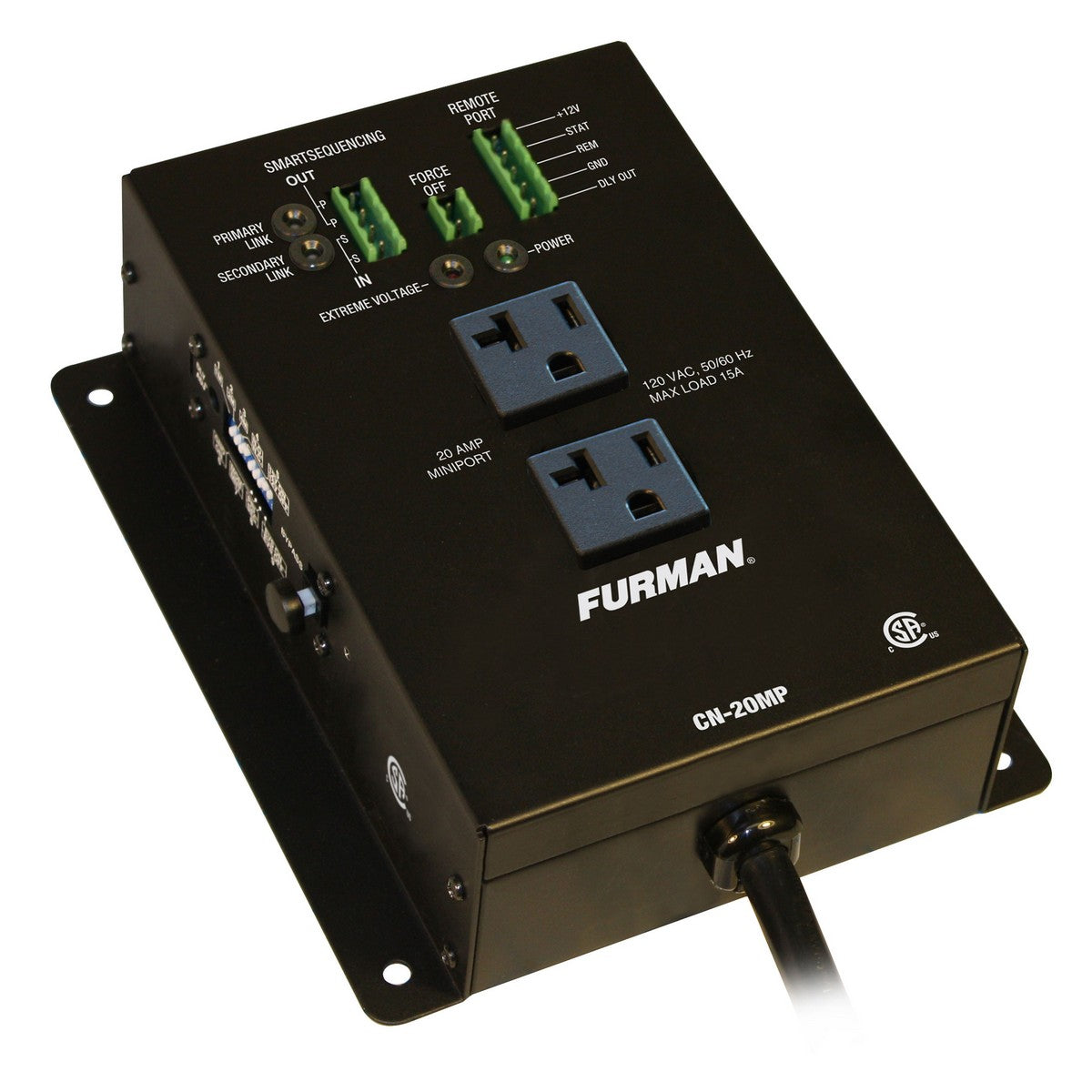

Furman CN-20MP 20A Remote Duplex EVS Smart Sequencing 10 Feet Cord
Furman’s Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.
DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.
Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (SmartSequencing from CN-1800S or CN-2400S).
The CN-20MP can shut itself off automatically when triggered by a fire alarm.
Key Features
- SmartSequencing
- Voltage Protection
- BlueBOLT Compatible
- Diagnostic Lights
- 20 Amp Output Current
- DIP Switch Customization
Technical Specifications
AC Voltage Input Range
90-139VAC, 50/60Hz
Maximum AC Current Rating
20 Amps (No Breaker)
AC Cord
3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug
AC Receptacles
2 NEMA 5-20R’s (1 duplex)
Surge/Under-Overvoltage Protection
AC Undervoltage Protection: EVS, 77VAC+/-3VAC
AC Overvoltage Protection: EVS, 140VAC+/-5VAC
AC Overvoltage Reset Modes: Enabled and disabled (configurable via DIP Switch #9)
Operating Temperature Range
5C (40F) to 40C (105F) degrees
Humidity Range
<90% rH (Relative Humidity)
