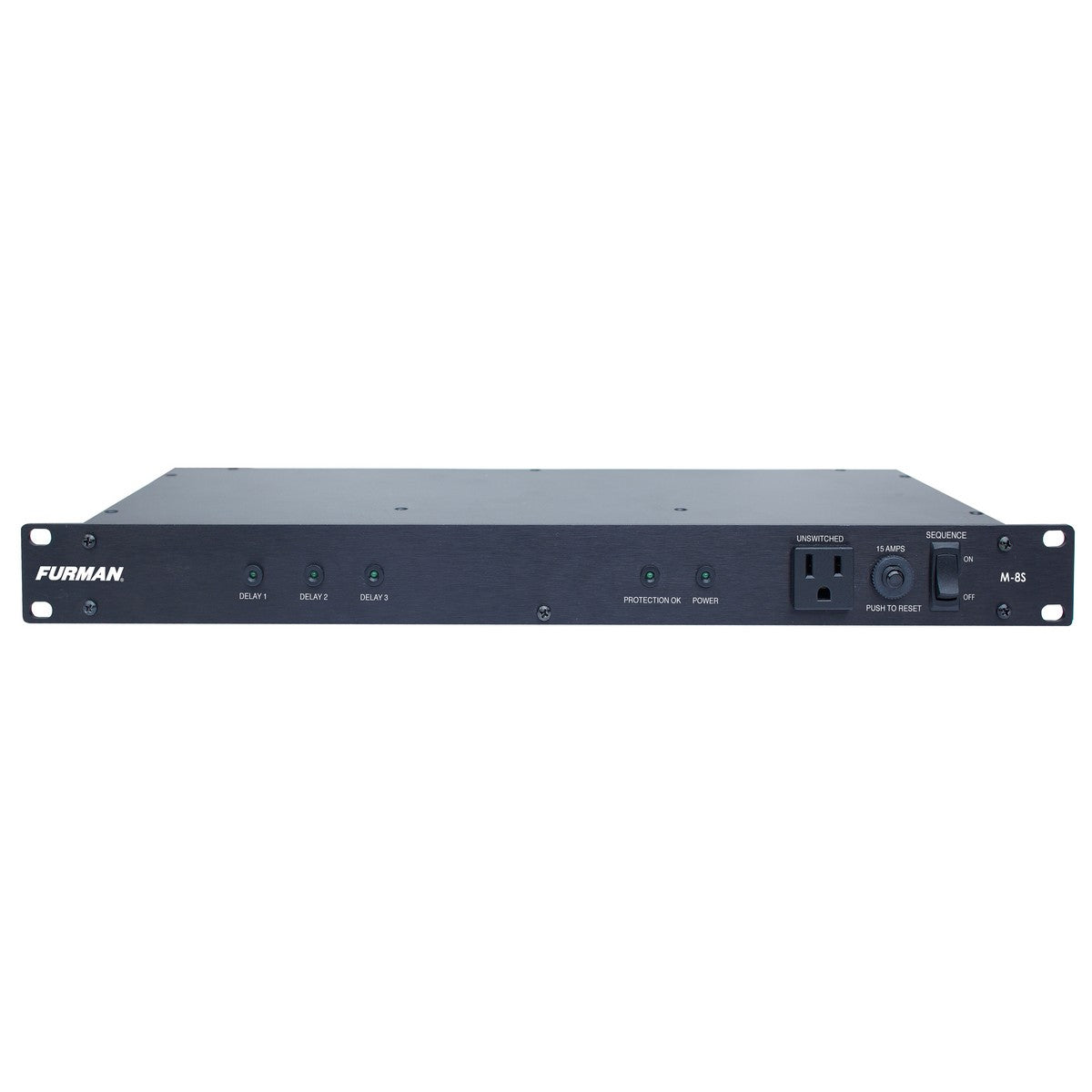

Furman M-8S 15A Standard Power Conditioner with Power Sequencing 9 Outlets 1RU 10 Feet Cord
Merit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system. Install an M-8S in your rack, and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load.
Key Features
- Standard level AC protection and filtering.
- Six sequenced rear panel outlets (in 3 groups), two unswitched rear panel outlets, and one front panel unswitched outlet.
- Momentary and Maintained sequencing via rear panel terminal block or front panel switch (momentary only).
- All settings and configurations available on rear panel.
- 15 amp rating.
- Three year limited warranty.
Technical Specifications
Maximum Output Current:15 amps, 120 VAC (Thermal breaker)
Line Cord:14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug
AC Receptacles: Convenience Outlet (Front Panel) 1 Un-switched NEMA 15-5R
Rear Panel Outlets: 2 Un-switched NEMA 5-15R (1 duplex),
6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)
Standard level AC Surge Protection:Merit Class (sacrificial)
Spike Protection Mode : Line to neutral, zero ground leakage
Max Continuous Operating Voltage :130V RMS
Max Clamp Voltage :500 Volts Peak
Peak Impulse Current :12,000 Amps
Energy Rating (2 X 820μS) :225 Joules
AC Filtering :Standard level Pi LCR Filter
Noise Attenuation :>26dB, 100 Khz to 1 MHz
Operating Temperature Range : 5C (40F) to 40C (105F) degrees
Humidity Range :<90% rH (Relative Humidity)
Rocker Switch : Front panel, Sequence (ON, OFF)
Thermal Circuit Breaker :Front panel, push to reset
Front Panel Indicators : Delay 1, Delay 2, Delay 3, Power, Protection OK
Rear Panel DIP Switches :12V Mode On/Off, GND Mode On, Momentary/Maintained
Potentiometer : Rear panel, time calibration fine tune delay adjust
Remote Terminal :+5-30VDC In, 12VDC (12mA) Out
Remote Terminal :Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Dimensions :19"L x 8.75"D x 1.75"H â?“ ANSI 1RU
Weight :7 lbs.
Power Consumption :5 Watts
Safety Agency : C/CSA/US
