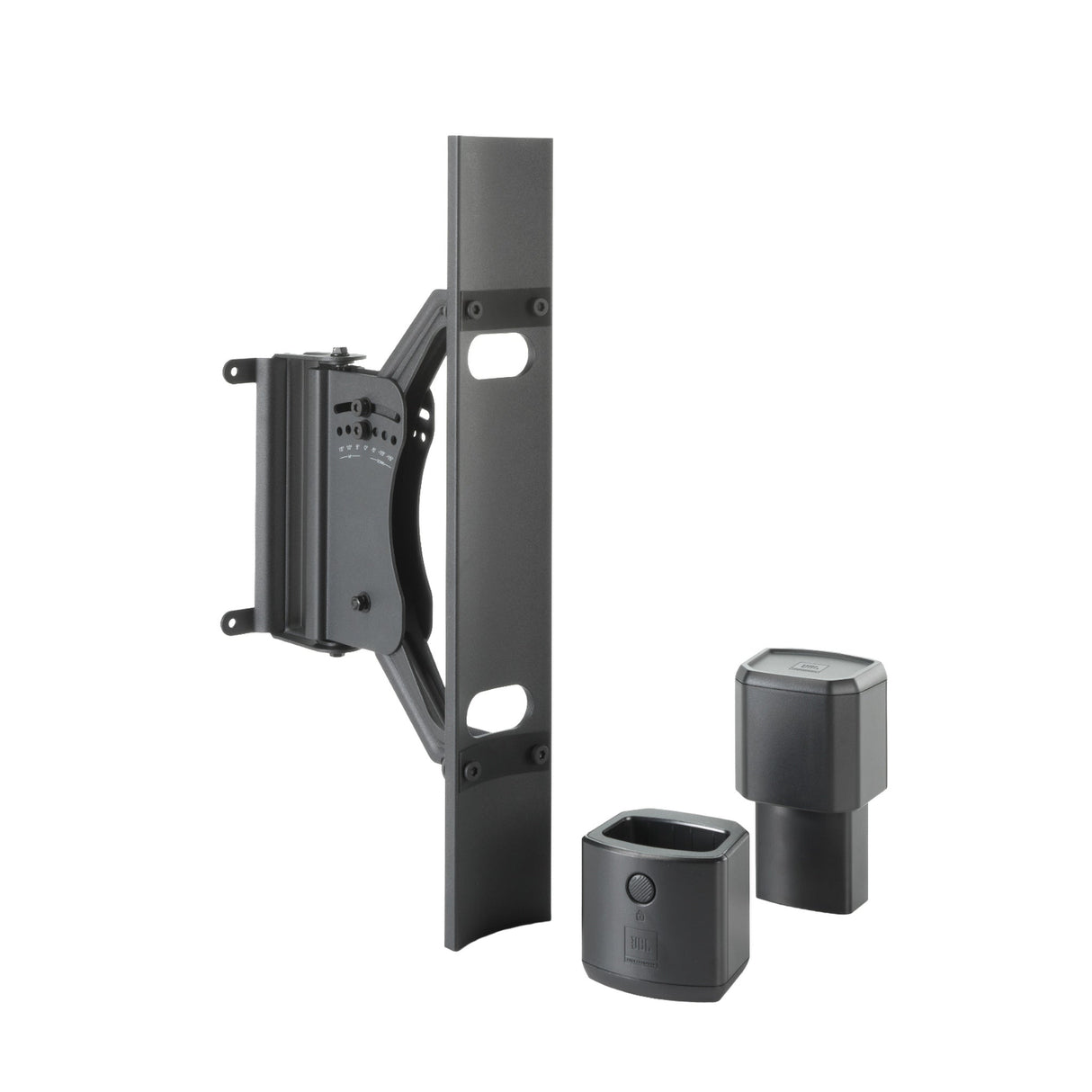

JBL PRX ONE Wall-Mount Bracket Adapter Kit

JBL JBL-PRXONEINSKIT PRX ONE Wall-Mount Bracket Adapter Kit

Professional wall/truss mounting kit engineered for the JBL PRX ONE column PA. Ideal for installations where the array must be aimed precisely while keeping standard pro-audio cabling. Provides preset and continuously variable tilt plus side-to-side swivel for accurate coverage.

Multi-angle design offers seven preset tilt positions (−15° to +15°) and a slot for fine adjustment. A swivel-tilt wall bracket interfaces with an array bracket and connection plate, and supports standard speakON cabling—no proprietary connectors required. Robust, black-finish hardware is optimized for the size and weight of the PRX ONE array in installed applications.

Key Features

• Mounting Flexibility: Wall or truss mounting with swivel-tilt wall bracket and array bracket.
• Precise Aiming: Seven preset tilt steps from −15° to +15° plus a slot for continuous adjustment.
• Side-to-Side Swivel: Up to 90° (limited by wall clearance in some tilt positions).
• Standard Connectivity: Supports standard speakON connectors for easy amplifier runs.
• PRX ONE Compatible: Designed specifically for the JBL PRX ONE column array.
• Finish: Black.

Technical Specifications

• Compatibility: JBL PRX ONE column array
• Tilt Range: −15°, −10°, −5°, 0°, +5°, +10°, +15° (plus continuous slot)
• Swivel: Up to 90° before wall interference
• Dimensions (panel L × W): 25.5 × 19 in (64.8 × 48.3 cm)
• Weight: 10.5 lb (4.76 kg)
• Finish: Black
• Model / UPC: JBL-PRXONEINSKIT / 691991035418

What’s Included

• Swivel-tilt wall bracket
• Array bracket
• Connection plate
• Assorted mounting hardware: M6 bolts (L27, L36, L9), M6 nuts, lock washers, and flat washers
• Installation guide
• Note: Wall anchors/fasteners for attaching the wall bracket to the wall and a safety cable are not included.
