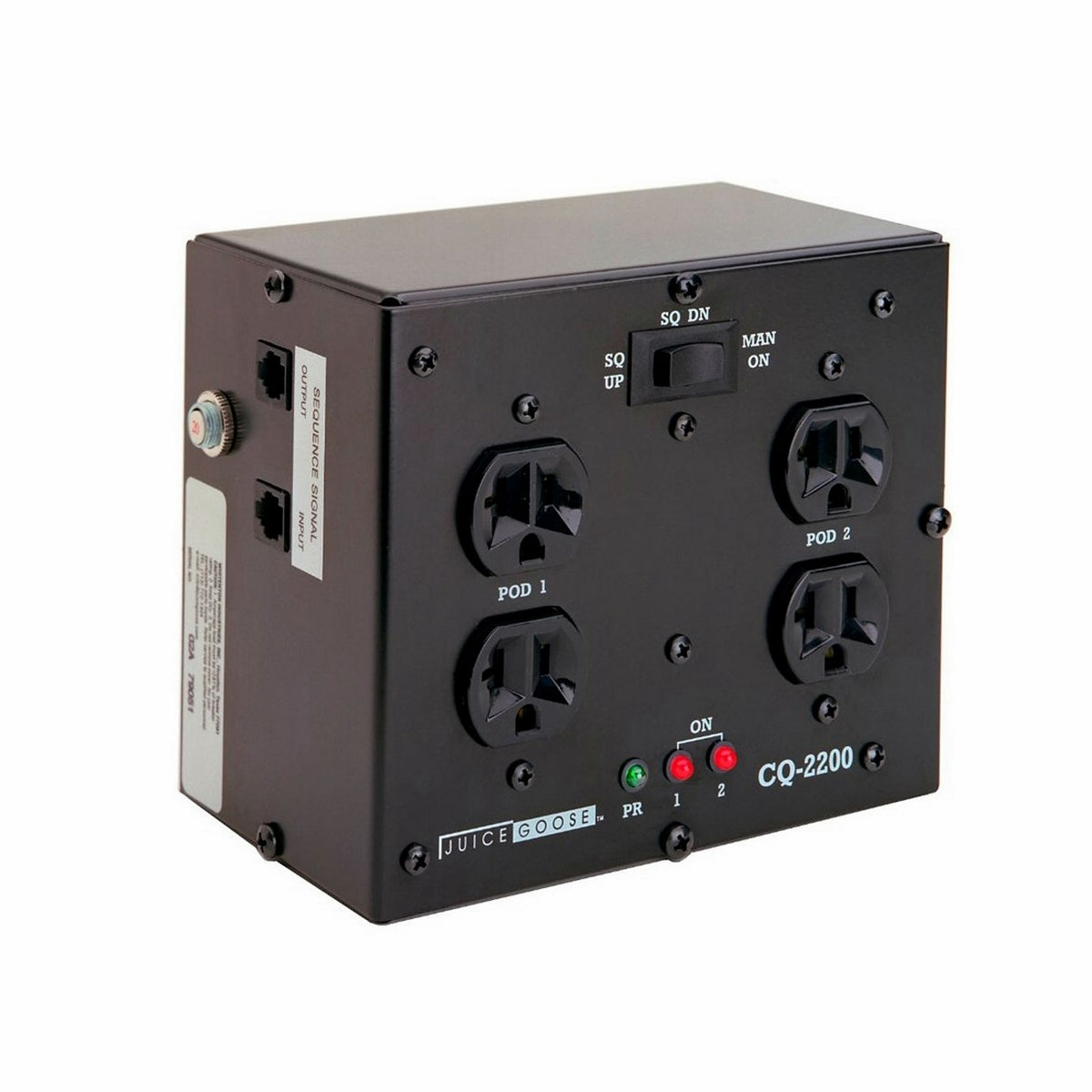

Juice Goose CQ 2200 Dual Sequenced 20 AMP Power Distribution System
Dual Sequenced 20 AMP Power Distribution System with Remote Control Capability
The Juice Goose CQ-2000 and CQ-2200, along with the other products in the CQ Series, provide a versatile and powerful means of remotely activatin g AC power in a sequenced array fo r application to both sensitive and high amperage equipment. CQ Series products need no additional controllers. Each contains the circuitry to be activated by a simple contact closure and to perform in coordination with other CQ devices. All power down sequences are exact reversals of the power up wequences.
Key Features
- Easily controlled by way of either 8 wire, RJ-45 or 6 wire, RJ-12 cable.
- Each CQ has a Sequence Signal Input and Output connector on the chassis.
- Two duplex receptacles, each with its own preset turn on and off timing.
Technical Specs
Chassis
16 gauge steel mounts through holes in back box
Dimensions
5.5H x 6.4W x 3.75D
Weight
5 lbs
Circuit Breaker
20A thermal on side of the chassis
Relay Current Rating
30A
Number of Sequence Events
CQ-2000 one, CQ-2200 two
Power Input
Hard wire through strain relief on back box
Power Output, NEMA 5/20R
CQ-2000 two, CQ-2200 four
Input Voltage
US standard (120 VAC @60Hz)
Signal Connections
Either RJ-45 eight wire or RJ-12 six wire cable
Monitor Features
Monitor lights correlate to processor and relay operation
