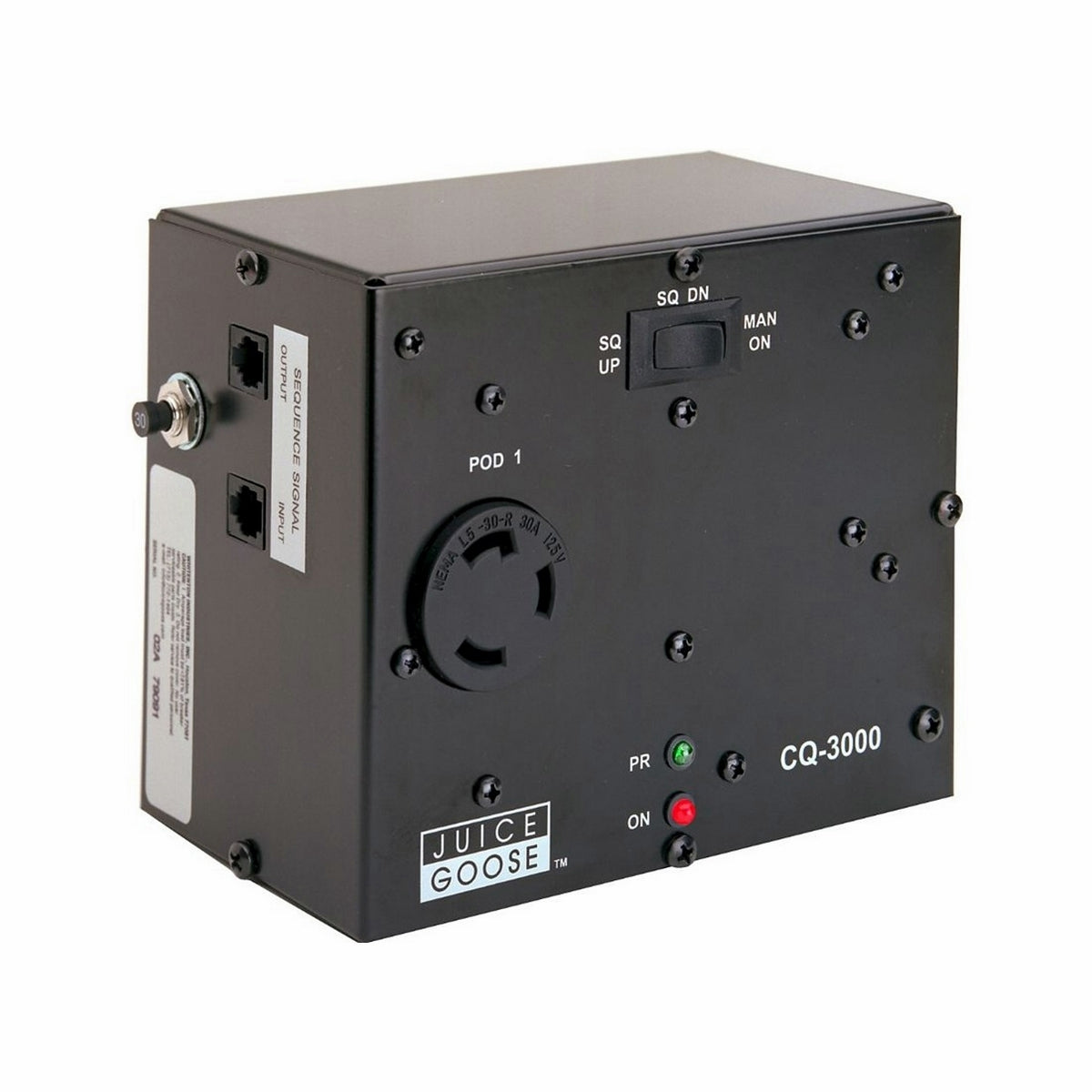

Juice Goose CQ 3000 30 AMP Power Distribution System with Remote Control Capability
Thirty AMP Power Distribution System with Remote Control Capability
The CQ-3000 is necessary for high current, low frequency amplifier control. The same size as the CQ-2000, this product integrates seemlessly with the other CQ products. It fits anywhere in a chain of sequencers, but is usually located at the end of the system - the last on and the first off.
The CQ-3000 features a single 30 amp twist lock connector (NEMA L5-30R). Power control uses a high current relay with large inrush current handling capability. AC mains are attached to the CQ3000 with a hardwire connection to a terminal block inside the chassis. Other features include a 30 amp thermal circuit breaker, a master sequence activation and override switch and operation indicator LED's.
Key Features
- Three position switch on the front of the chassis
- This switch is active only if there is no control cable on the Sequence Signal Input connector
- Switch allows the unit to sequence up or sequence down
- Manually operated, overriding the control circuit in the unlikely event
Technical Specs
Chassis
16 gauge steel mounts through holes in back box
Dimensions
9.0H x 6.W x 4.0D
Weight
6 lbs
Circuit Breaker
30A thermal on side of the chassis
Relay Current Rating
50A
Number of Sequence Events
One
Power Input
Hard wire through strain relief on back box
Power Output
One NEMA LS-30R
Input Voltage
US standard (120 VAC @60Hz)
Signal Connections
RJ-12 six wire cable
Monitor Features
Monitor lights correlate to processor and relay operation
