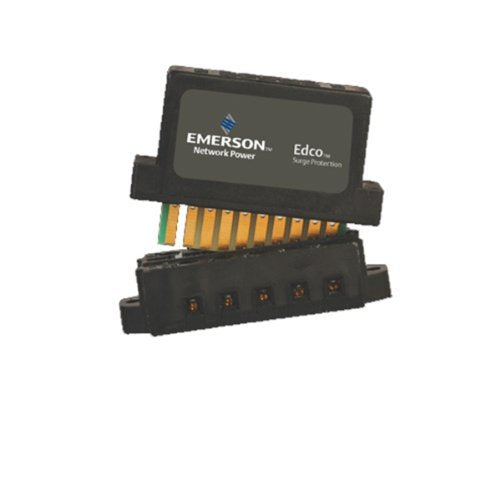

Juice Goose PC2 TeI Two-Line Telephone Interface Protector Module
The Edco PC2-TEL is a solid state, two-line telephone interface protector module. This unit is specifically designed to protect both phone lines required by commercial fire panels.
Key Features
- Tip-to-ring protection
- Tip- and ring-to-ground protection
- Over-current protection
- Resettable solid state fuses PTC
- UL listed 497A
- Requires PCB1B base
- PC642PTU (Pass Thru Unit) available for trouble shooting
Technical Specs
Maximum Operating Voltage
250VDC
Clamping Voltage
270VDC
Operating Current
0.15A
Peak Surge Current
160A
Frequency Range
0 to 20 MHz
Insertion Loss
<0.1dB at 20 MHz
SPD Technology
Series PTV and Silicon Avalanche Diode (SAD)
Connection Type
Terminal Block with Compression Lugs Terminals Accept up to 10 AWG
Operating Temperature
-40°C to +85°C
Dimensions (inches)
2H x 1W x 2.5L
Weight
1oz
