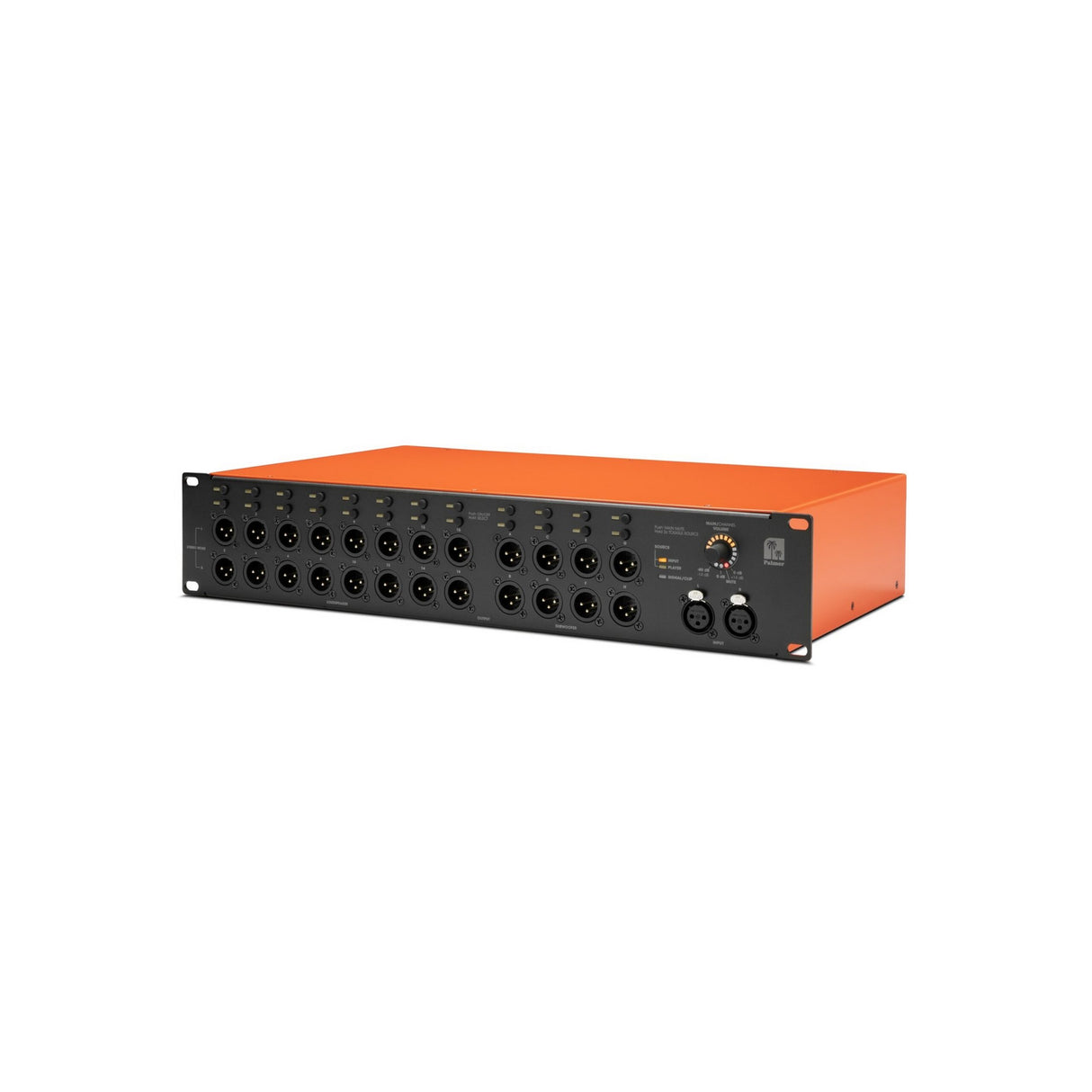

Palmer Grand Audition MKII 24-Channel Loudspeaker Switching System
Comfortable loudspeaker routing with variable level control for an uncompromising comparison on the sales floor, along with multi-monitor and multi-room applications, are just some of the ways the GrandAudition MK2 can be effectively put to use. GrandAudition MKII lets you connect 16 individual loudspeakers or eight loudspeaker pairs and up to eight subwoofers - all with balanced line-level XLR connectors and housed in two 19" rack units. Depending on how you want to use GrandAudition MK2, the outputs can be selected either individually or as stereo pairs via an intuitive browser-based app or from the unit itself.
Key Features
- 24 switchable balanced line outputs
- Intuitive browser-based control software
- Individual level control on each output
- Mono and stereo modes
- Multiple channel selection
- High-quality analogue signal path
- Instant channel switching with no noise or interference
- XLR line inputs and built-in USB media player
- Up to three devices cascadable
Technical Specifications
Product type
Switches
Type
Analog
Signal processing
Analog
Ethernet Functions
Yes
Inputs
2 x balanced
Outputs
24 + 2 balanced
Controls Front panel
1 x Encoder pushbutton , 24 x pushbutton
Display elements front side
2 x signal source LED (XLR / Player , Dual-color signal/clip LED , LED ring for main/channel volume with 0dB and mute LED indicator
Front Panel connectors
2 x XLR 3 pin female , 24 x male XLR socket
Controls Element Back Panel
mains voltage selector , Power On/Off , reset
Connections rear side
2 x XLR , 2 x XLR 3 pin female , 3-pole IEC mains connection (mains socket) , Micro-USB for service purposes , RJ45 (Ethernet) , USB stick
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Fuse
T 630 mA 250V
Power consumption
65 W
Ambient temperature (in operation)
0 - 40 C
Installation Height
19" / 2 U
Dimensions (W x H x D)
482,6 x 89,4 x 282,3 mm
Housing material
Metal
Cabinet surface
Powder-coated
Weight
5,7 kg
