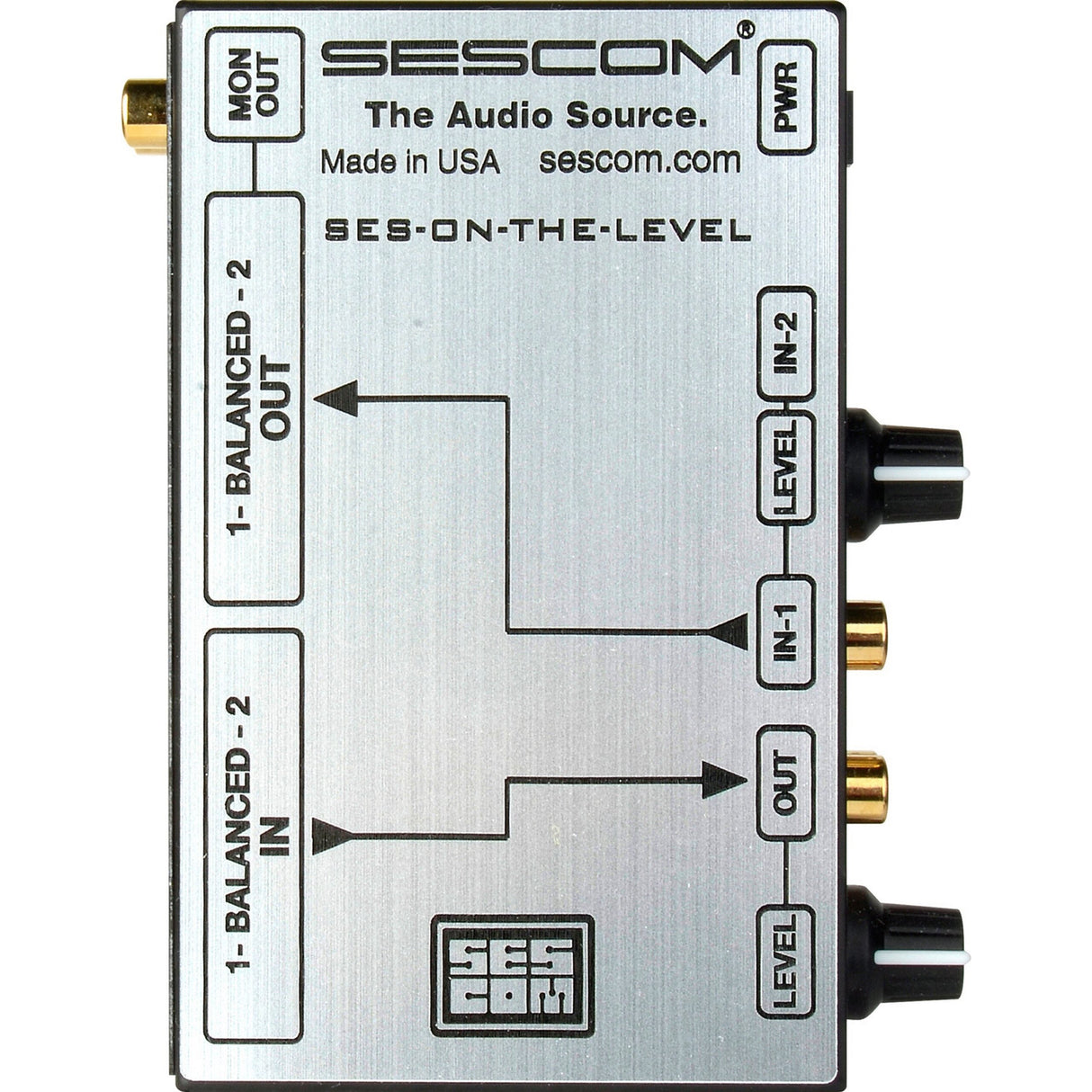

Sescom SES-ON-THE-LEVEL RCA to XLR Audio Level Converter with Level Controls
The SES-ON-THE-LEVEL is a feature rich, bidirectional balanced to unbalanced audio level converter with level controls. The product is provided with XLRs for Balanced I/O and RCA for Unbalanced I/O. The SES-ON-THE-LEVEL also features a 3.5mm (1/8”) stereo audio input that's compatible with iPod & similar MP3 players. Balanced line outputs (L/R RCA) are also provided to feed a stereo amplifier for real time monitoring.
The SES-ON-THE-LEVEL has an output for monitoring and confirming either direction, without disturbing the conversion. 12VDC powered - AC adapter included.
Rugged, all metal cabinet. 3” x 5” x 1.5”.
Key Features
- Stereo balanced line level controller
- Stereo Direct Box
- Stereo RCA to stereo XLR
- Stereo Level control for each channel
- 3.5mm Headphone level to line level adaptor
Technical Specifications
Input Impedance
RCA: 100k Ohm, XLR: 10 k Ohm, 3.5mm stereo: 10k Ohm
Output Impedance
RCA: 100 Ohm, XLR: 100 Ohm balanced
Max Out: Balanced
+18 dB / Unbalanced: +12 dB
Max In
Balanced: +22 dB / Unbalanced: +22 dB
Gain @ +4 dB in
-8 dB
Gain @ -10 dB in
+ 20 dB
Noise Floor
-88 dB
THD
.003%
Power
15 VDC adapter (Please note the center is negative)
Weight
1 lbs. (.45 Kg)
Warranty
1 Year
