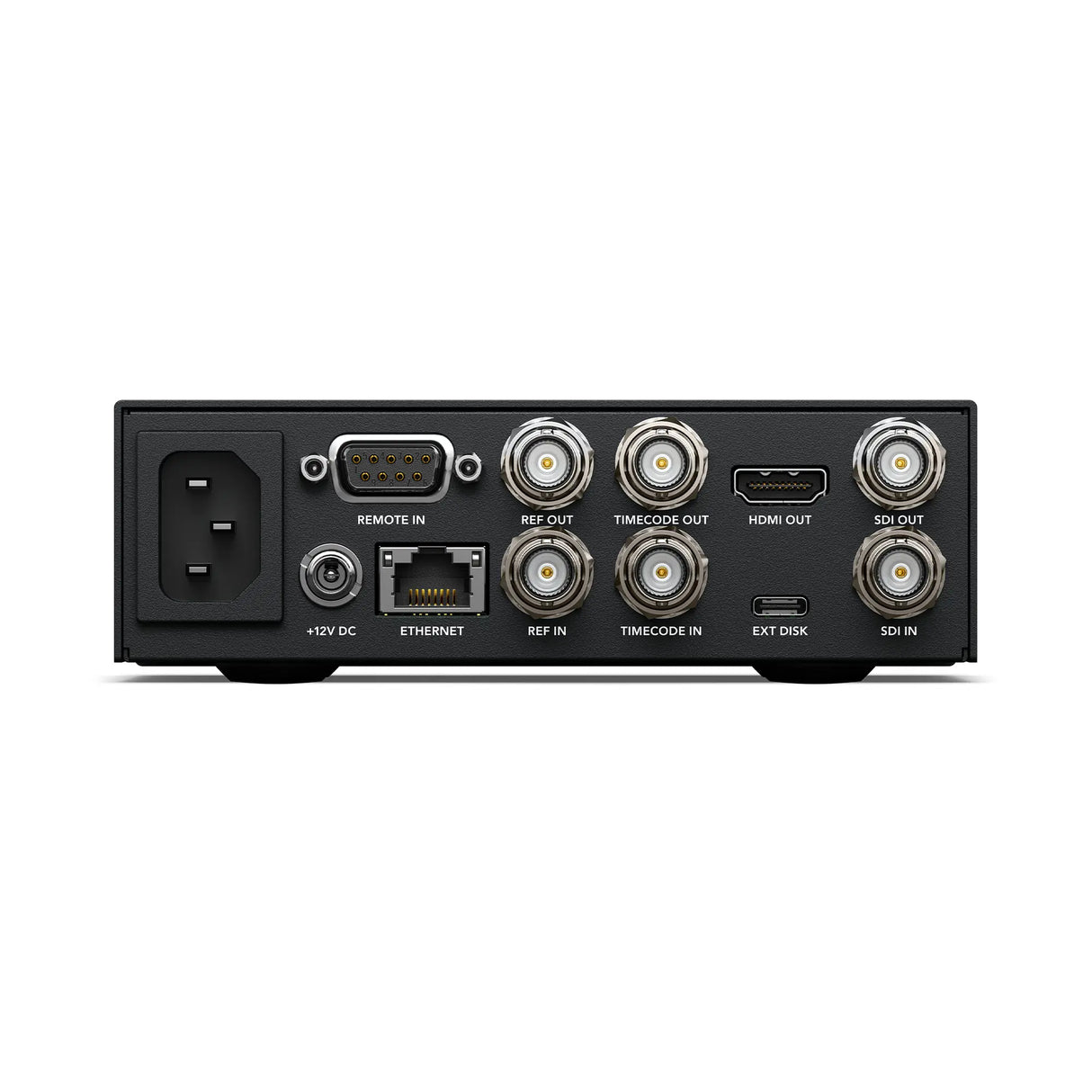

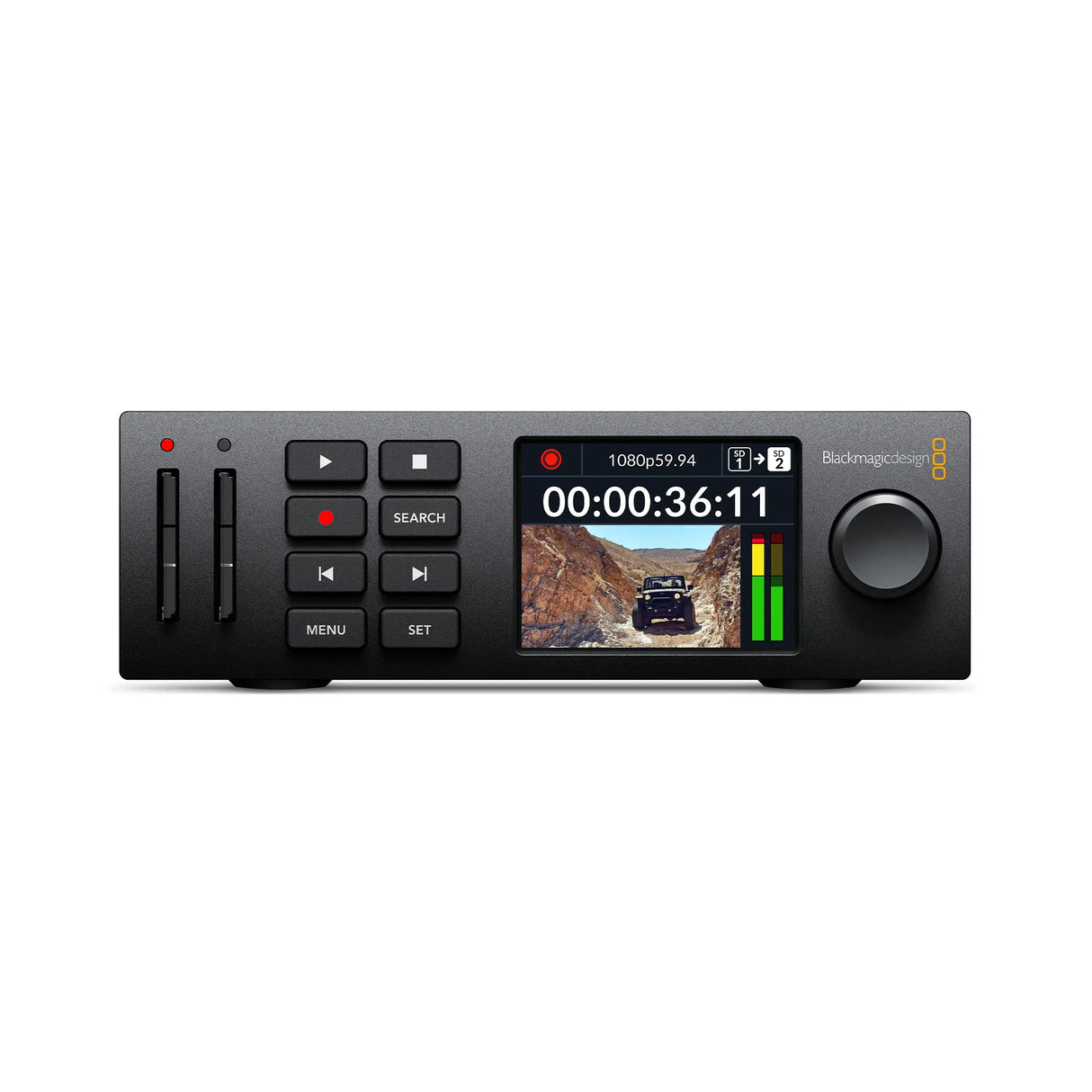

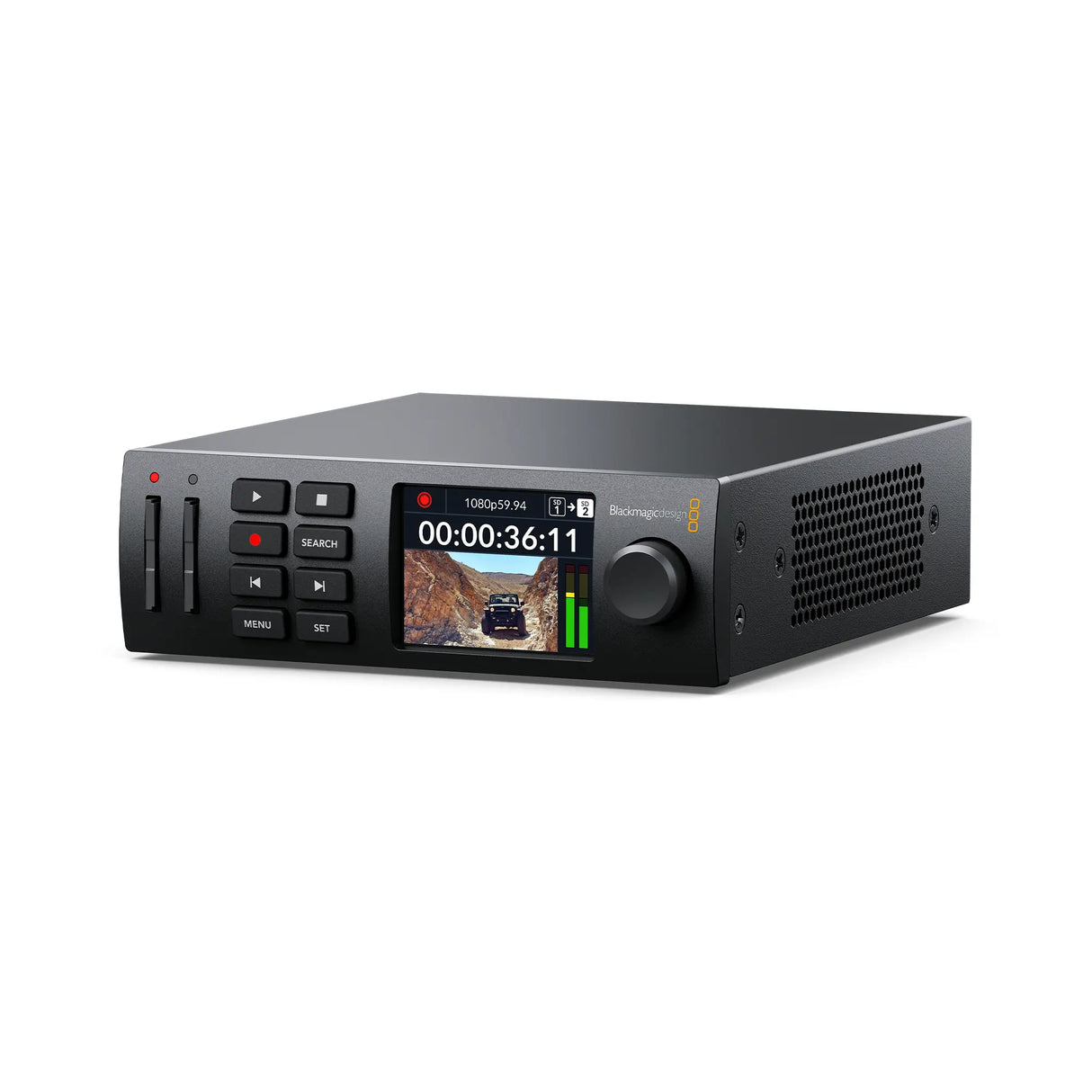

Blackmagic Design HyperDeck Studio HD Mini
The Blackmagic Design HyperDeck Studio HD Mini is an incredibly versatile and compact broadcast recorder, designed in the Teranex Mini form factor. This allows for a modular design that seamlessly integrates into professional broadcast setups. With the ability to rack mount up to three units in a single rack, you can combine it with other essential devices such as switchers, converters, or streaming processors. Despite its compact size, the HyperDeck Studio HD Mini packs a punch with a range of advanced features suited for high-end broadcasting needs.
Perfect for live production, recording, and playback, the HyperDeck Studio HD Mini offers a variety of input and output options, including 3G-SDI, HDMI, and USB Type-C. The dual SD card slots allow for continuous recording, switching automatically to the second card when the first is full. With built-in sync and timecode generators, this device ensures seamless integration with other broadcast equipment, making it an essential tool for professional video workflows. The front panel controls and the option for both AC and DC power inputs make it extremely user-friendly and adaptable to different environments.
Moreover, the HyperDeck Studio HD Mini is also versatile enough to work as a webcam when connected via USB to a computer. This feature makes it the perfect solution for on-the-go live streaming, webinars, and other digital content creation. All these functionalities are wrapped in a compact, yet robust design that can easily fit into a standard broadcast rack or sit unnoticed on your desk.
Key Features
- Compact Teranex Mini form factor
- 3G-SDI in and out, HDMI output
- Dual SD card slots for continuous recording
- Built-in sync and timecode generators
- Front panel controls
- Works as a webcam via USB connection
- Supports multiple video standards including 2K DCI and 4K DCI
- High-quality 10-bit 4:2:2 video sampling
- Adaptable power options with both AC and DC inputs
Specifications
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 270Mb, 1.5G, 3G
- HDMI Video Outputs: 1
- Screen: 2.2 inch LCD
- Timecode Connections: 1 x BNC In, 1 x BNC Out
- Reference Connections: 1 x BNC In, 1 x BNC Out (Tri-Sync or Black Burst)
- SDI Audio Inputs: 16 channels embedded audio
- SDI Audio Outputs: 16 channels embedded audio
- HDMI Audio Outputs: 8 channels embedded audio
- Remote Control: 1 x RS-422 In
- Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol
- Ethernet: 1Gb/s
- Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s)
- Video Standards: SD, HD, 2K DCI, 4K DCI
- Color Precision: 10bit
- Color Space: REC 601, REC 709, REC 2020
- HDR Support: Hybrid Log-Gamma, ST2084
- Media: 2 x SD card slots, 1 x USB-C 3.0 expansion port
- Media Type: UHS-I and UHS-II SD cards
- Media Format: ExFAT (Windows/Mac) or HFS+ (Mac)
Package Contents
- Blackmagic Design HyperDeck Studio HD Mini
- AC Power Adapter
- Quick Start Guide
- Software Download Information
