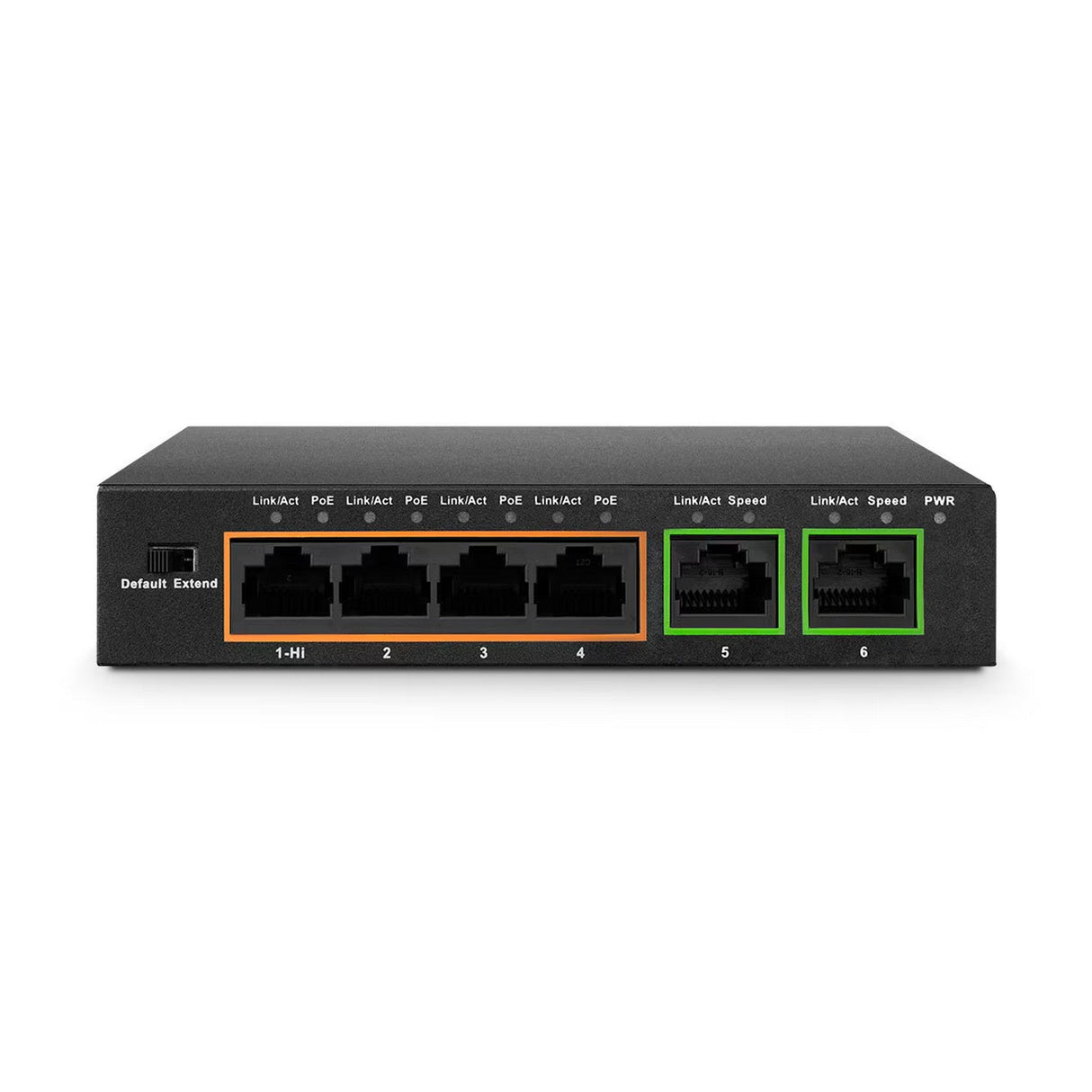

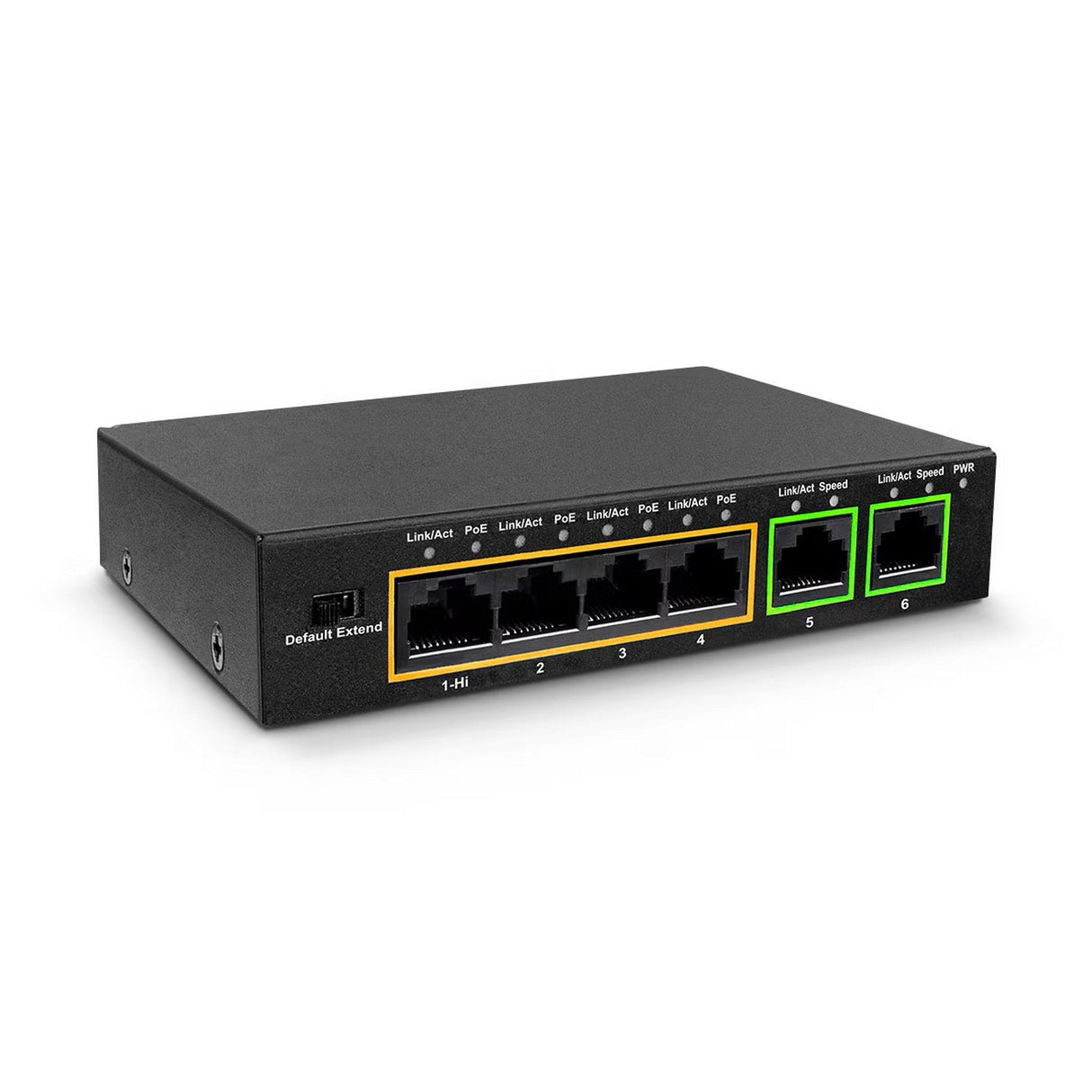

IC Realtime M2M-POE-4 4-Port Unmanaged PoE+ Switch

IC Realtime M2M-POE-4 4-Port Unmanaged PoE+ Switch

The IC Realtime M2M-POE-4 unmanaged PoE+ switch is a powerful and compact networking solution designed to deliver an impressive total of 60 watts of PoE+ power across six ports. This versatile switch features four PoE+ ports, each operating at 10/100Mbps and capable of supplying up to 30W per port, adhering to the IEEE 802.3at standard. For even greater power needs, port 1 can provide up to 60W using Hi-PoE, allowing for the connection and support of multiple high-powered devices.

Enhanced with two additional Ethernet uplink ports at 10/100Mbps, the M2M-POE-4 ensures reliable and continuous data transmission, freeing up the PoE ports for device connectivity. The device's sturdy metal casing ensures durability, efficient cooling, and suitability for a range of installation environments. Plus, with its extend mode feature, this switch can transmit PoE signals up to 820 feet (250 meters), albeit at a reduced data rate of 10Mbps, making it adaptable for extensive networking needs.

The inclusion of a 60W DC adapter means that the M2M-POE-4 is ready for immediate use out of the box. Its unmanaged design supports a straightforward plug-and-play setup, eliminating the need for complicated configurations. This makes it an ideal choice for users seeking a hassle-free and efficient networking solution with robust performance capabilities.

Key Features

• Four PoE+ ports at 10/100Mbps each; offers up to 30W per port and up to 60W on port 1 with Hi-PoE.
• Two 10/100Mbps Ethernet uplink ports for uninterrupted data communication.
• Rugged metal body with PoE transmission range up to 820 feet (250 meters) in extend mode.
• Comes with a 60W DC adapter, ensuring quick deployment.
• Unmanaged design for easy plug-and-play installation.

Specifications

• Model: M2M-POE-4
• Uplink Ports: 2x 10/100 Mbps
• Pass Through Data Rates: 4x 10/100 Mbps
• PoE Port Power: Port 1: 60W, Port 2-4: 30W, Total: 60W PoE
• PoE Configurations: 1x Hi-PoE camera or 2x PoE+ cameras or 4x PoE cameras
• Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+)
• Switching Capacity: 1.8 Gbps
• Packet Forwarding Rate: 890 kpps
• Packet Buffer Memory: 768 Kb
• MAC Table Size: 2K
• Flow Control: Enabled
• Power: DC 48-57V
• Lightning Protection: Common Mode 2KV, Differential Mode 0.5KV
• Operating Temperature: 14°F to 131°F (-10°C to 55°C)
• Weight: 0.66 lb (300 g)
• Dimensions (W x D x H): 5.12 in x 3.35 in x 1.02 in (130 mm x 85 mm x 26 mm)

Package Contents

• M2M-POE-4 4-Port Unmanaged PoE+ Switch
• 60W DC Adapter
• User Manual
