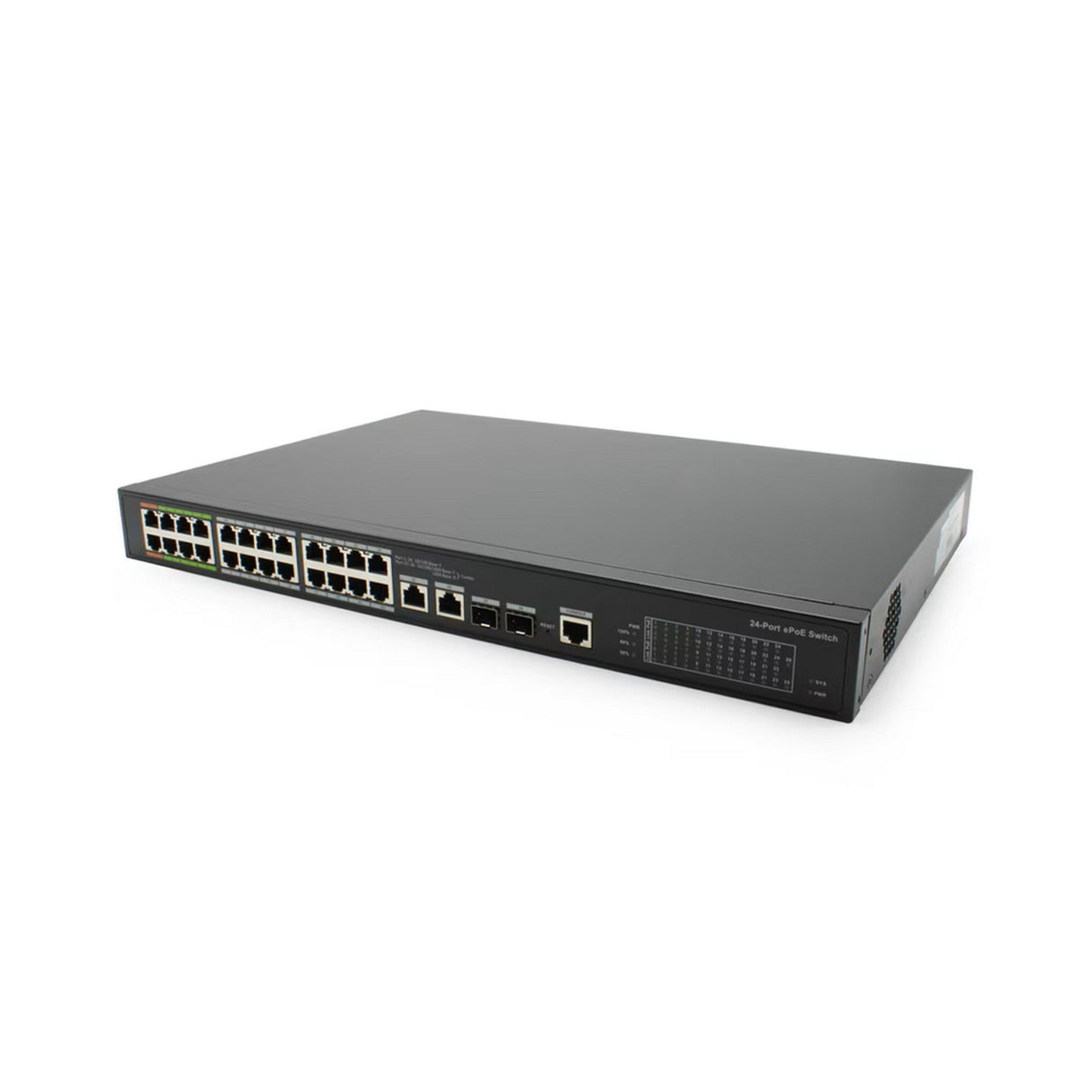

IC Realtime Layer 2 Managed Network 24 Port PoE Switch, ePOE, PoE+, Hi-POE Capable

The IC Realtime Layer 2 Managed Network 24 Port PoE Switch, ePOE, PoE+, Hi-POE capable, offers exceptional performance and versatility for modern network infrastructures. Designed to meet the needs of high-demand environments such as security systems, surveillance networks, and enterprise-grade installations, this switch provides robust connectivity and advanced power management features. With support for various Power over Ethernet (PoE) standards, including ePOE, PoE+, and Hi-POE, the switch ensures seamless integration with a wide range of devices and systems.

Built with Layer 2 managed capabilities, the IC Realtime Layer 2 Managed Network 24 Port PoE Switch delivers superior control over network traffic and performance. The switch is equipped with extensive security measures, including multi-level user management and VLAN functionality, ensuring a secure and efficient networking solution. Whether deployed in small businesses, larger enterprises, or specialized network environments, this switch is engineered to meet the highest standards of performance, reliability, and flexibility.

The IC Realtime Layer 2 Managed Network 24 Port PoE Switch is designed for ease of use and seamless deployment. Its advanced features, such as port-based VLAN, static link aggregation, and green PoE for power management, provide a comprehensive solution for network needs. With the ability to handle up to 360 watts of total PoE power, this switch supports a variety of devices while maintaining optimal performance and efficiency. Ideal for both desktop and rack mount installations, it is a versatile and future-proof solution for network administrators seeking a dependable, high-capacity PoE switch.

Key Features

• Layer 2, Managed Ethernet Switch
• 24 × 10/100 Mbps Ethernet Ports
• 2 × 10/100/1000 Mbps Uplink Ports
• 1 Gbps Optical Port Uplink
• Supports PoE with IEEE802.3af, IEEE802.3at, and Hi-PoE, ePOE
• PoE Budget up to 360 W
• Green PoE for power management and overload protection
• Spanning Tree Protocol (STP/RSTP)
• Static link aggregation and LACP for enhanced connectivity
• 6.55 Mpps Packet Forwarding Rate
• 4K MAC Table Size

Technical Specifications

Layer: Layer 2, Managed

Ethernet Port: 24 × RJ-45 10/100 Mbps

Ethernet Port Speed: 10/100 Mbps

Ethernet Uplink Speed: 10/100/1000 Mbps

Optical Port Uplink Speed: 1 Gbps

Ethernet Port Functions: Port 1–24: 24 × RJ-45 10/100 Mbps
Port 25–26: 2 × RJ-45 10/100/1000 Mbps
Port 25–26: 2 × SFP 1000 Mbps (combo)

PoE Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE, ePOE Support

PoE Budget: Port 1–2 ≤60 W;
Port 3–24 ≤30 W;
Total ≤360 W

PoE Power Consumption: Management, PoE power consumption management, PoE power on/off, Overload detection shutdown; Green PoE

PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Spanning Tree Protocol: STP/RSTP

VLAN Function: Port-based VLAN

Link Aggregation: Static link aggregation, LACP

IEEE 802.3x Flow Control: Yes

DHCP Function: DHCP Client

Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE 802.3ab, IEEE 802.3z

Packet Forwarding Rate: 6.55 Mpps

Packet Buffer Size: 2.75 Mbit

MAC Table Size: 4K

VLAN Number: 31

Switching Capacity: 8.8Gbps

Security: Multi-level user management, password protection, 802.1X, RADIUS, Port isolation

QoS/ACL: SP/WRR queue scheduling

Equipment Management: SNMPv1/v2/v3, System logs, multi-level alarms, LLDP

Debugging: 1 × Console port

Reset Button: 1

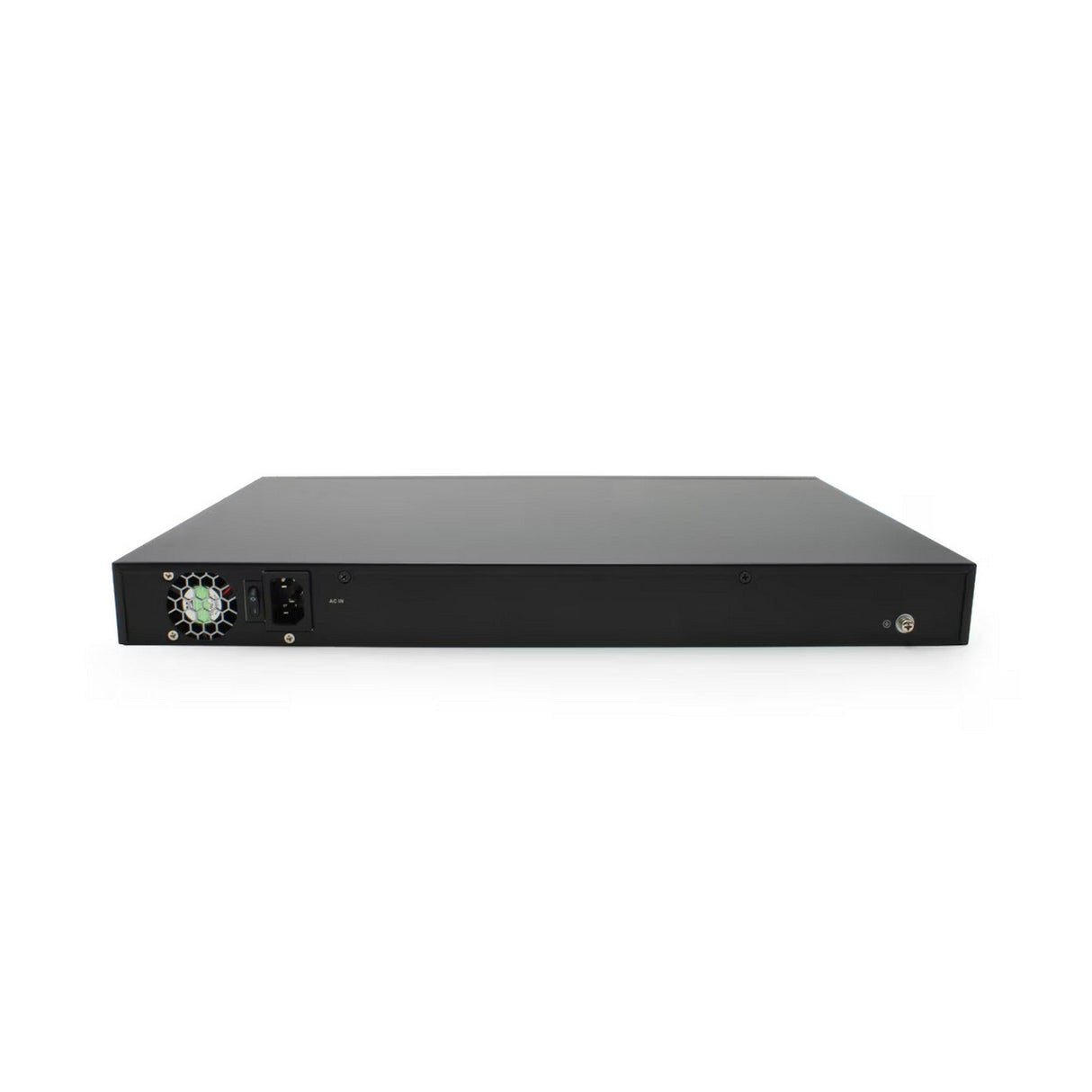

Power Supply: Built-in, 100–240 VAC, 50/60 Hz, 6 A

Operating Temperature: +14 °F to +131 °F (–10 °C to +55 °C)

Operating Humidity: 5%–95% (RH)

Static Protection: Air discharge: 8 kV; contact discharge: 6 kV

Lighting Protection: Common mode: 4 kV; differential mode: 2 kV

Weight: 7.58 lb (3.44 kg)

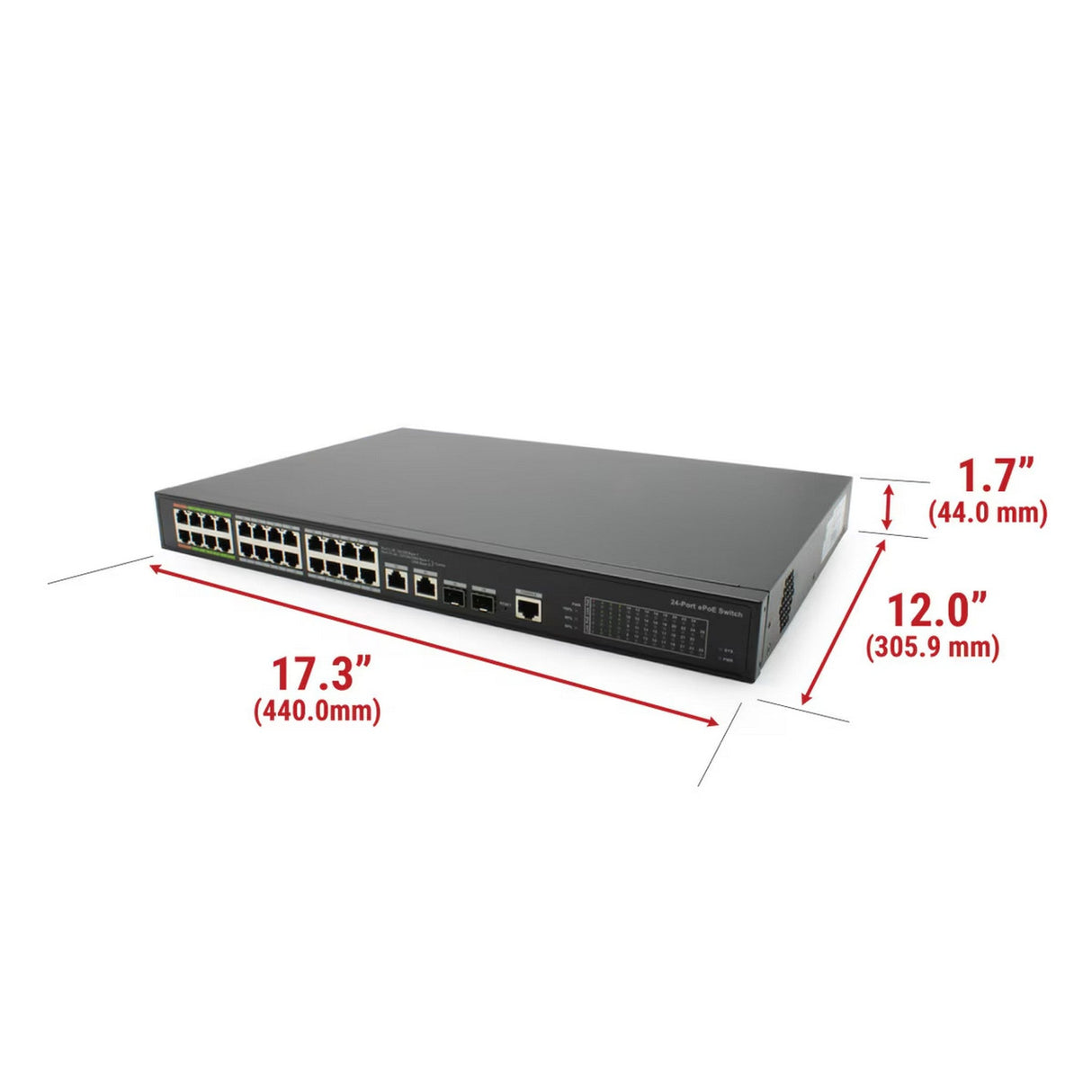

Dimension(W×D×H): 17.32" × 11.81" × 1.73" (440 mm × 300 mm × 44 mm)

Material: Sheet Metal

Installation: Desktop mount; rack mount

What’s Included

• IC Realtime Layer 2 Managed Network 24 Port PoE Switch
• Power Cord

• User Manual
