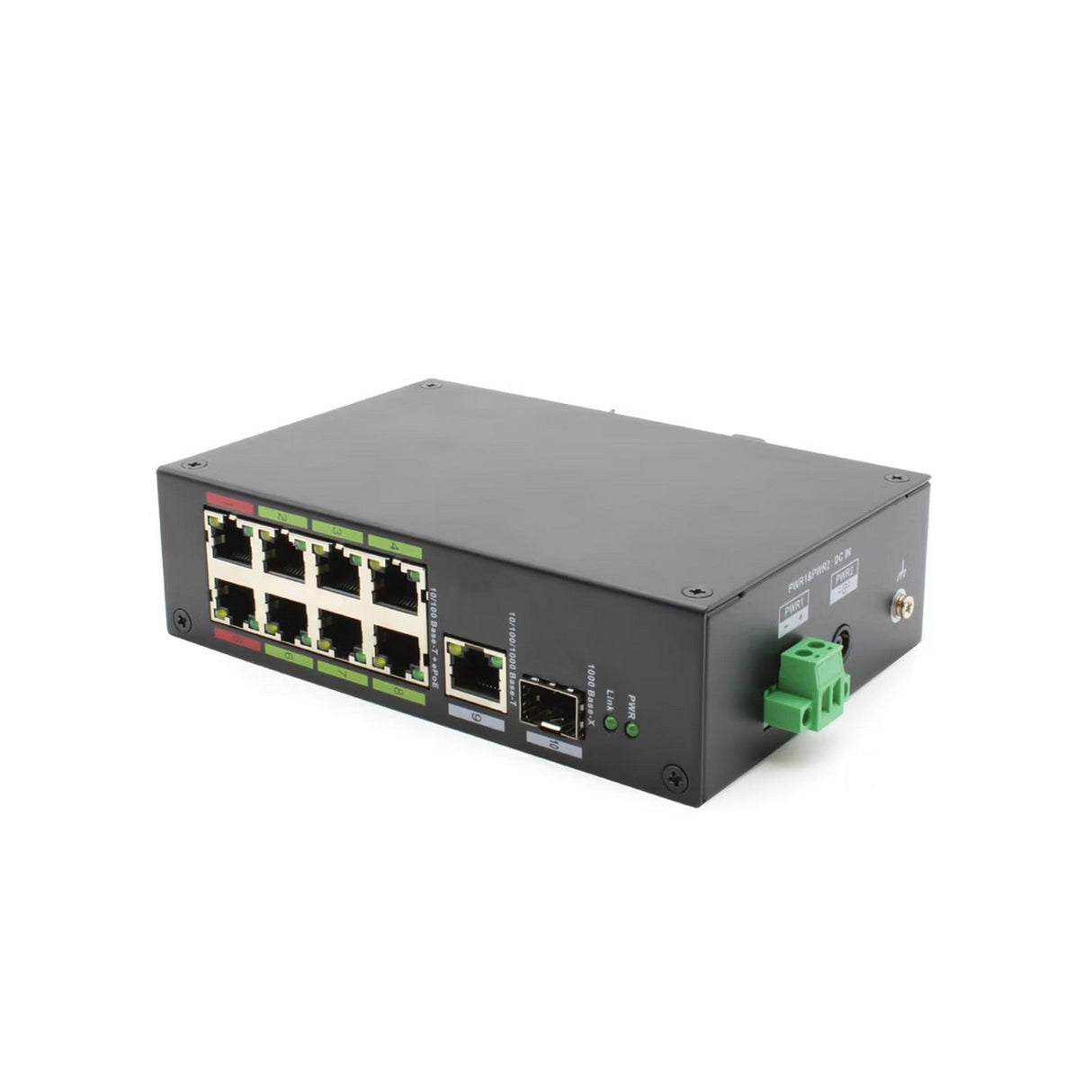

IC Realtime 8 Port Full Gigabit ePoE Switch 120W Max

The IC Realtime 8 Port Full Gigabit ePoE Switch 120W Max is a high-performance Power over Ethernet (PoE) switch designed to meet the needs of modern networking and surveillance systems. With its compact design and robust features, this switch offers seamless connectivity and efficient power delivery for a wide range of devices.

Featuring 8 Gigabit Ethernet ports, the PWR-EPOE-8-V2 ensures reliable data transfer speeds up to 10/100/1000 Mbps. Additionally, port 10 supports a 1000 Mbps SFP uplink, providing flexible network expansion options. This switch is optimized for high-power devices, with a total power budget of up to 120W, making it suitable for demanding environments.

Designed for versatility, the IC Realtime 8 Port Full Gigabit ePoE Switch supports multiple installation options, including rack mount and DIN guide rail mount. With advanced features such as IEEE802.3 PoE protocols and lightning protection, it guarantees a stable and secure network performance in a variety of deployments.

Key Features

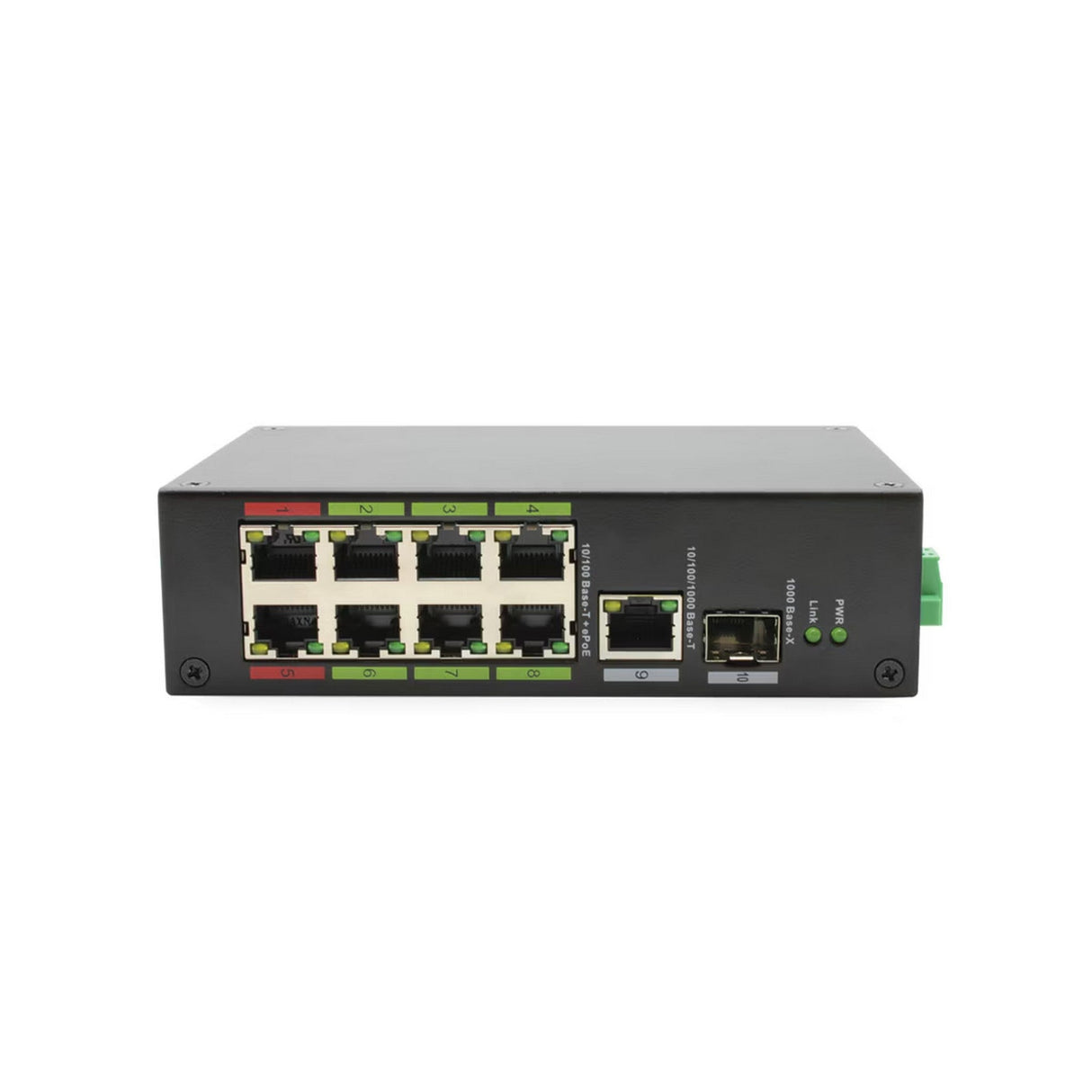

• 8 x RJ-45 10/100/1000 Mbps Ports
• 1 x SFP 1000 Mbps Port
• Optical Port Uplink Speed: 1 Gbps
• PoE Power Consumption:
  • Port 1,5 ≤90 W
  • Port 2,3,4,6,7,8 ≤30 W
  • Total ≤120 W
• Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab/z, IEEE802.3X
• PoE Protocol: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
• PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)

Technical Specifications

• Switching Capacity: 8.8Gbps
• Management Type: None
• Packet Forwarding Rate: 5.36 Mpps
• Packet Buffer Size: 2.75 Mbit
• Jumbo Frame: 9216 Byte
• MAC Table Size: 8K

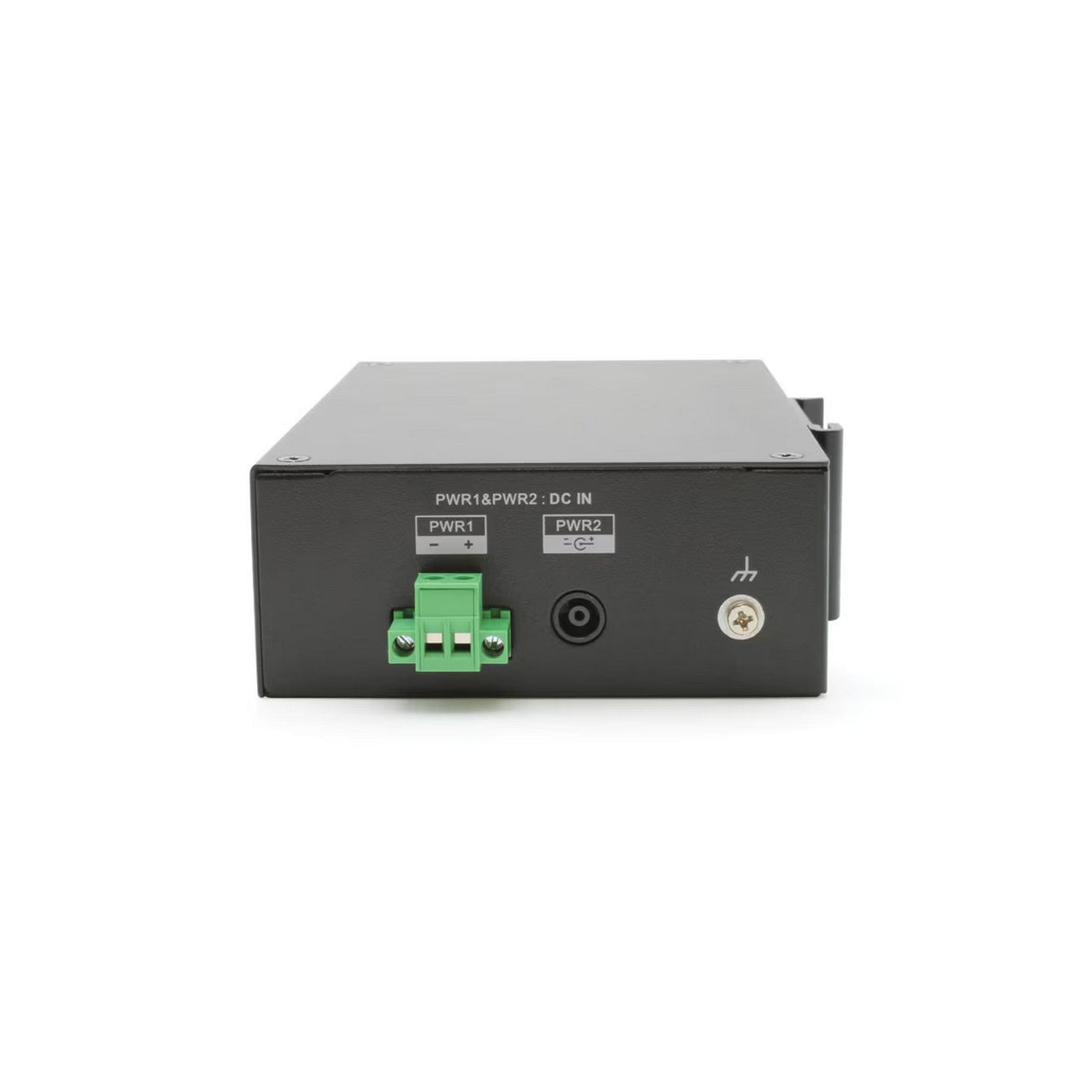

• Power: External power supply: 54 VDC, 2.22 A
• Lightning Protection: Common Mode 4KV / Differential Mode 2KV
• Working Temperature: ﹣30°C~65°C

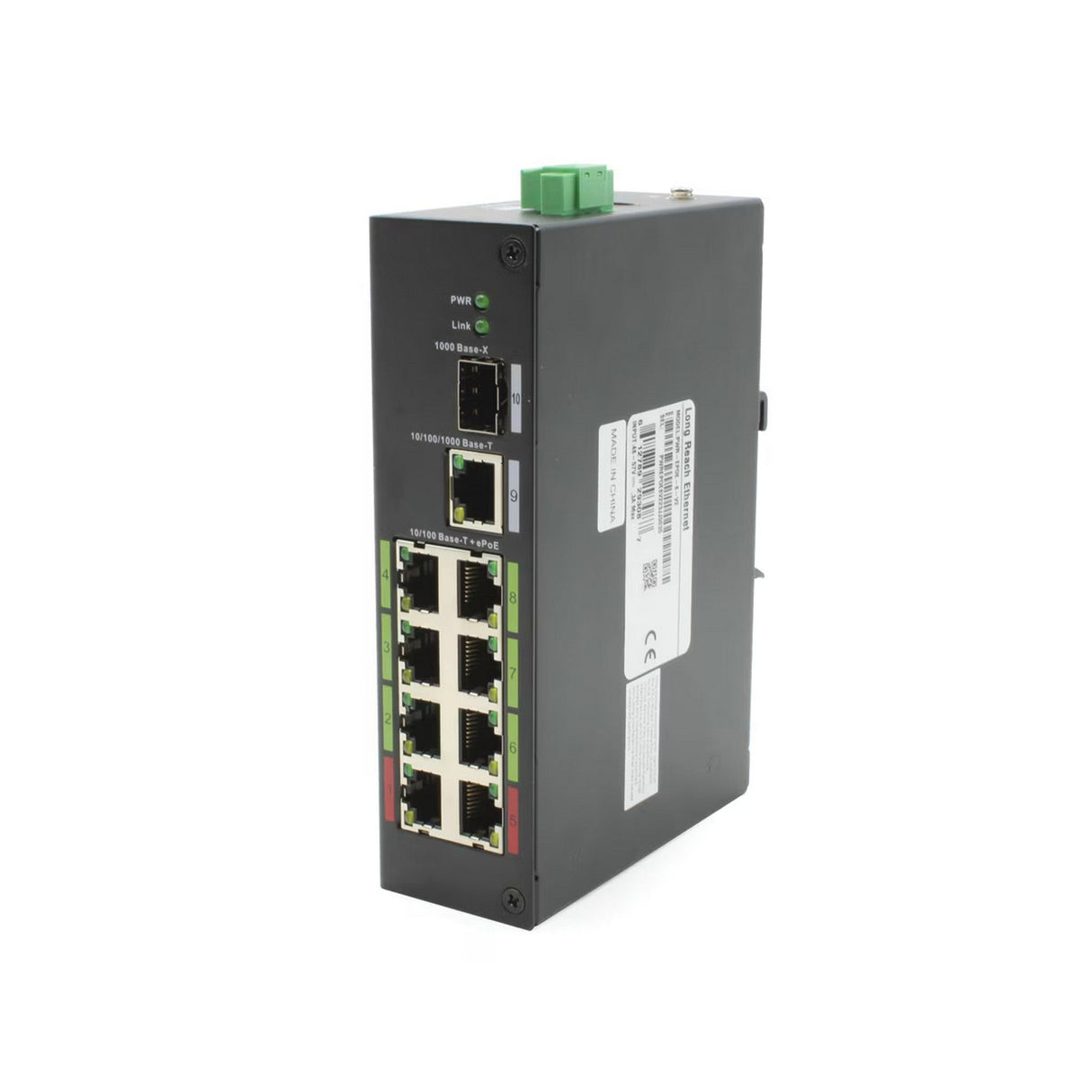

• Installation: Rack mount; DIN guide rail mount
• Weight: 1.32 lb (0.6 kg)
• Dimension (L × W × H): 5.91" × 3.94" × 1.65" (150 mm × 100 mm × 42 mm)

What’s Included

• IC Realtime PWR-EPOE-8-V2 Switch
• External Power Supply

• User Manual
