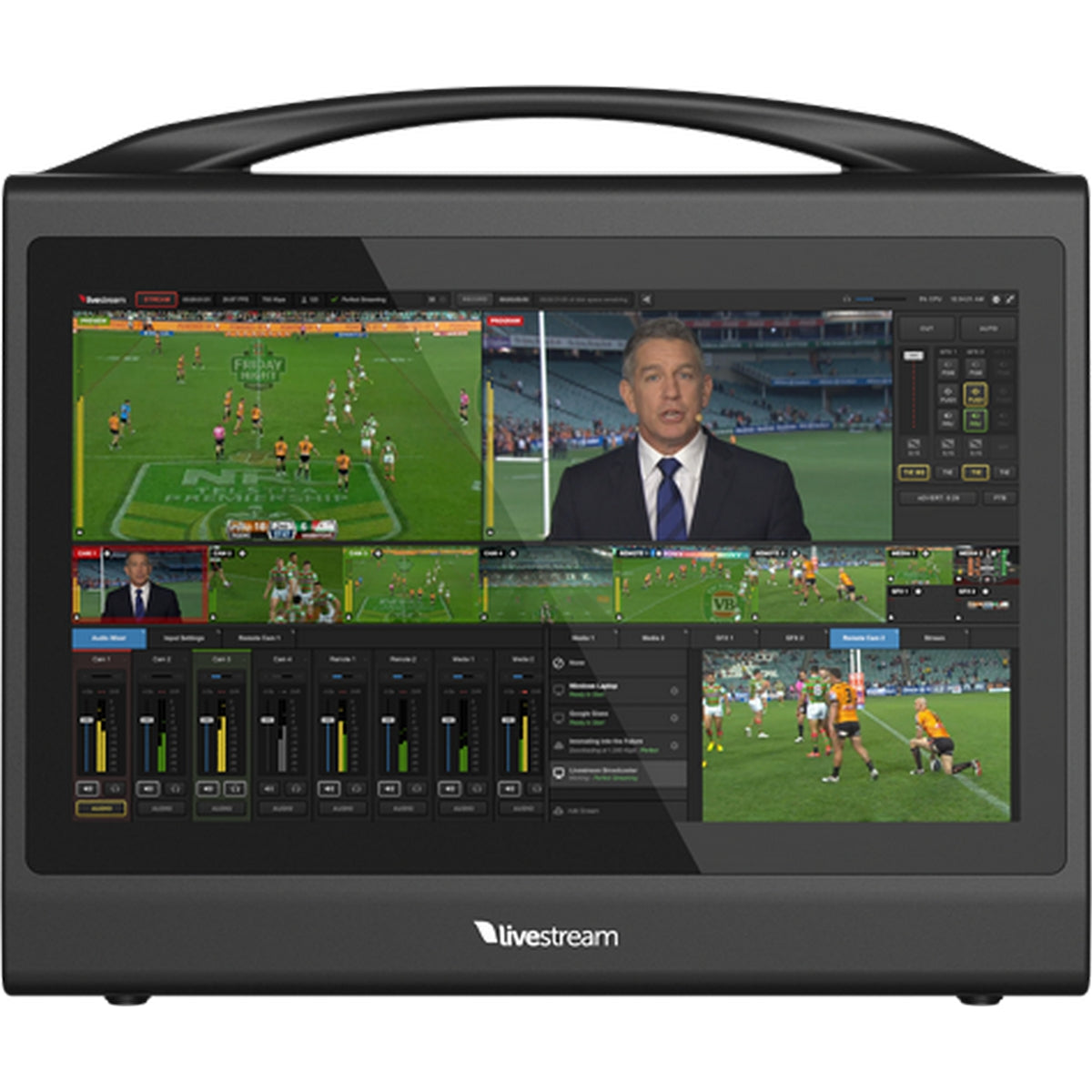

Livestream HD550 Compact Portable All in One Live Video Switcher

The Livestream Studio HD550 all-in-one live production switcher is a true portable production suite that you can carry with you anywhere, be it a plane, train, or automobile. This dynamic switcher is perfect for producers who require the most flexibility in their production hardware. The Studio HD550 includes all the capabilities of Livestream Studio including 10 remote cameras, 2 media tracks, 4 ISO recorders, and 3 graphics tracks with up to 20 hours of broadcast recording. The Livestream Studio HD550 performs as a standalone broadcast-quality live video switcher when using one of its five live video outputs. Use it for in-venue broadcasting, live to tape production, network and local television programming with or without streaming live to the web, or whatever your needs may be.

Key Features

• Portable Tom Bihn bag included
• 5x HD-SDI or HDMI physical inputs
• 1x HD-SDI or HDMI physical output
• 20 hours of broadcast quality recording (ISO recording)
• The only switcher with built-in bonded transmission
• 2x balanced XLR inputs
• Analog audio in
• One year warranty and phone support included
• Built-in chroma-key, graphics and live streaming
• All the features of Livestream Studio 3.0
• Runs Windows 7

Technical Specifications

Livestream Studio keyboard
7 integrated digital media sources for video & graphics playback. 2 DDRs (video clip playback with built-in transcoder), 3 GFX (graphics), 2 color bars / background color
Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats
On-screen full field rate multiview of all live inputs, preview, program out, GFX and DDR, audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens.
10x Remote camera tracks
1x Extended screen output using HDMI
5x HDMI or SDI inputs
1x SDI/HDMI output
5 Stereo or 40 Mono HD-SDI embedded audio inputs
1 Audio monitoring (1/8¡±)
1 Analog audio input (1/8¡±)
Weight: ~19 lbs
Dimensions: H: 14.8 x W: 17.33 D: 3.03 (top) 4.19 (bottom) inches
