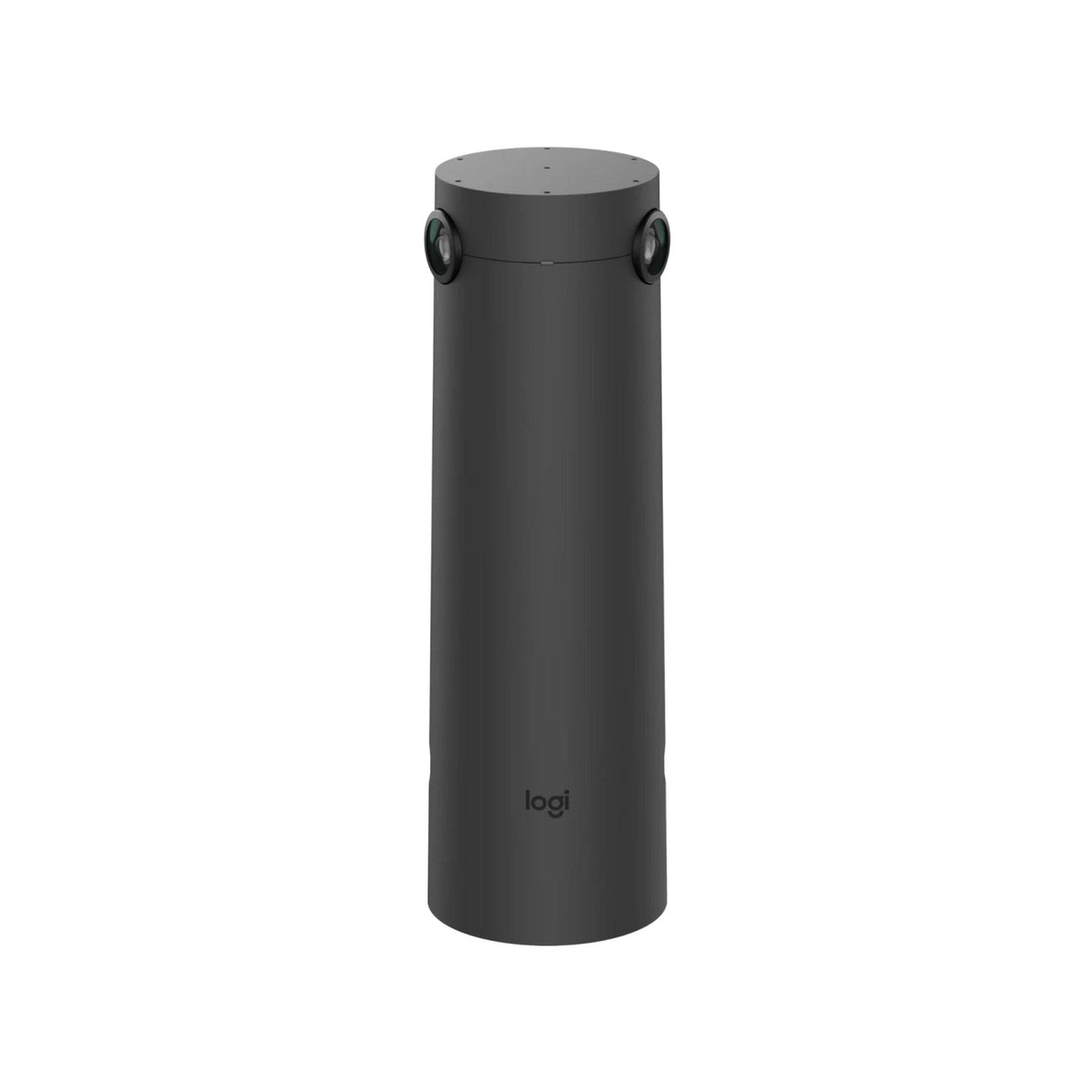

Logitech Sight Tabletop Multi-Participant Conference Camera, Graphite

Logitech Sight Tabletop Multi-Participant Conference Camera, Graphite

TAKE A SEAT AT THE TABLE
AI-powered meeting room camera that helps remote attendees feel like they’re actually seated at the table.

FRONT AND CENTER
Add a tabletop perspective to your front-of-room camera to deliver a better, more inclusive hybrid meeting experience.

While the camera is capable of framing individuals, it encounters difficulty when people block the view of those behind them, and is unable to maintain a head-on perspective when participants turn their faces away from the front camera.

While the camera is able to capture in-room participants talking to each other around the table, it’s unable to maintain a head-on perspective when participants turn their faces back to the front of the room.

With Rally Bar at the front of the room, and Sight at the center of the table, you maintain a consistent front-facing view of in-person interactions as the conversation flows between in-room and remote participants.

TWO VIEWPOINTS.
A BETTER PERSPECTIVE.
A new approach combines Sight at the table with the front-of-room video bar to show the best angle of meeting room interactions.

WORKS WITH YOUR PLATFORM OF CHOICE
Sight integrates with leading video conferencing platforms to enable even better hybrid meetings.

CLEAR AUDIO. CLEAR VIDEO. CLEAR CONTROLS.
With 4K cameras and 7 beamforming mics, Sight captures conversation and nonverbals clearly. Indicator lights and privacy shade allow for clear signaling and status control.

Technical Specifications

Dimensions
Table-mounted
Height: 11.77 in (299 mm)
Width: 6.65 in (169 mm)
Depth: 6.65 in (169 mm)

Grommet-mounted
Height: 11.46 in (291.2 mm)
Width: 3.68 in (93.4 mm)
Depth: 3.68 in (93.4 mm)
Grommet hole 25 mm or larger

Weight: 3.3 lbs (1.5 kg)
Compatibility
Power type: 802.3at Type 2 "PoE+" power or equivalent power supply (user supplied)
CAT Cable: Cat6 or greater
Maximum CAT Cable Length: Between Sight Dongle and Sight: 131.2 ft (40 m)
USB Mode: Windows 10, Windows® 11 or later, macOS (two most recent versions)
Appliance Mode: Room solution software license (not included), Rally Bar or Rally Bar Mini
Latest version of Logitech Collab OS
Ports and Interfaces
1 x RJ45 (audio/video data over USB)
1 x RJ45 (Power Over Ethernet)
1 x RJ45 (Daisychain - Rally Mic Pods)
Video Platform Compatibility
Integration and feature compatibility will vary by platform. For more details, see www.logitech.com/prosupport/sight-compatibility.
Built-in Components
7 beamforming microphones, dual lens camera, Logitech Collab OS platform
Device Management
Logitech Sync
Camera
Sensor resolution: 4K
Zoom: X1
Horizontal Field of View: 315°
Vertical Field of View: 97°
Diagonal Field of View: 180°
Focal Length: 0.07 in (1.87 mm)
Depth of Field: 19.69in (50 cm)-16.41ft (5 m)
Frame Rate (max): 60 fps
Microphone Specifications
Beamforming Elements: 7 omnidirectional digital MEMS microphones forming six adaptive acoustic endfire beams
Pickup Range: 7.55 ft (2.3 m) radius
Microphone Type: digital MEMS microphones with 72 dB SNR and 130 dB AOP, dirt and water resistant to IP57 spec
Frequency Response: 90Hz – 16 kHz
Sensitivity: >-36 dBFS +/-1 dB @ 1 Pa
Audio processing: AEC (Acoustic Echo Cancellation), Machine Learning VAD (Voice Activity Detector)
Noise suppression: Artificial Intelligence Machine Learning to attenuate both stationary and non-stationary noises
Additional mic pods
Rally Bar: Supports up to 3 Mic Pods and 2 Mic Pod Hubs
Rally Bar Mini: Supports up to 2 Mic Pods and 2 Mic Pod Hubs
Rally/Rally Plus: Supports up to total of 6 Mic Pods and/or Mic Pod Hubs
Environmentals
Operating Temperature: 0 to 40°C @ 10% - 90% RH (Non-condensing)
Storage Temperature: -40 to 70°C @ 10% - 90% RH (Non-condensing)
Package Contents
Sight camera
Sight dongle
Mic pod dongle
Privacy shade
Grommet mount
Table mount
Tripod mount
User documentation
Warranty Information
Standard: 2-year limited hardware warranty included
Extended: Additional one- and three-year extended warranties available at the time of hardware purchase.
