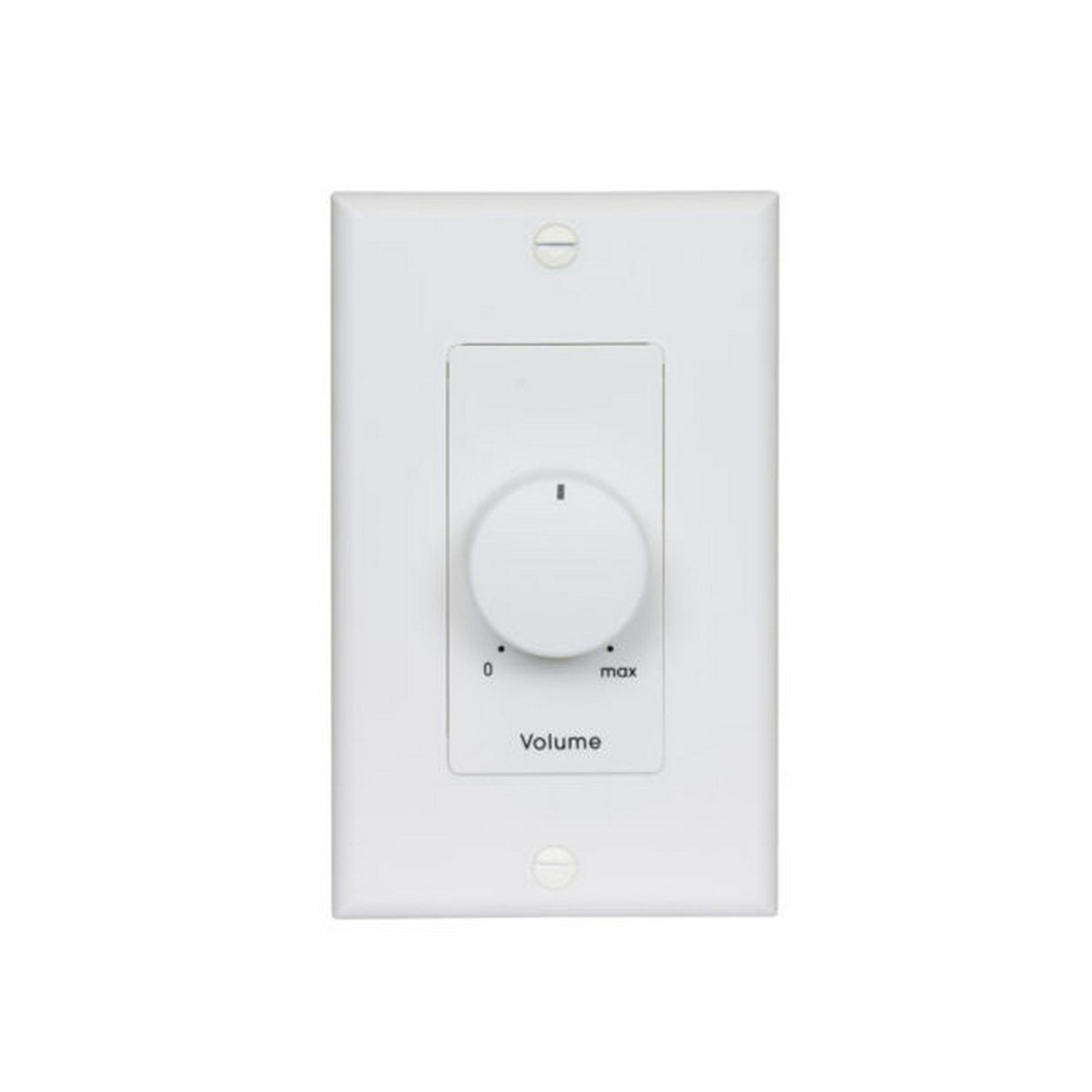

Lowell 100LVC-PA-DW 100 Watt Mono Attenuator 1 Gang Plate with Prioity Relay Decorator White
100W volume control with rotary switch and one-gang wall plate. Includes priority relay for emergency bypass.
Key Features
- Power Rating:- 100W
- Attenuation:- 3dB per step (33dB total)
- Use With:- 25/70/100V speaker line
- Activation: Rotary dial
- Termination: Phoenix-style
- Wire Capacity:- 14-gauge
- Wall Plate:- 1-gang decorator
Technical Specifications
Power Rating
100W
Attenuation
3dB per step (33dB total)
Use With
25/70/100V speaker line
Activation
Rotary dial
Volume Positions
0-10
Termination
Phoenix-style
Wire Capacity
14-gauge
Wall Plate
1-gang decorator
Finish
White
Fits standard E.O. box (2.125 in. min. depth)
Priority Relay: 24VDC@15mA relay for emergency signal bypass
