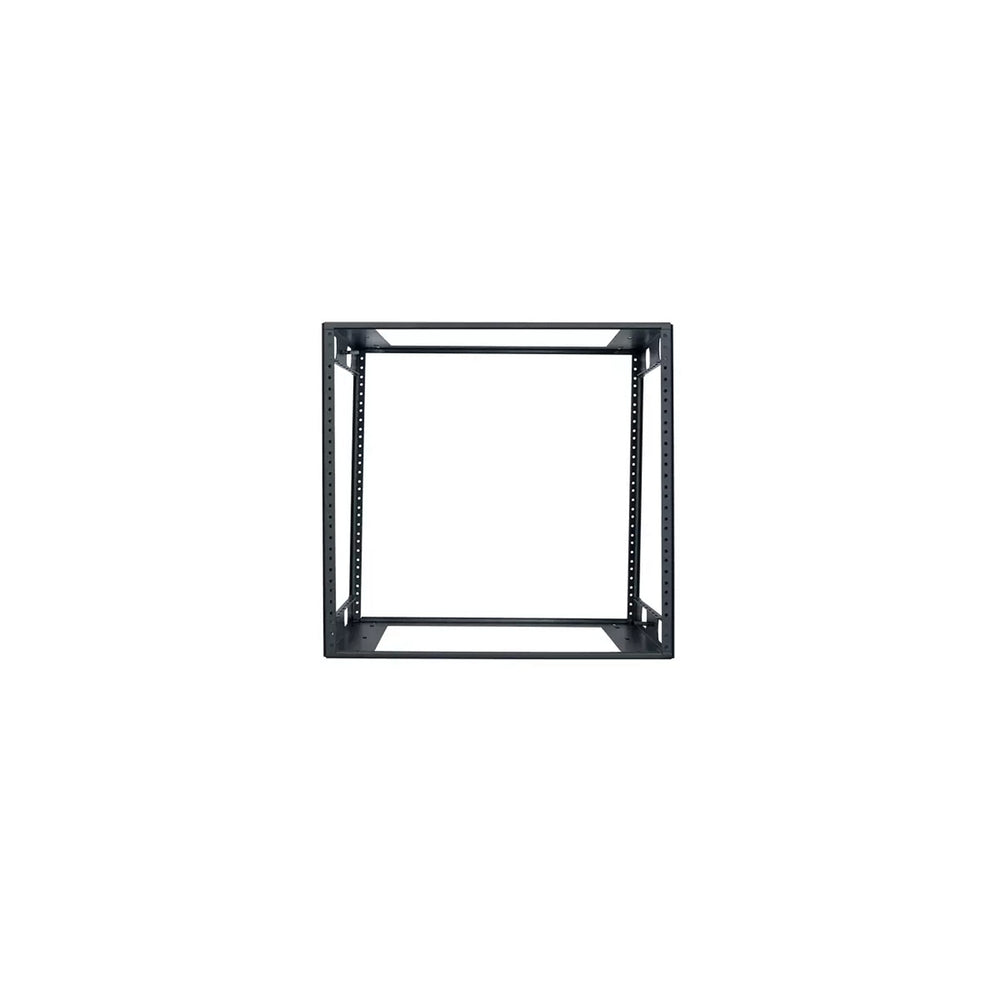

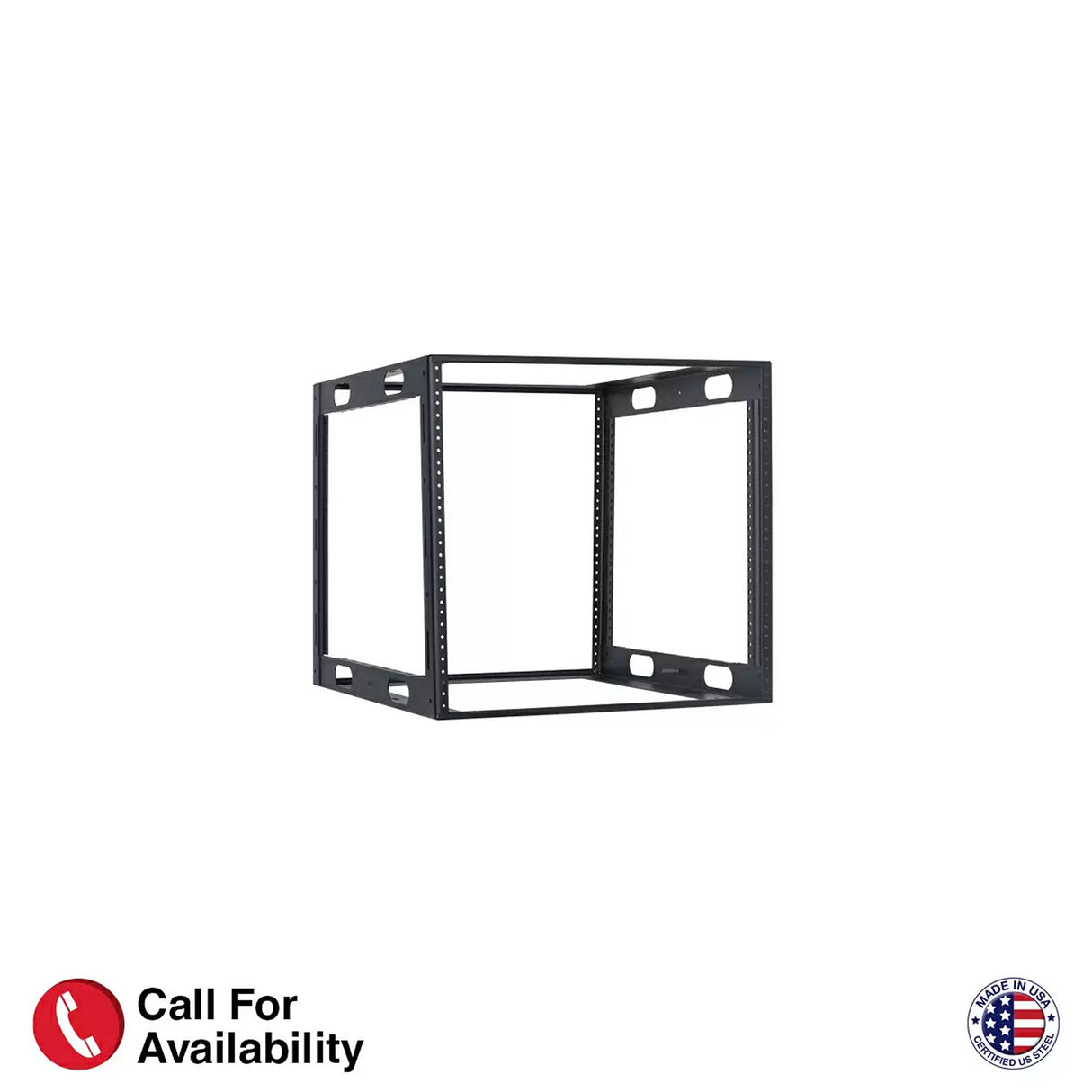

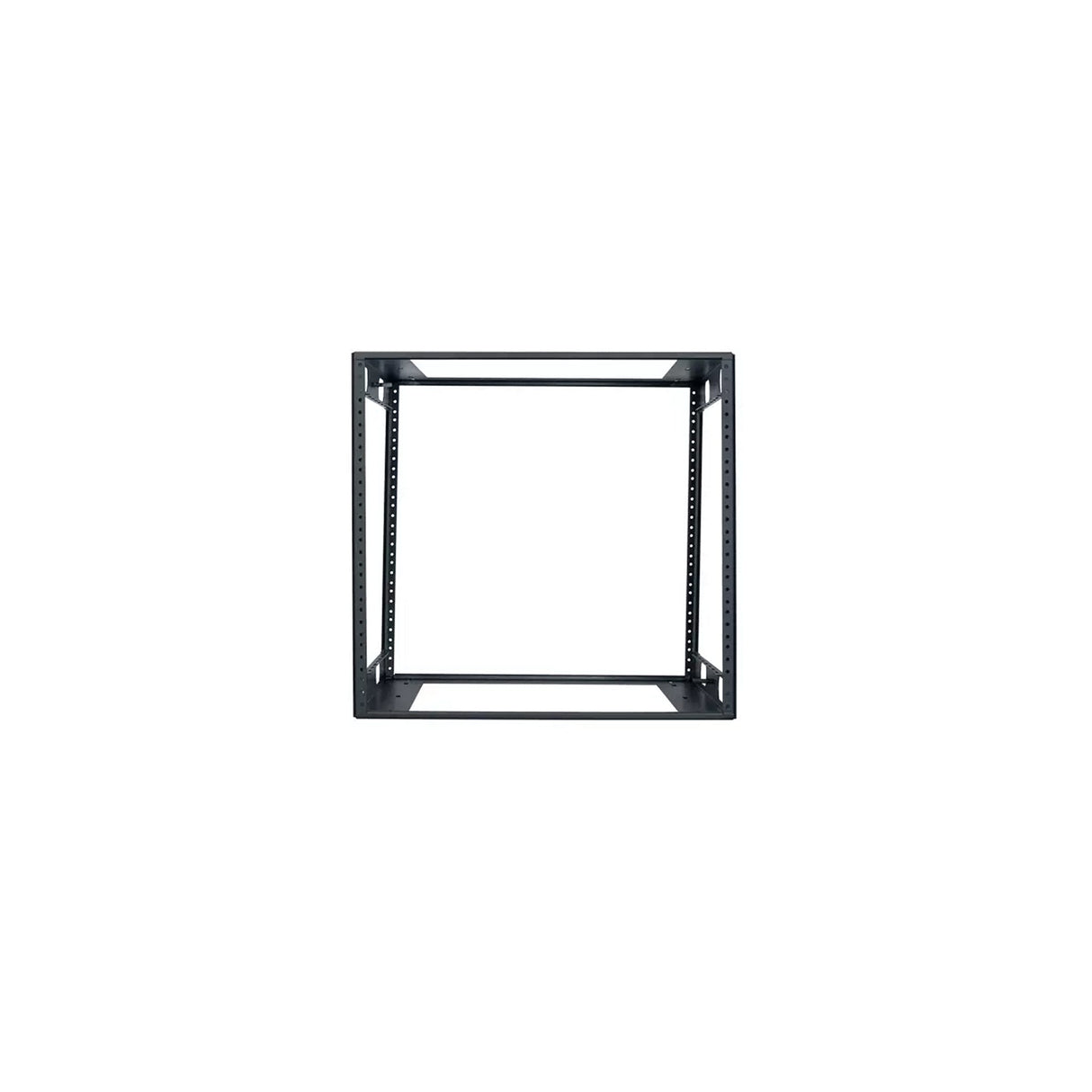

Lowell 10U x 23D Credenza Rack Secure Storage Solution

10U x 23D Credenza Rack

The 10U x 23D Credenza Rack is engineered specifically for housing electronics within cabinetry or beneath counters, providing a robust and reliable solution for your equipment needs. Constructed with a fully welded 16-gauge certified U.S. steel frame and 11-gauge corner post rails, this rack ensures exceptional support and torsional rigidity, making installation both labor-saving and efficient. Its design includes features such as grounding studs and provisions for anchor bolts, enhancing safety and stability.

This open frame rack is compliant with EIA/TIA standards, making it ideal for mounting electronics securely. With dimensions of 18.44"H x 23.00"D x 19.25"W and 10U of panel space, it offers ample room for your devices. The smooth black powder epoxy finish not only provides a sleek appearance but also protects the rack from wear and tear, ensuring longevity in various environments.

Key Features:

• Dimensions: 18.44"H x 23.00"D x 19.25"W
• Panel Space: 10U
• Material: 16-gauge certified U.S. steel frame
• Corner Post Rails: 11-gauge, tapped 10-32
• Grounding Studs: Yes
• Anchor Bolt Provisions: Yes (bolts not included)
• Cable Management: Multiple openings and side obrounds
• Finish: Smooth black powder epoxy

Technical Specifications:

Construction: Fully welded certified U.S. steel
Top and Bottom Gauge: 16-gauge
Corner Post Gauge: 11-gauge
Panel Mounting Hardware: Included
Compliance: EIA/TIA standards

Package Contents:

• 1 x 10U x 23D Credenza Rack
• Panel mounting hardware
