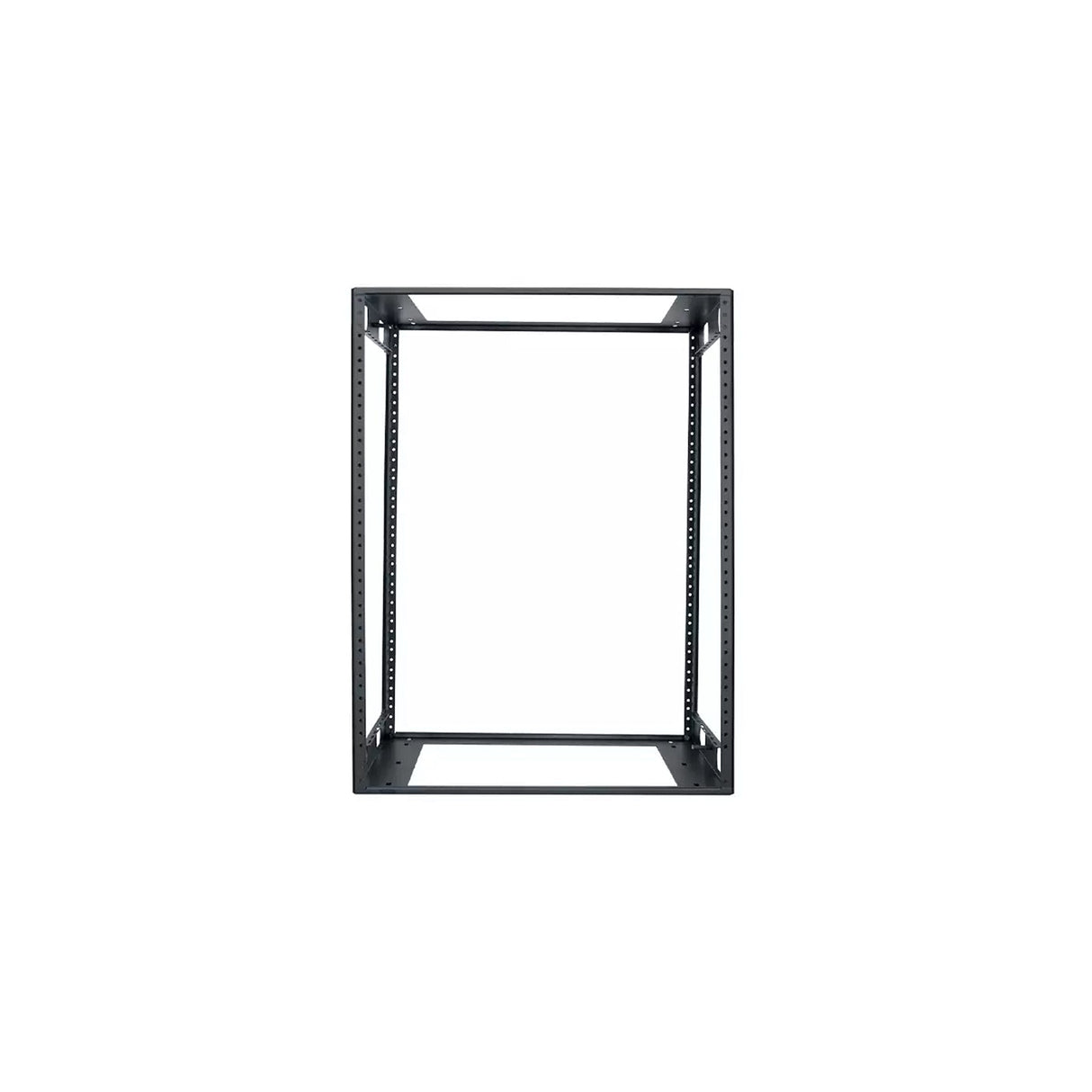

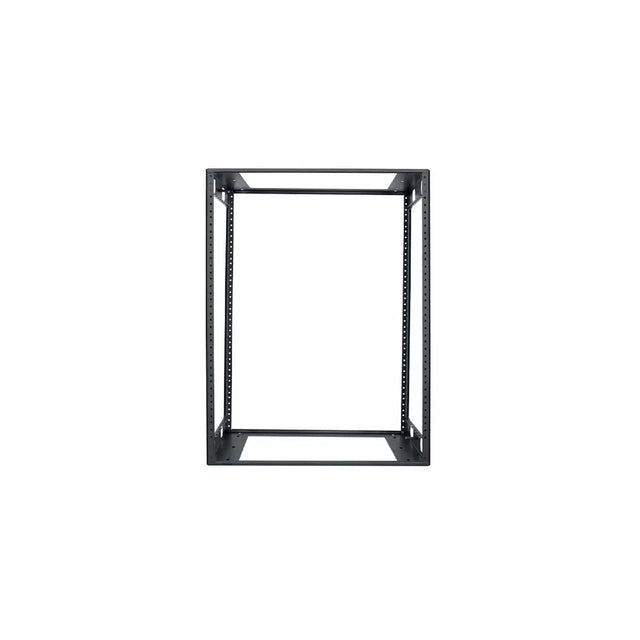

14U x 23D Credenza Rack

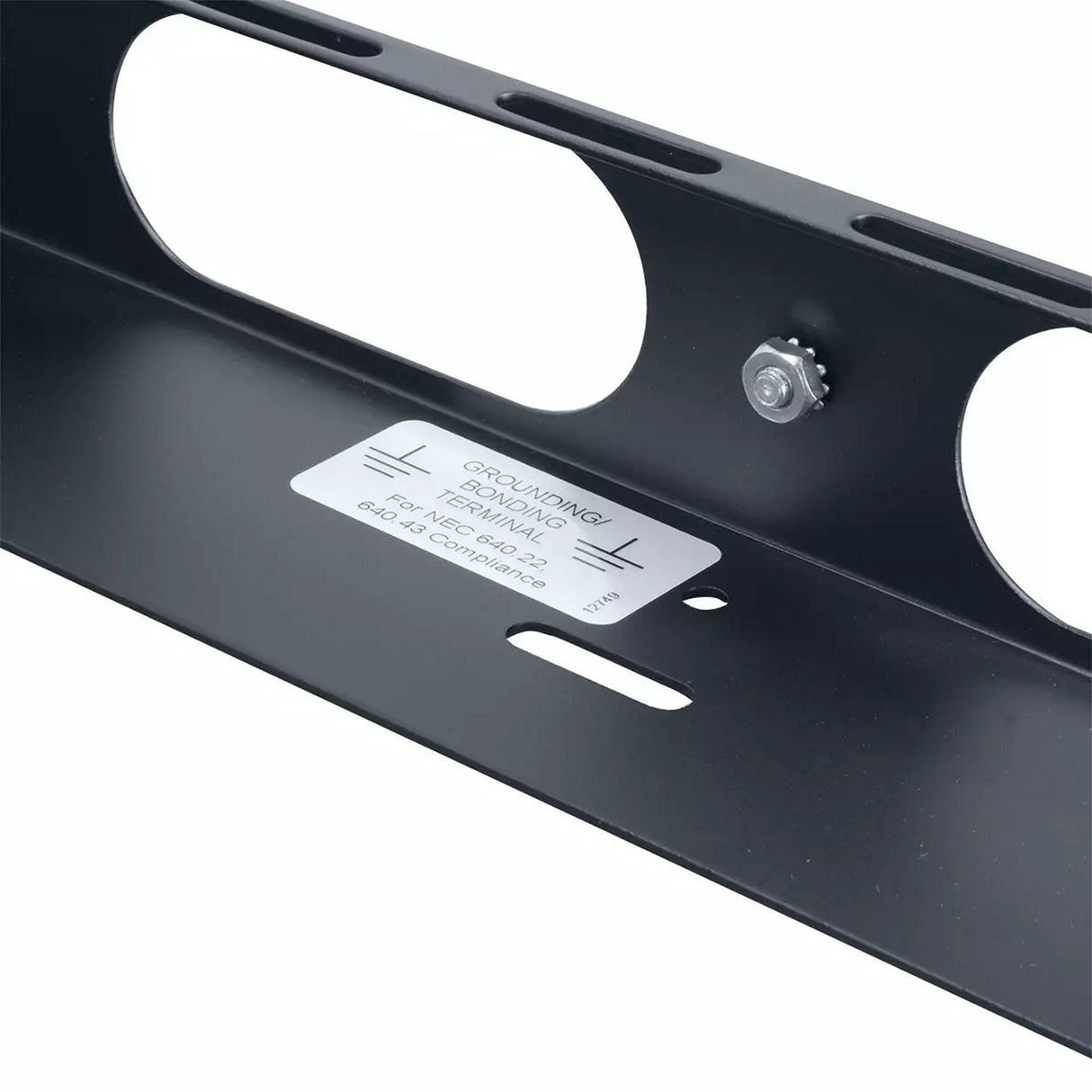

The 14U x 23D Credenza Rack is engineered specifically for housing electronics within cabinetry or beneath counters, providing a robust and reliable solution for your equipment needs. Constructed with a fully welded 16-gauge certified U.S. steel frame and 11-gauge corner post rails, this rack ensures exceptional support and torsional rigidity, making installation both labor-saving and efficient. Its design includes features such as grounding studs and provisions for anchor bolts, enhancing safety and stability.
This open frame rack is designed with practicality in mind, featuring corner post mounting rails that are tapped 10-32, and punched for clean wire tie-off, facilitating effective cable management. The smooth black powder epoxy finish not only provides a sleek appearance but also protects the rack from wear and tear, ensuring longevity in various environments.
Key Features:
- Rack Space: 14U
- Height: 25.44 in.
- Width: 19.25 in.
- Depth: 23.00 in.
- Load Capacity: 250 lbs.
- 16-gauge certified U.S. steel frame
- 11-gauge corner post rails
- Corner holes/slots for anchoring and positioning
- Side obrounds for cable management
- Panel mounting hardware included
Technical Specifications:
Rack Space: 14U
Height: 25.44 in.
Width: 19.25 in.
Depth: 23.00 in.
Load Capacity: 250 lbs.
Frame Material: 16-gauge certified U.S. steel
Corner Post Material: 11-gauge steel
Finish: Black powder epoxy
Package Contents:
- 1 x 14U x 23D Credenza Rack
- Panel mounting hardware
