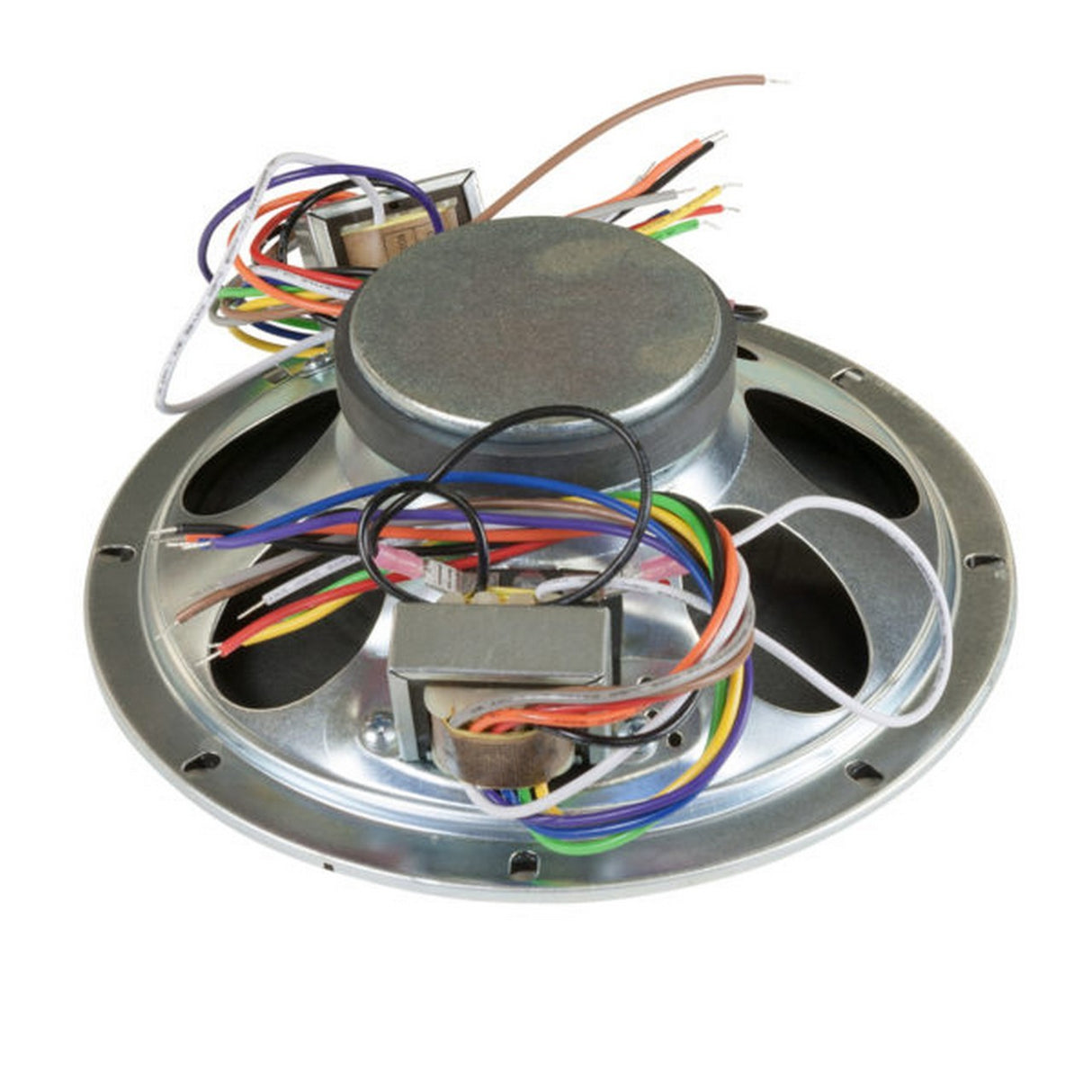

Lowell 8C10DVCA-2T72 8 Inch 15W Dual Voice Coil Two Transformer Driver
Lowell | SKU: LOW-8C10DVCA2T72
Lowell 8C10DVCA-2T72 8 Inch 15W Dual Voice Coil Two Transformer Driver
$7410
Unit price
/
Unavailable
Lowell 8C10DVCA-2T72 8 Inch 15W Dual Voice Coil Two Transformer Driver
Single cone driver (8 in. 15W) with dual voice coils and two transformers is made for systems where individual speakers must be connected to two separate or piggy-backed systems, typically used for retrofit applications.
Key Features
- Driver:- 8 in. 15W cone speaker with two voice coils allows for mechanical mixing of two circuits, such as music and paging, at the speaker
- Frame: -20-gauge stamped steel with zinc-plated finish.
- Mounting Bolt Circle:- 7.625 in.
- Transformers (2):- 25V/70V dual voltage transformers with taps at .25, .5, 1, 2, 5W
- Assembly Frequency Response:- 54Hz-9kHz (-6dB) and 50Hz-20kHz (-13.4dB)
- Assembly Mounting Depth:- 2.84 in.
- Assembly Dispersion Angle:- 90 degrees conical
- Assembly Average Sensitivity:- 95.8dB
