Lowell ACR-SEQ6-2009 20A Rackmount Sequencer
Lowell ACR-SEQ6-2009 20A Rackmount Sequencer
Lowell ACR-SEQ6-2009 20A Rackmount Sequencer

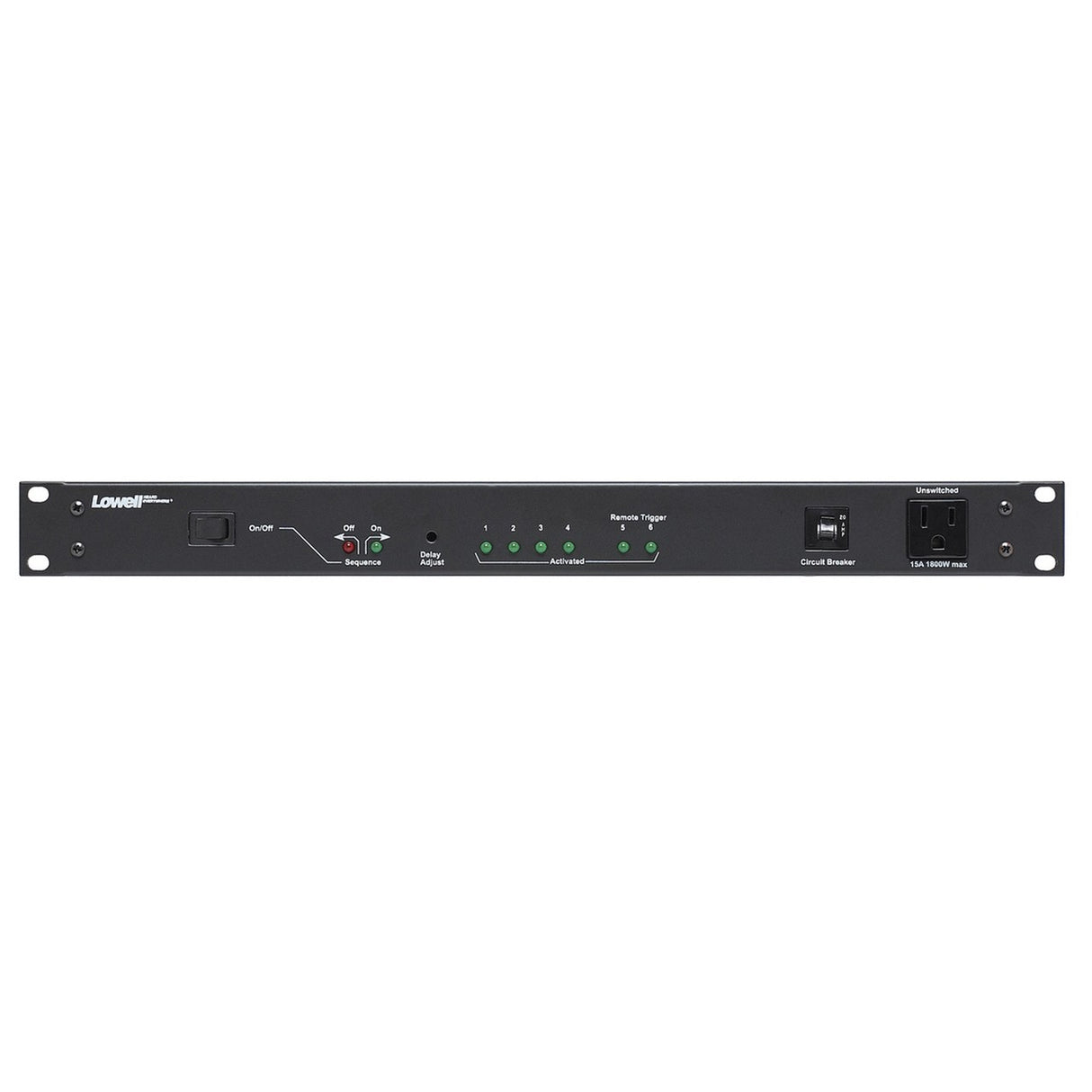

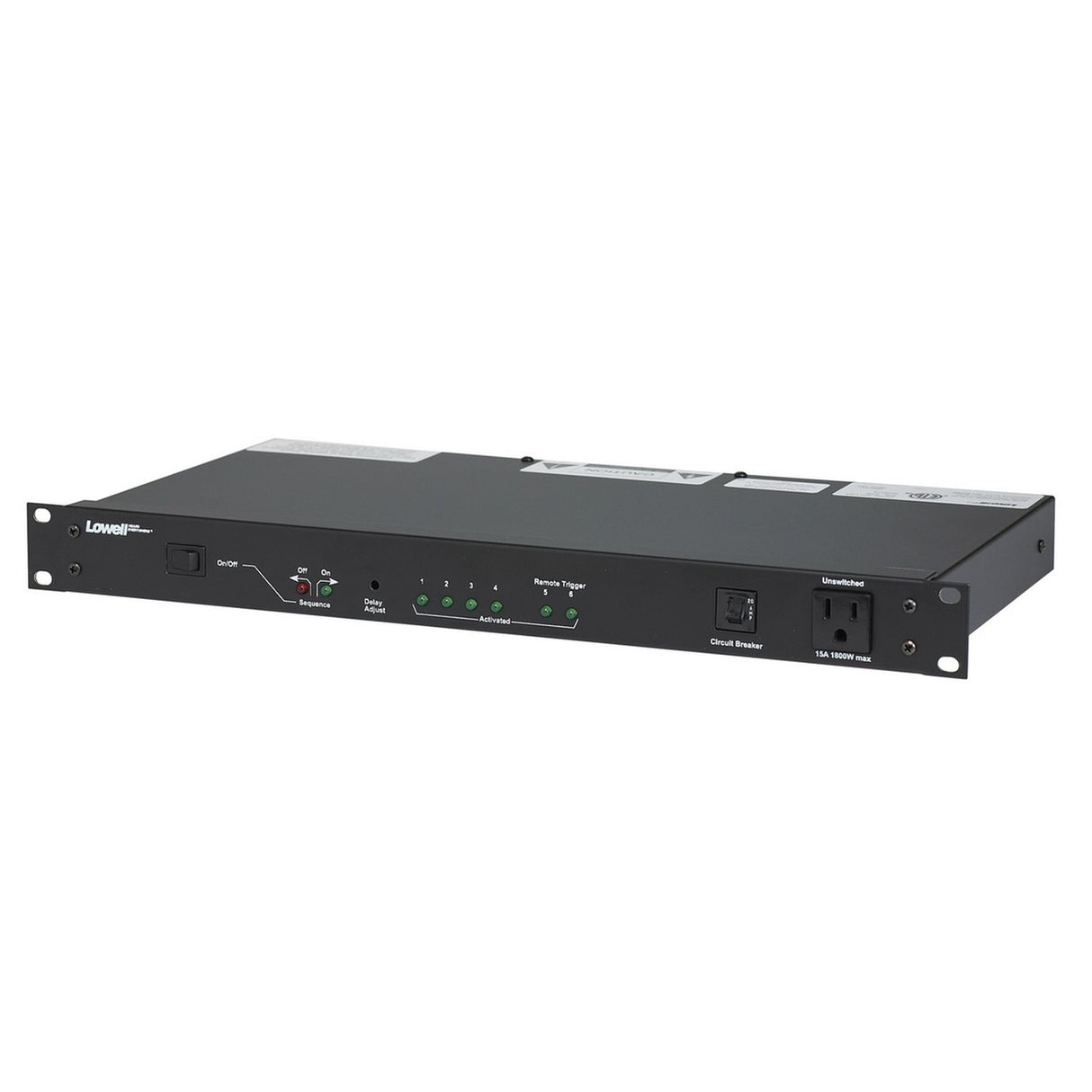

Rackmount panel with nine outlets (six switched, three un-switched) and sequencer for sequential activation/deactivation of connected equipment. Includes alarm interface.
Technical Specifications
Chassis
19 in. x 9 in. x 1.75 in. (1U)
Power Rating
120VAC 60Hz, 20A
Termination
9 ft. attached cord with NEMA plug
Activation
Rocker switch
Outlets (9 total)

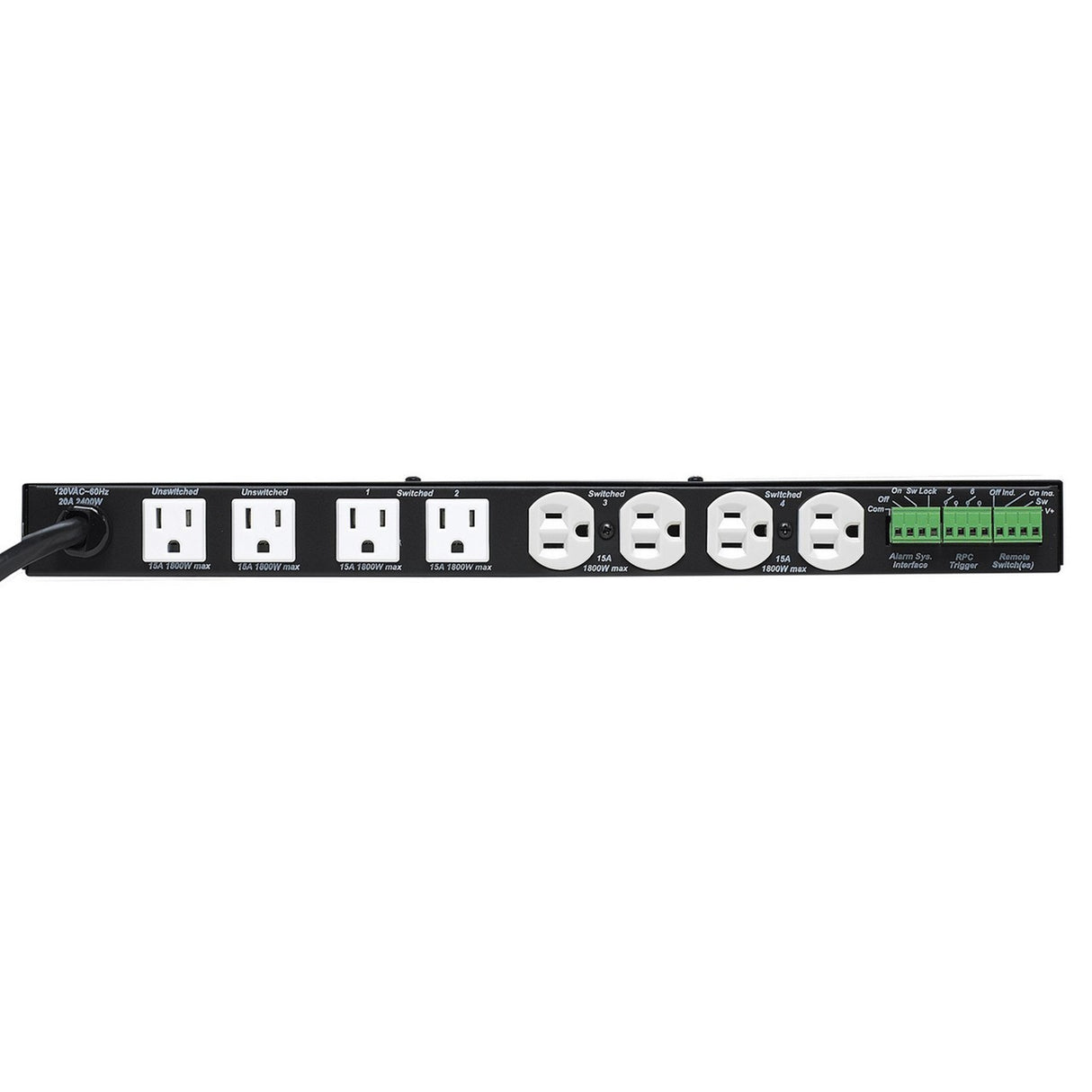

1 front (15A) un-switched, 2 rear(15A) un-switched , 6 rear (15A) switched.
Four step sequential power plus two dry contact closures (steps 5 and 6) for triggering remote power control units (RPC series, order separately).
Adjustable delay between sequenced steps

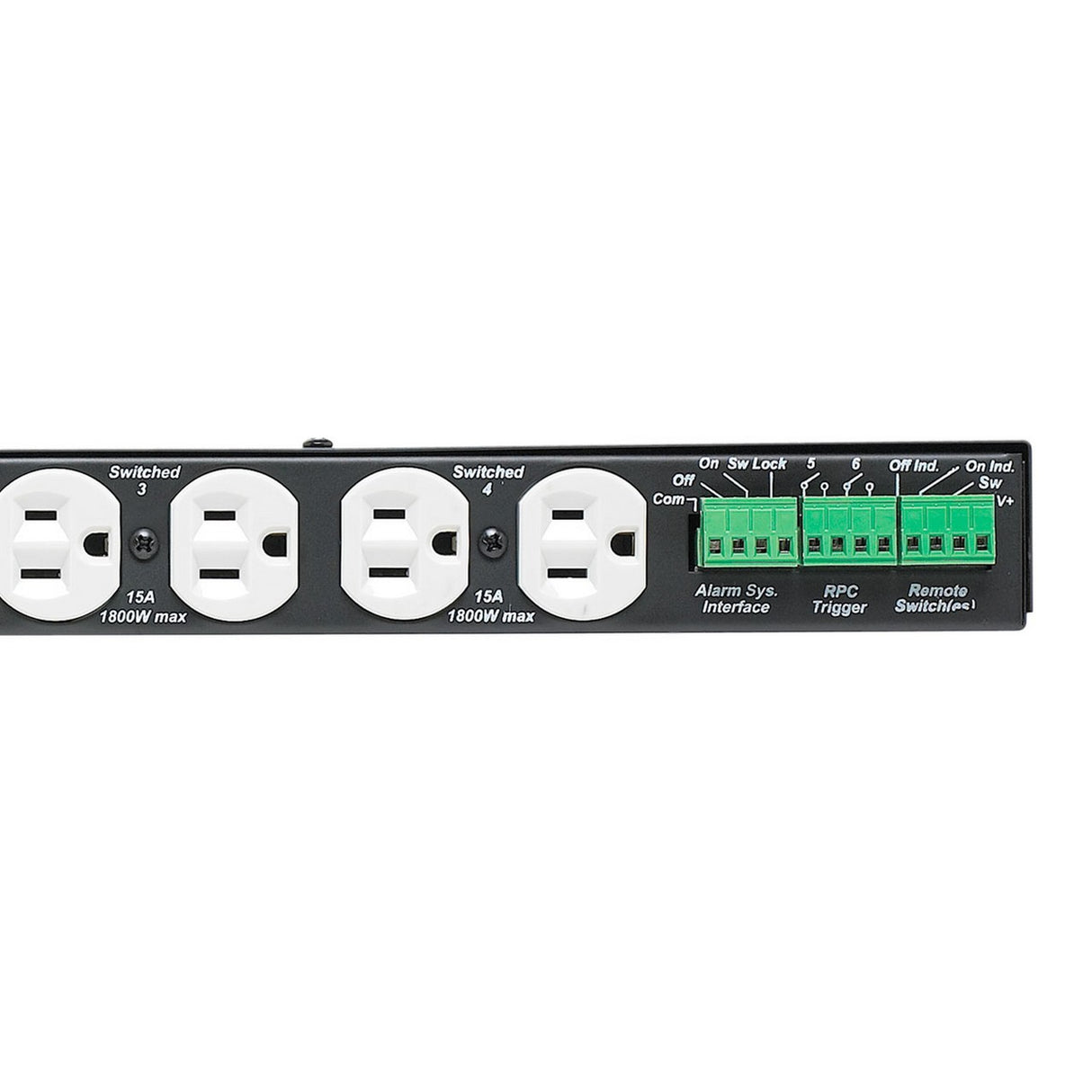

Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by fire code.
Alarm Interface
Lock on/off and switch lock functions for alarm system or master control panel applications.
External Control Connections
Plug-in barrier strip terminal blocks
