Lowell ACSPR-2009-VTE Power Panel-20A, 5-Switched 4-Unswitched Outlets, 1U, Surge Supp, O/U, 9ft Cord
Lowell ACSPR-2009-VTE Power Panel-20A, 5-Switched 4-Unswitched Outl...
Lowell ACSPR-2009-VTE Power Panel-20A, 5-Switched 4-Unswitched Outlets, 1U, Surge Supp, O/U, 9ft Cord

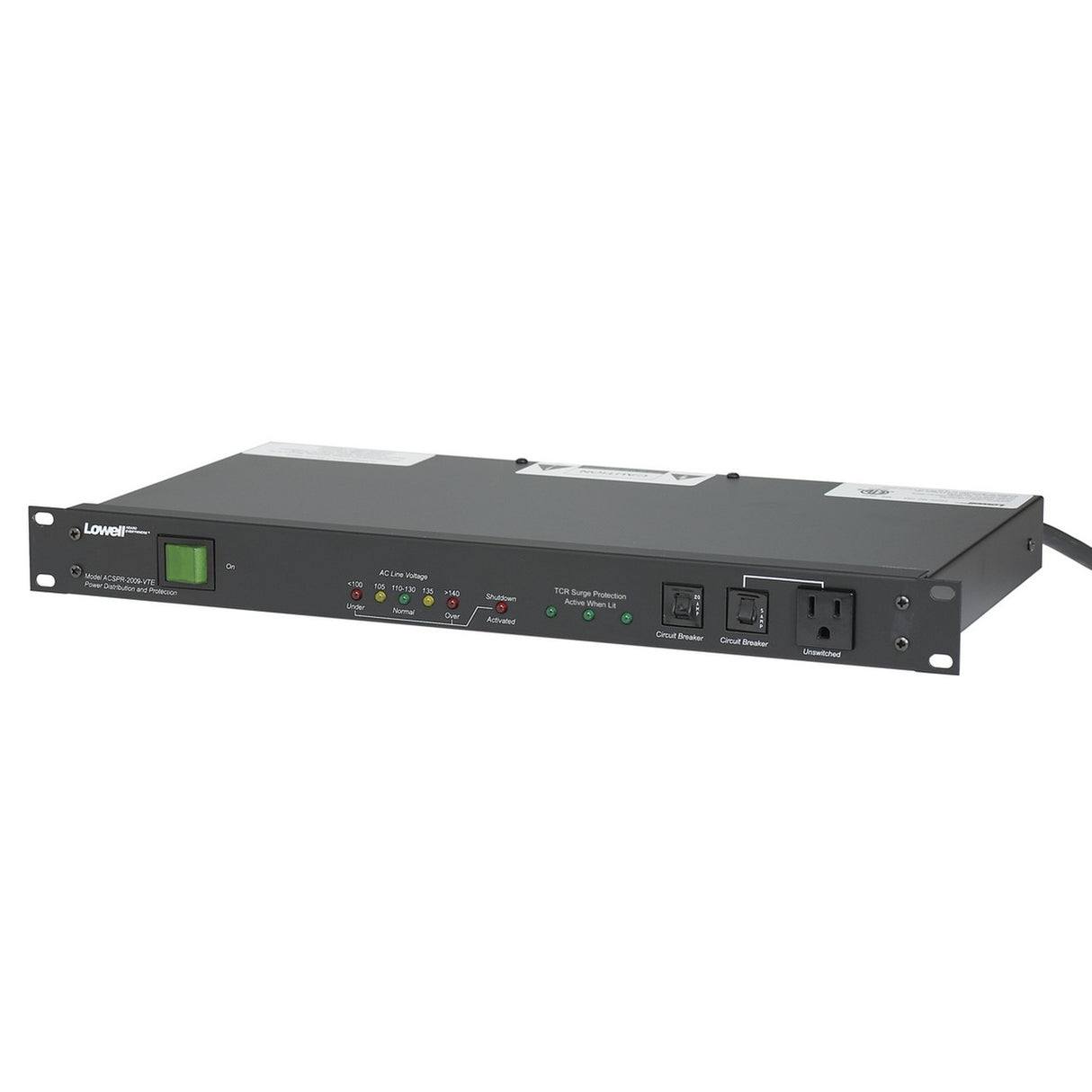

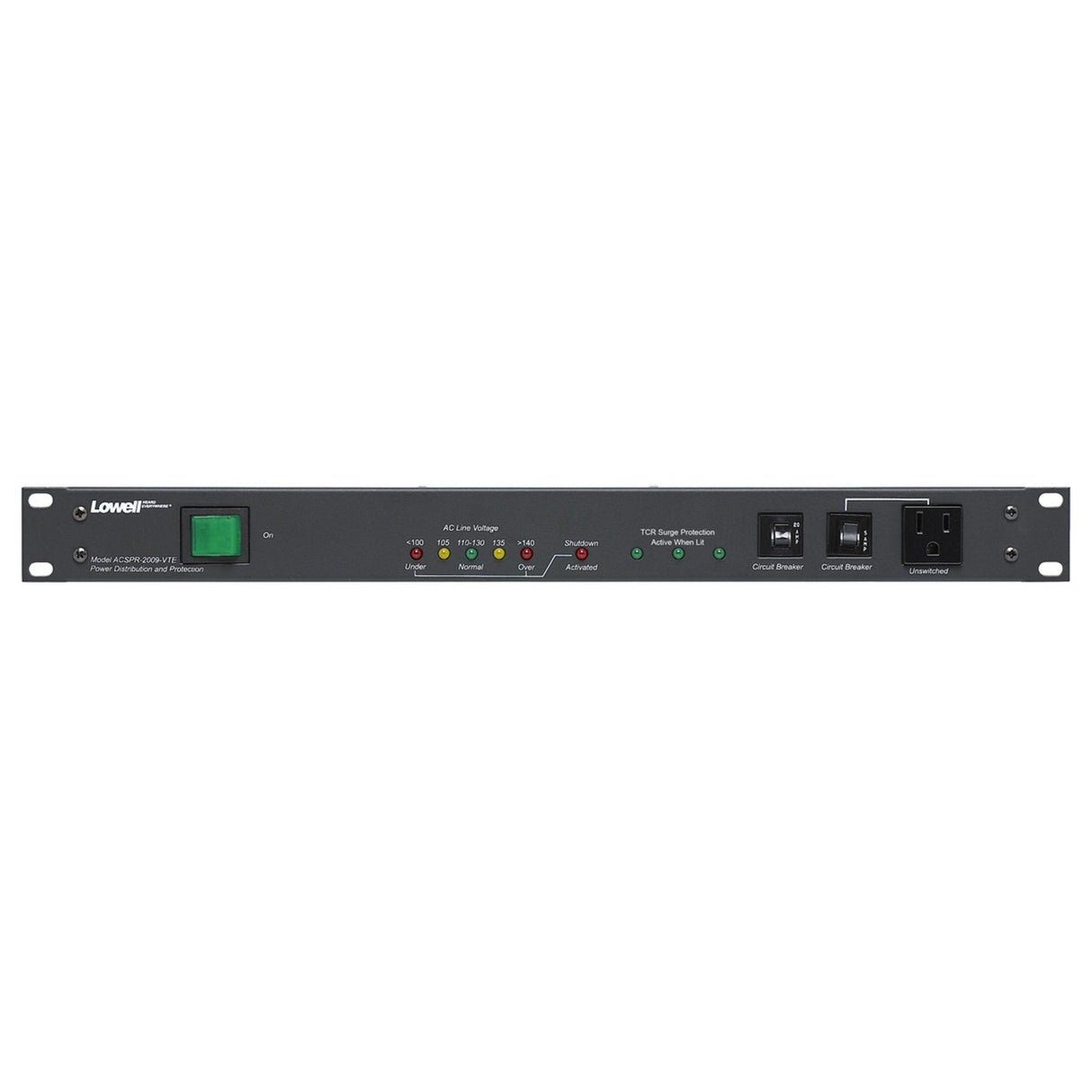

Rackmount panel for standard 19 in. E.I.A. rack features 9 power outlets, advanced surge protection and over/under voltage protection.
The AC power panel shall be Lowell Model ACSPR-2009-VTE. It'shall be ETL Listed and have a power rating of 120VAC, 60Hz/20A with EMI/RFI filtering and nine (15A/20A) outlets (4 un-switched, 5 switched). It'shall be housed in a rackmount steel chassis (19 in. x 9 in. x 1.75 in.) finished in black powder epoxy paint. Front activation shall be via a lighted rocker switch. Termination shall be via an attached 9 ft. cord with NEMA 5-20P plug. It'shall include surge protection to 72,000A. The unIt'shall include over/under voltage protection to turn outlets off when line voltage exceeds 140V or drops below 100V.
Technical Specifications
Power Rating
120VAC, 60Hz, 20A
Outlets
9 (15A/20A) NEMA outlets (1 front, 8 rear)
Termination
9 ft. attached cord with NEMA 5-20P plug
Chassis
19 in. x 9 in. x 1.75 in. (1U)
Advanced surge protection to 72,000A. LED status indicators.
On/off Switch
Lighted rocker switch controls 5 rear outlets (others are un-switched)
Voltage Tolerance Envelope Monitor with Auto Reset
Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
