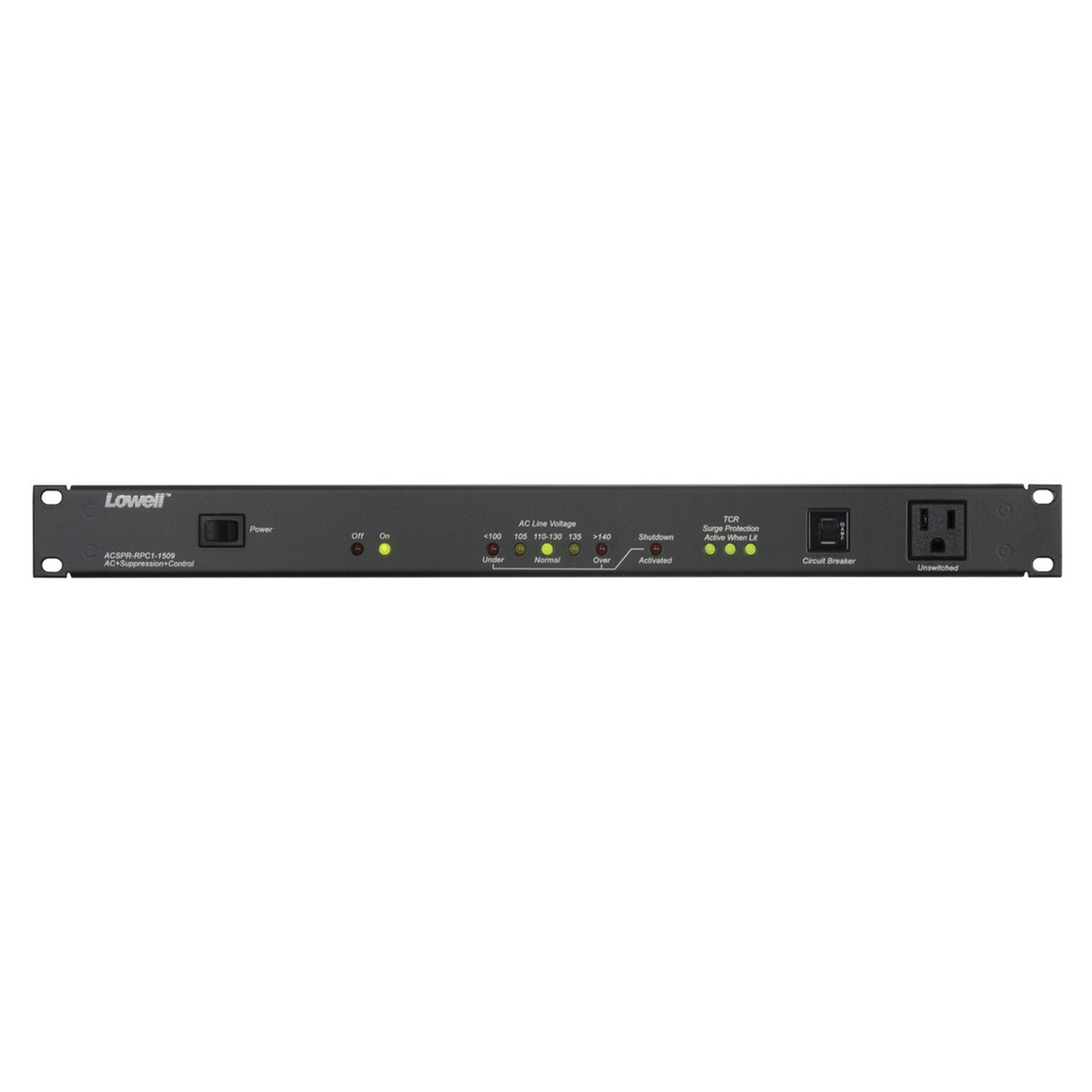

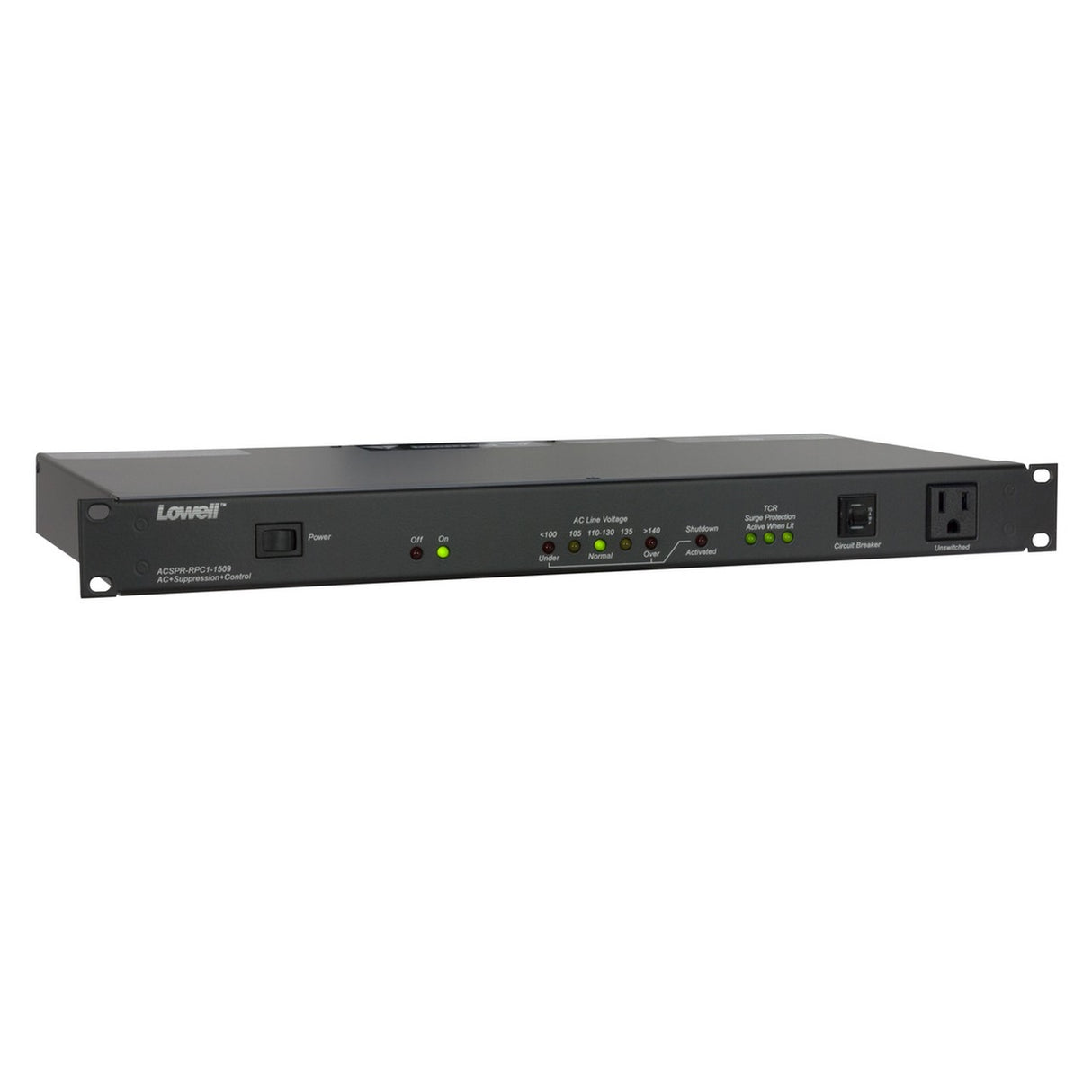

Lowell ACSPR-RPC1-1509 Power Panel-15A, 6-Switched 3-Unswitched Outlets, 1U, Surge Supp, RPC, O/U
Lowell ACSPR-RPC1-1509 Power Panel-15A, 6-Switched 3-Unswitched Out...
Lowell ACSPR-RPC1-1509 Power Panel-15A, 6-Switched 3-Unswitched Outlets, 1U, Surge Supp, RPC, O/U
Rackmount panel with 9 (15A) power outlets, advanced surge protection, over/under voltage protection, and remote power control circuitry. Rocker switch.
The AC control device shall be Lowell Model ACSPR-RPC1-1509 with surge protection, over/under voltage protection with auto re-set, remote power control circuitry, and EMI/RFI filtering. It'shall be an ETL Listed 15A device that provides safeguarded power distribution from a 1U rackmount chassis with three un-switched outlets (1 front, 2 rear) and six switched outlets that can be remotely controlled. It'shall include an alarm interface with lock on, lock off and switch lock functions. Front actuation shall be via a rocker switch. The steel chassis shall measure 19 in. x 9 in. x 1.75 in. and It'shall have a black powder epoxy finish.
Technical Specifications
Outlets
9 outlets (1 front un-switched, 2 rear un-switched, 6 rear switched)
Power Rating
120VAC, 60Hz, 15A
Termination
9 ft. attached cord with NEMA 5-15P plug
Advanced surge protection to 72,000A
Voltage Tolerance Envelope Monitor with Auto Reset
Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
Remote power control circuitry (RPC) allows for on/off control by external DSP timed events. Rear termination blocks are available for connecting remote switches (momentary) and remote triggers (maintained) for on/off functions.
Integral override facilitates use in life safety applications where fire code mandates an alarm interface.
Steel Chassis
19 in. x 9.00 in. x 1.75 in. (1U)
Activation
Rocker switch
