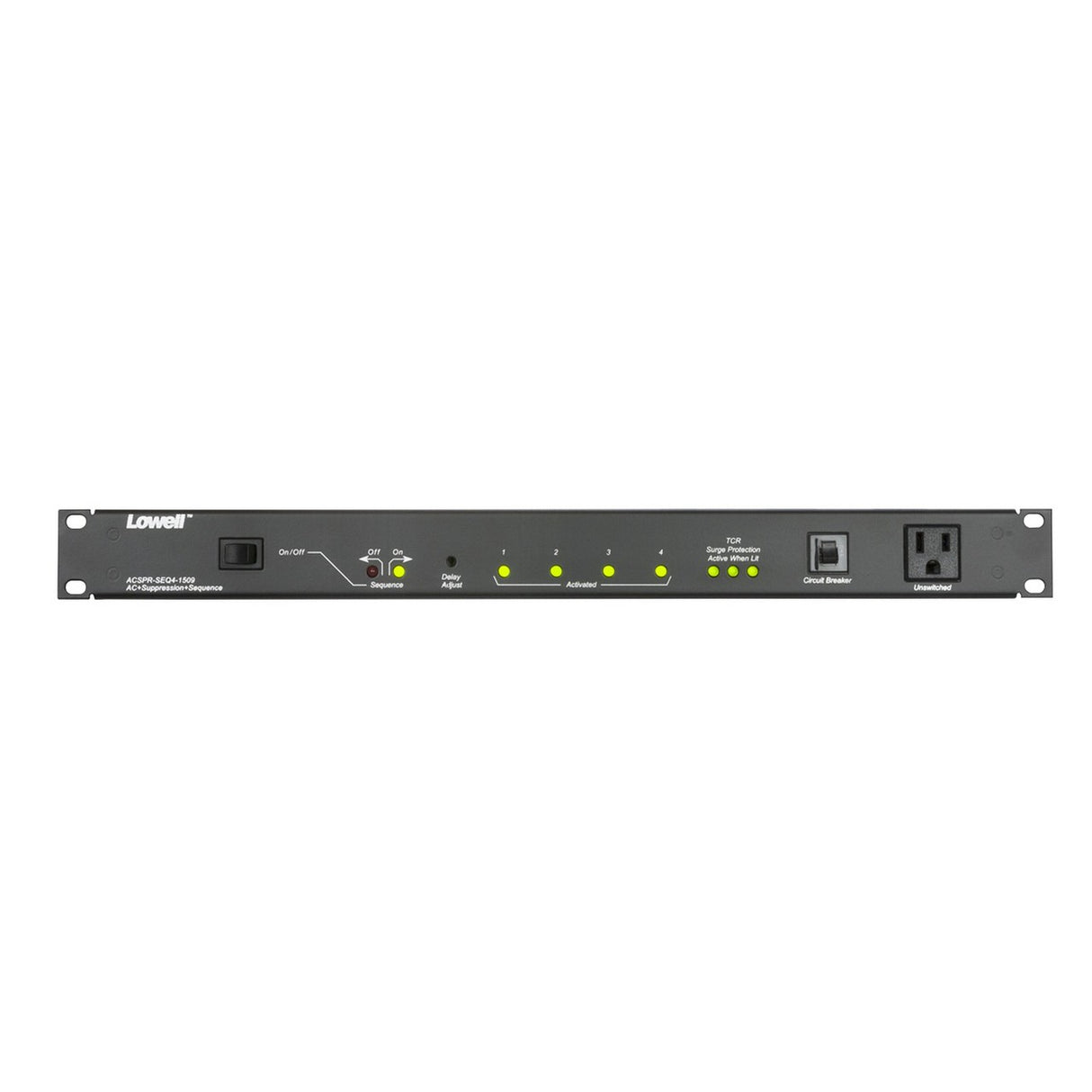

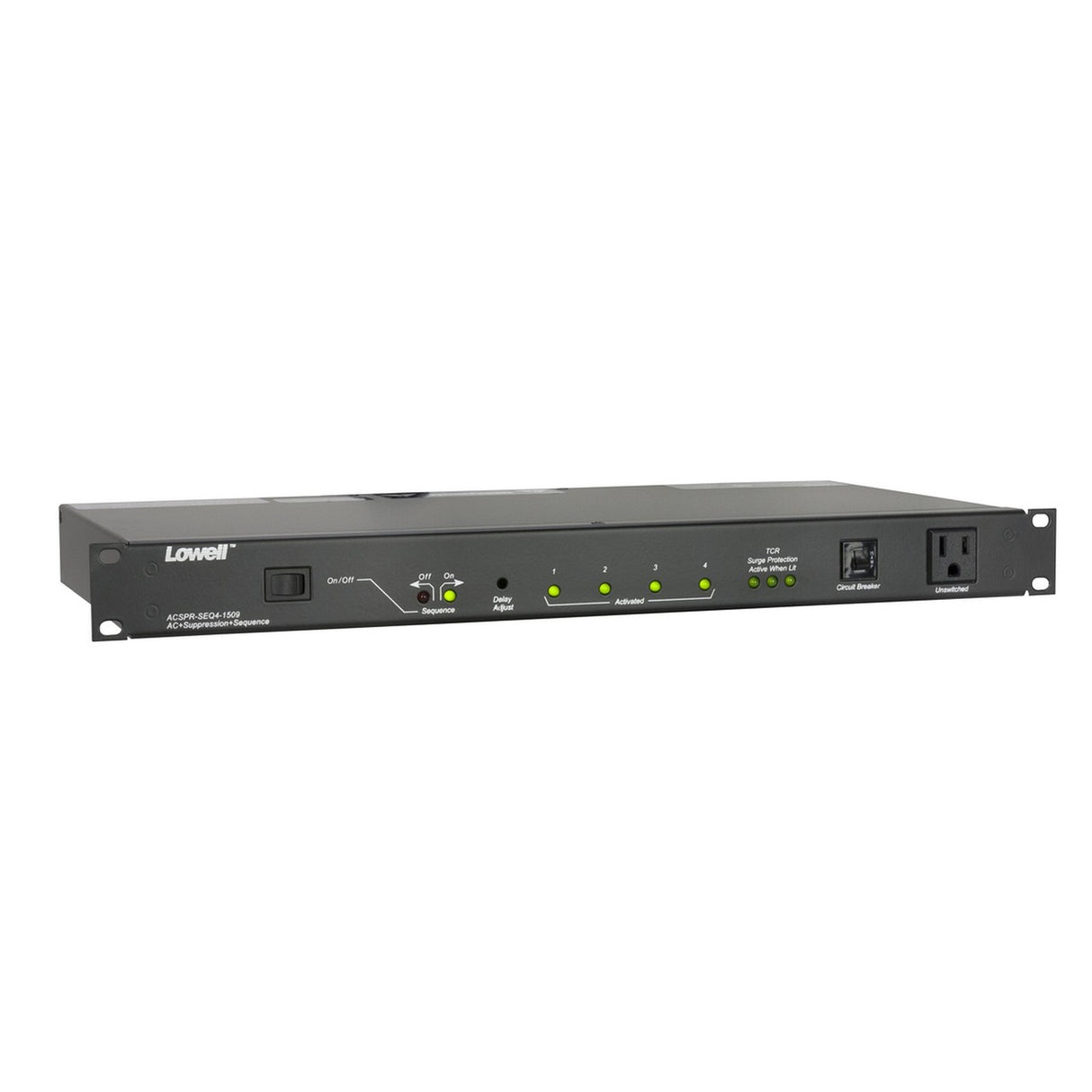

Lowell ACSPR-SEQ4-1509 Power and Sequencer

Rackmount panel with 15A power outlets and sequencer for time-delayed activation/deactivation of equipment directly plugged into the six outlets controlled by the on/off switch. Three additional outlets are un-switched (always on). Includes surge suppressor and alarm interface.

Key Features

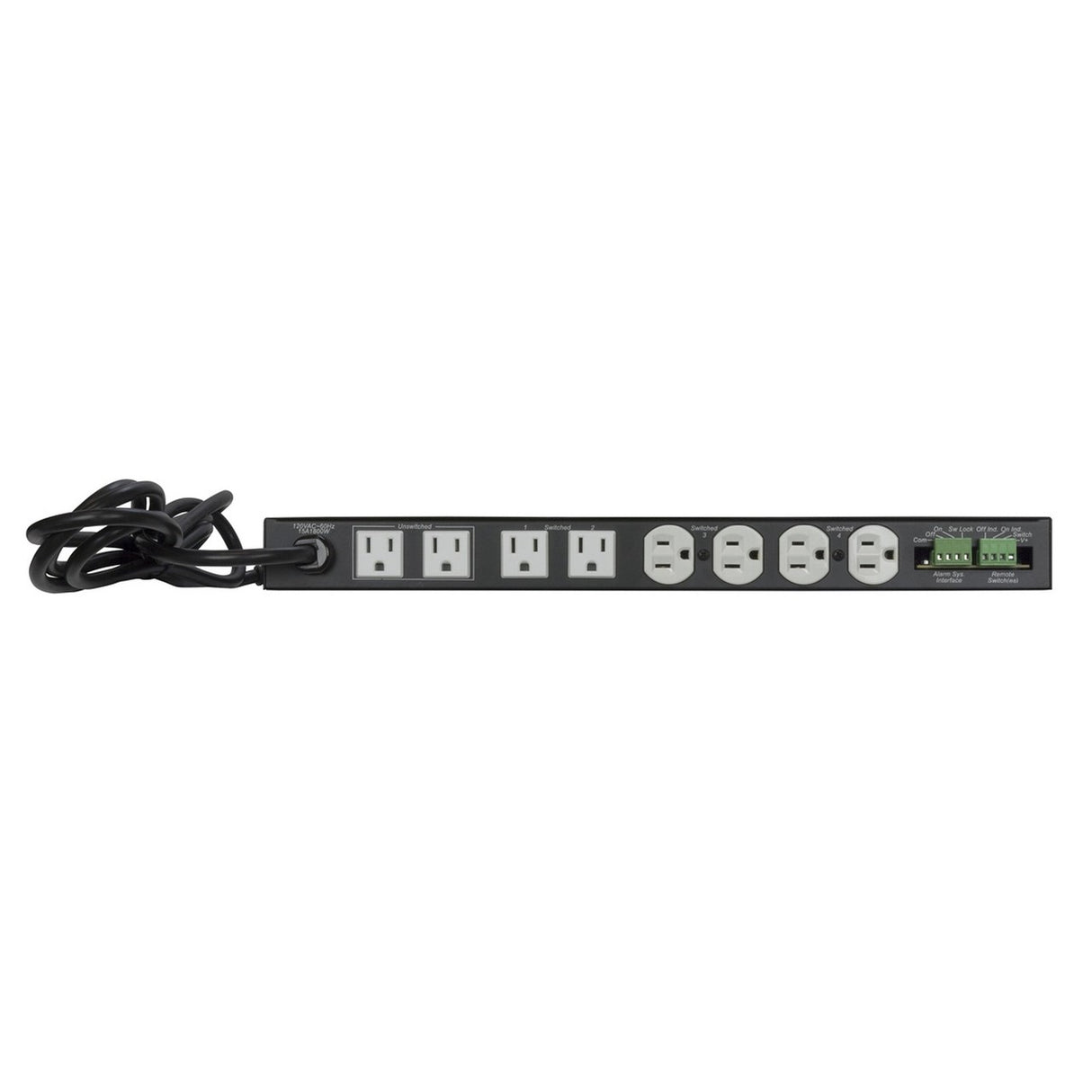

• Outlets (9 total): 1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear 15A (switched)
• Power Rating: 120VAC, 60Hz, 15A
• Termination: 9 ft. attached cord with NEMA 5-15P plug
• Advanced surge protection to 72,000A.
• Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
• Color coded LED status indicators
• Rear terminal block for connection to optional remote switches (momentary)
• Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface.
• Chassis: 19 in. x 9 in. x 1.75 in. (1U)
• On/off Switch: Rocker
