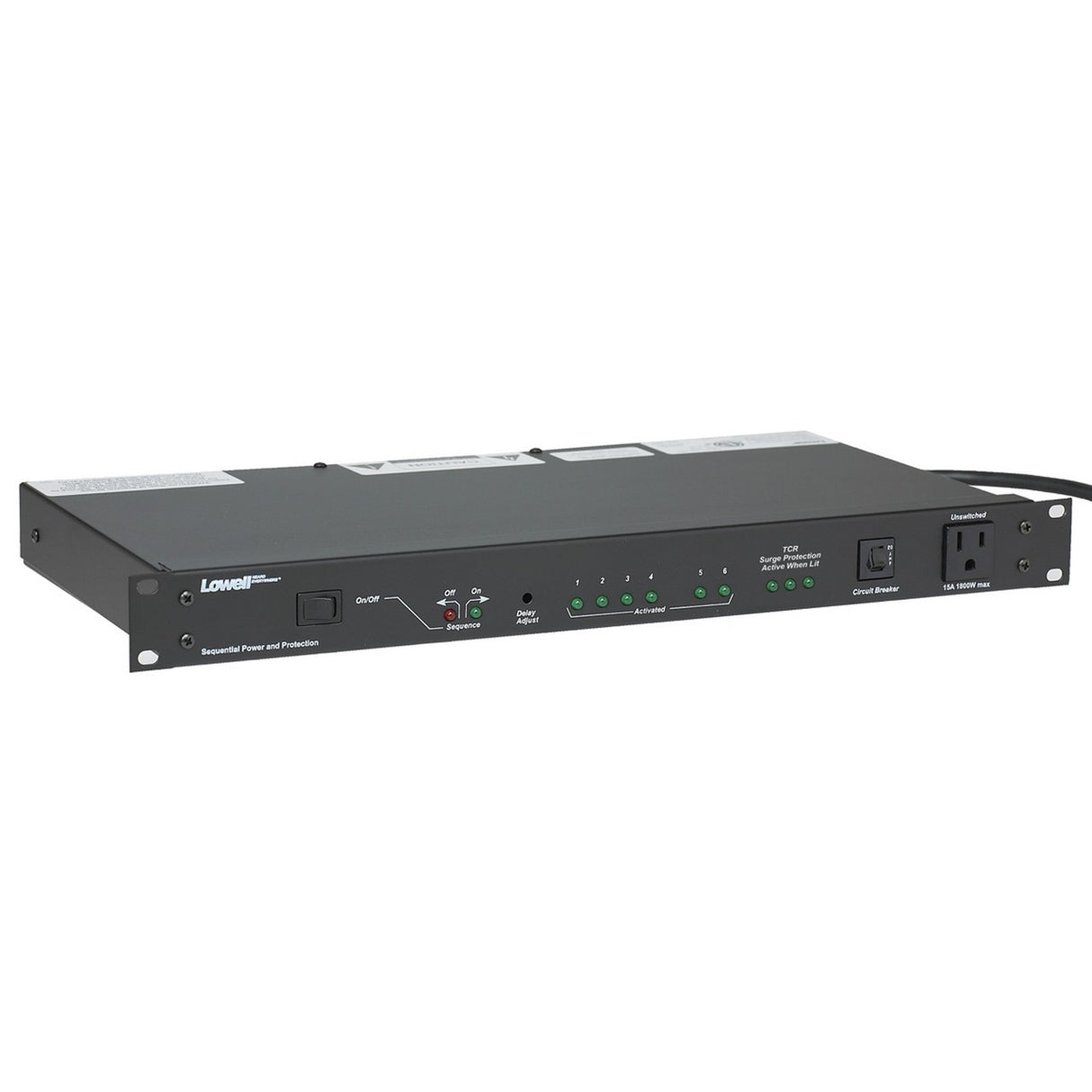

Lowell ACSPR-SEQ6-2009 Power Panel-20A, 6-Switch 3-Unswitch Outlets 15A, 4-Step + 2-Remote Seq, Surge Supp, Cord, 1U

Rackmount panel with 4 step sequential power and 9 outlets (6 switched, 3 un-switched) for sequential activation/deactivation of connected equipment. Includes alarm interface, surge suppression, and 2 dry contact closures (steps 5 and 6) for triggering remote power control units (RPC series, order separately).

The sequential AC rackmount power panel shall be Lowell Model No. ACSPR-SEQ6-2009. It'shall be ETL listed and have a power rating of 120VAC, 60Hz/20A with EMI/RFI filtering and a total of 9 outlets (6 switched, 3 unswitched) and 2 steps providing contact closures to sequentially activate/deactivate equipment (4-6 steps) with a sequence delay of 0.5 to 10 seconds. It'shall be housed in a 1U steel rackmount chassis measuring 19"W x 1.75"H x 9"D and having color-coded LEDs. Activation shall be via a rocker switch on the front panel. The panel shall also include surge protection to 72,000A.

Technical Specifications

Power Rating
120VAC 60Hz, 20A
Outlets
9 (15A) outlets-1 front (un-switched), 2 rear (un-switched), 6 rear (switched)
Actuation Switch
Front panel rocker switch with momentary contacts (normally open SPST) plus rear barrier strip termination blocks for momentary (normally open) remote switches.
Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by fire code.
Two dry contact closures (steps 5 and 6) trigger remote power control units (order separately).
Alarm Interface
Lock on, lock off and switch lock functions for alarm system or master control panel applications.
Color coded LED status indicators
Advanced surge protection to 72,000A
Chassis
19 in. x 9 in. x 1.75 in. (1U)
Termination
9 ft. attached cord with NEMA 5-20P plug
