Lowell CB84 SGA Steel Surface Mount Backbox Durable Design

Surface Mount Backbox Model CB84-SGA

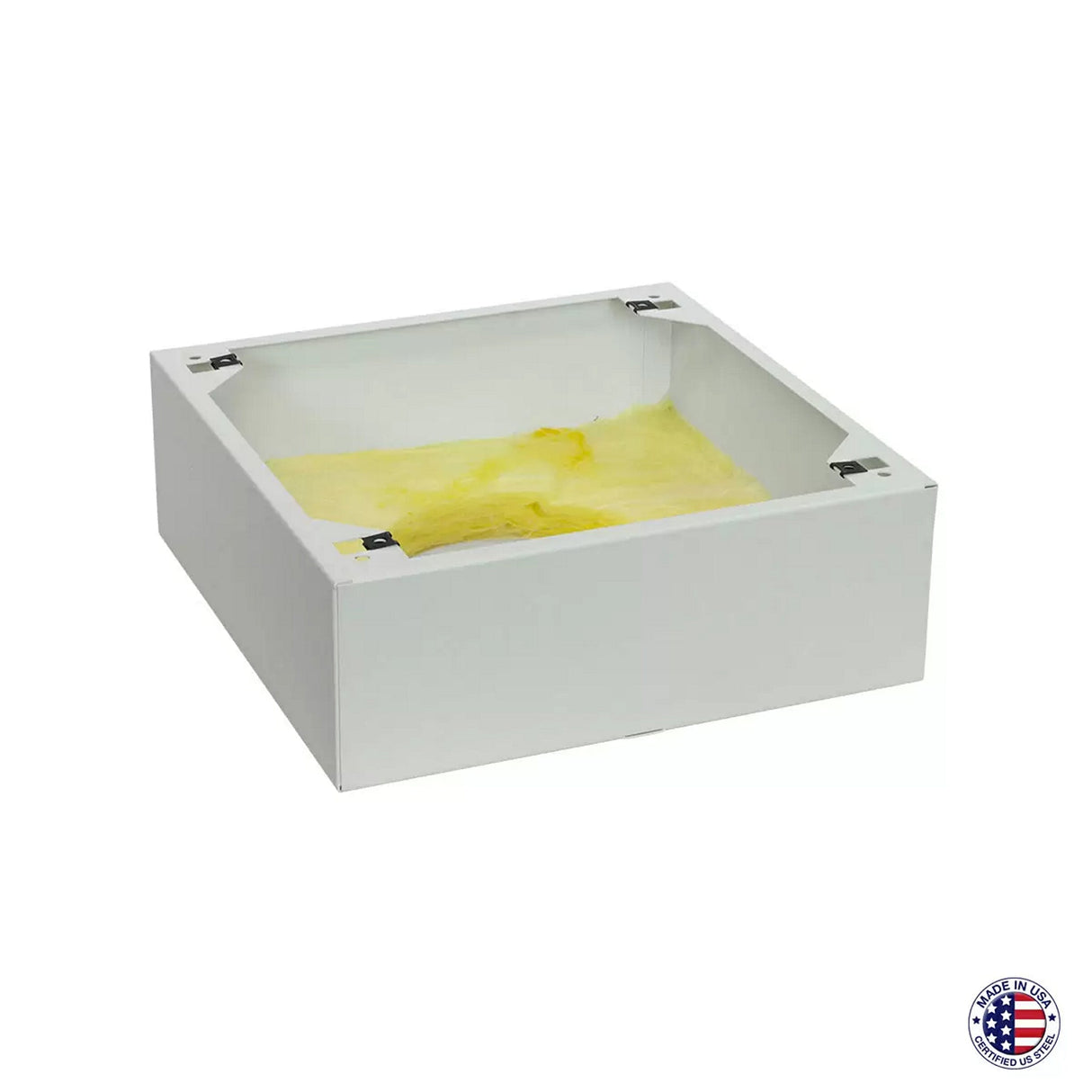

The Surface Mount Backbox Model CB84-SGA is a robust steel enclosure designed specifically for use with an 8-inch speaker and screw-mount grille. Its clean square format, finished in a durable white powder coat, makes it an ideal choice for various environments such as schools, offices, retail spaces, and hotels. This enclosure not only provides a secure housing for audio equipment but also enhances the acoustic performance of the installed speaker system, thanks to its one-inch thick batting that minimizes sound distortion.

Measuring 11.5 inches square and 4 inches deep, the CB84-SGA is constructed from 20-gauge one-piece steel with welded seams, ensuring durability and longevity. The thoughtful design includes features such as mounting aids and provisions for electrical box installation, making it a versatile solution for audio installations. The enclosure is made in the U.S.A. with certified U.S. steel, ensuring high quality and reliability.

Key Features:

• Dimensions: 11.5 in. x 11.5 in. x 4 in.
• Material: 20-gauge one-piece steel with welded seams
• Finish: White powder coat

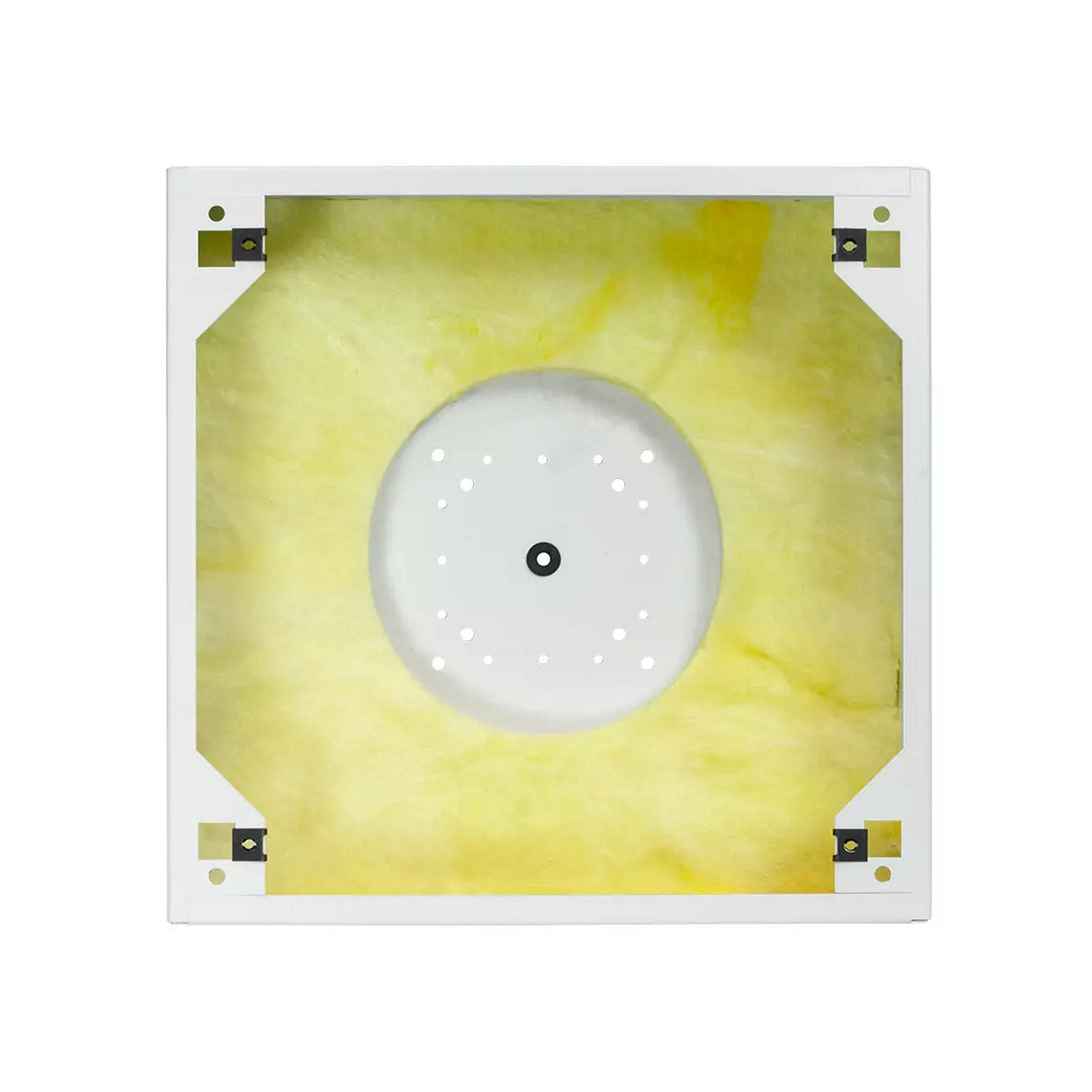

• Acoustical Treatment: 1 in. thick batting
• Grille Type: Screw-mount
• Mounting Aids: Timmerman clips on front flange

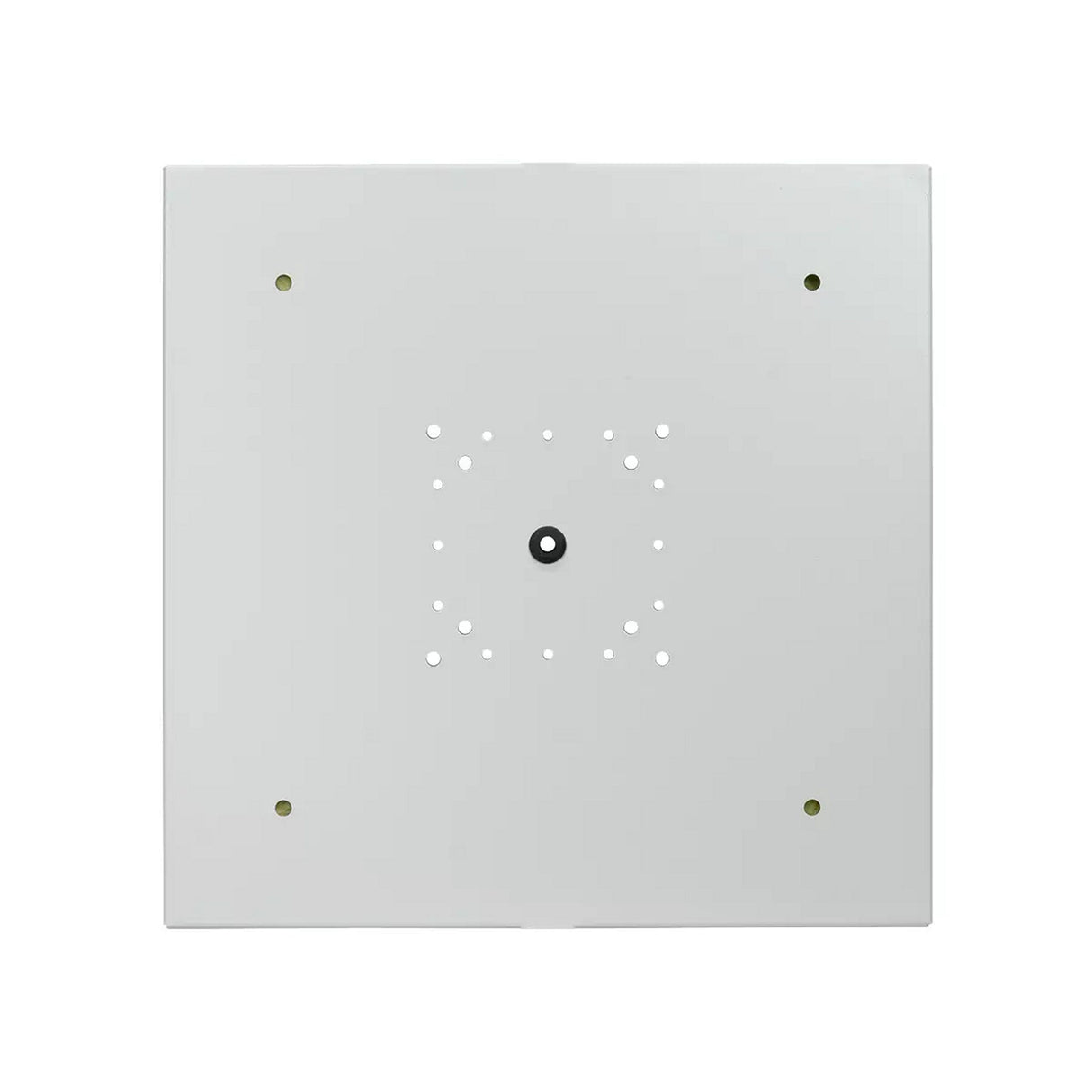

• Universal mounting pattern for electrical box (not included)
• Wire access: 0.375 in. hole with grommet
• Side knockouts for Wiremold 500 Series

Technical Specifications:

Height: 11.50 in.
Width: 11.50 in.
Depth: 4.00 in.
Volume: 0.306 cu. ft.
Construction: 20-gauge steel
Finish: White powder coat
Acoustic Treatment: 1 in. thick fiberglass batting

Package Contents:

• 1 x Surface Mount Backbox Model CB84-SGA
• 4 x 8-32 U-clips
• Installation hardware
