Lowell CS650-SS 6-Source Program Selector Switch with Volume Control, Single Unit
Lowell CS650-SS 6-Source Program Selector Switch with Volume Contro...
Lowell CS650-SS 6-Source Program Selector Switch with Volume Control, Single Unit

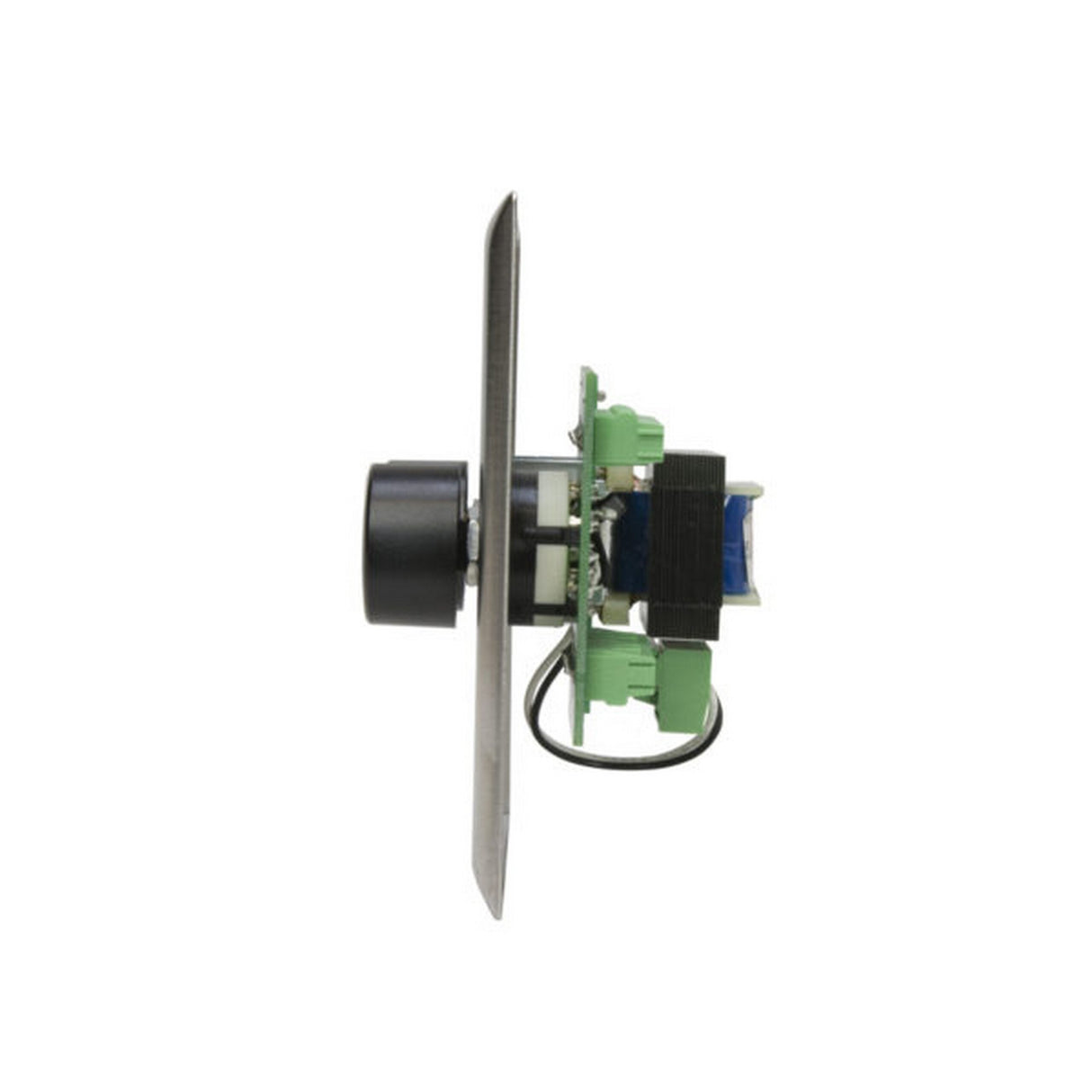

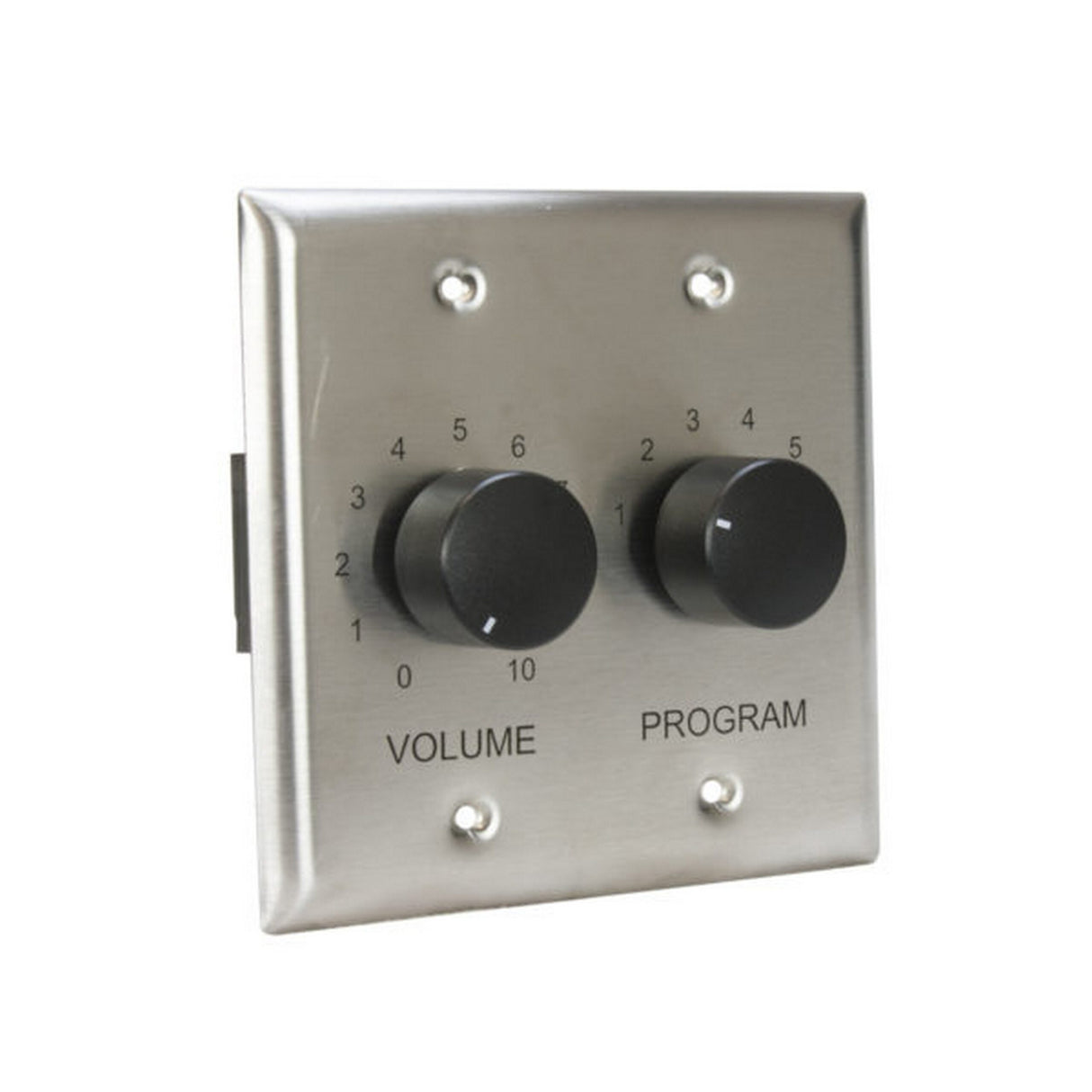

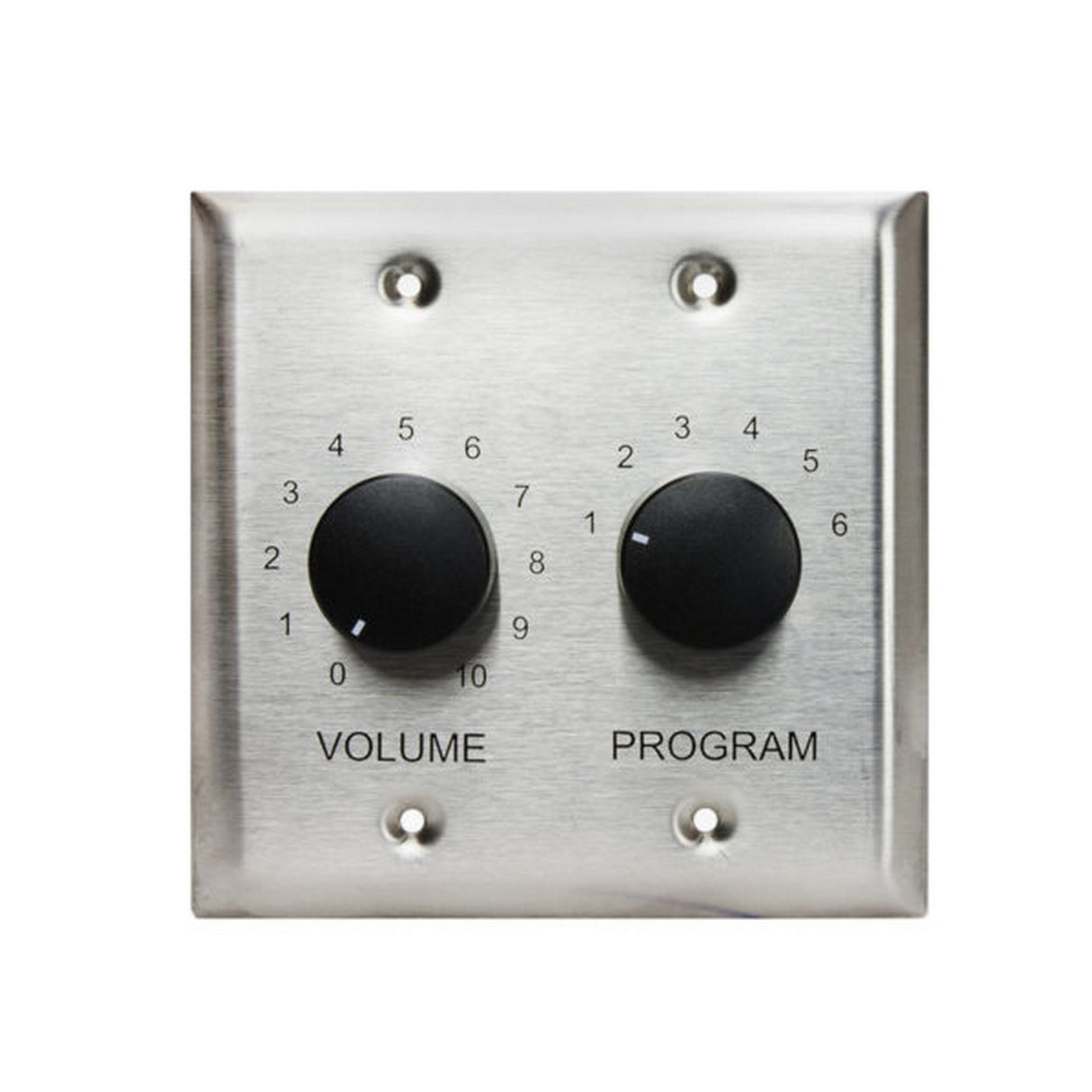

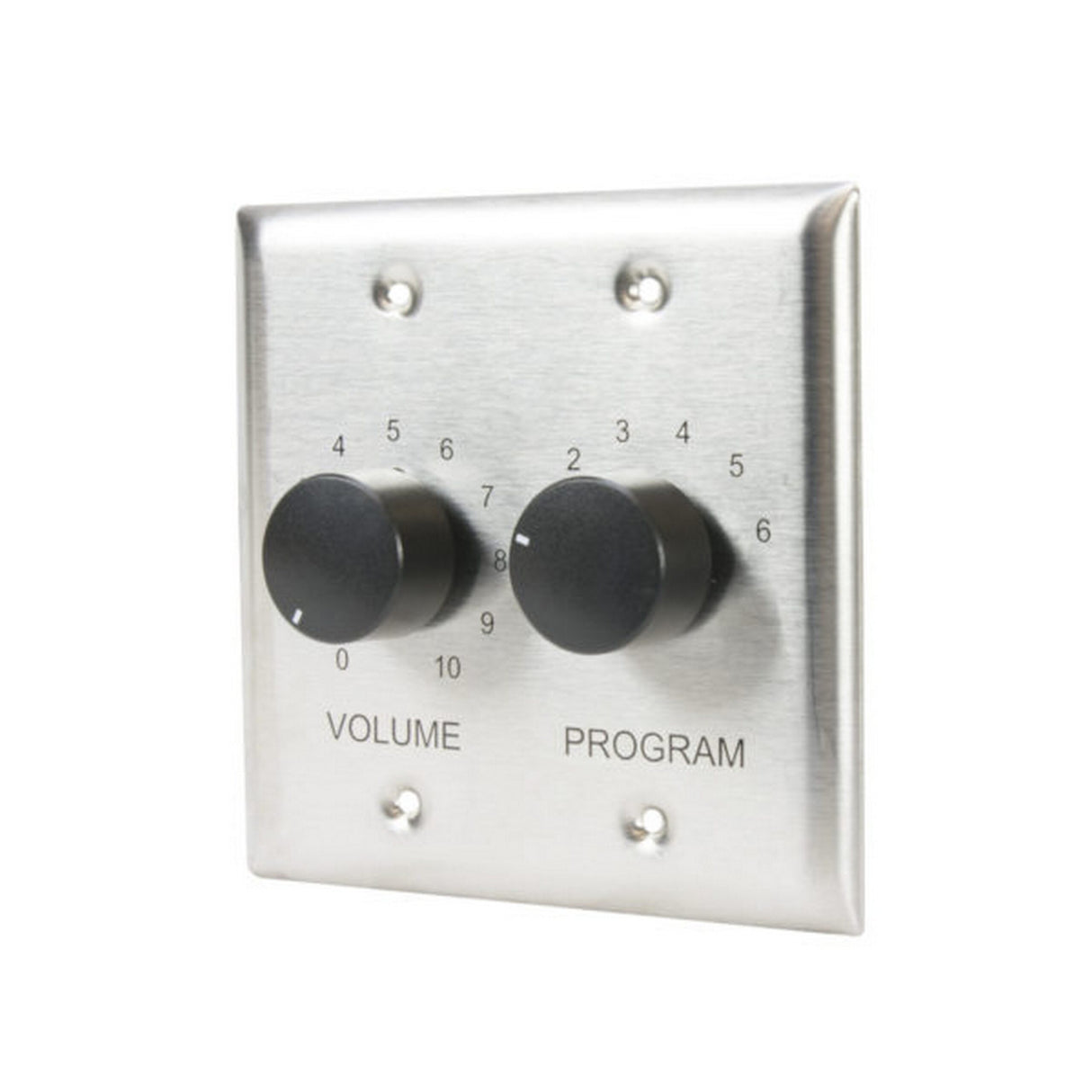

Six-source program selector switch and volume control with 2-gang wall plate.
Technical Specifications
50W volume control for use with 70V or 25V speaker lines provides 33dB attenuation in 10 steps. Last two steps before off are 6dB (33dB total). Wiring connections are plug-in screw terminations for prewire convenience.
Six-source program selector switch is two-pole, non shorting rotary style to assure complete isolation between lines. Connections are Euro-style screw terminals allowing the unit to be field connected for use together or independently.
Includes standard 2-gang wall plate plus two 1-gang plates for separate location mounting. The 2-gang plate (4.562 in. x 4.5 in. x 2.125 in.) is made to install in a 2-gang or 4 in. square E.O. box with mud ring (not included).
Includes knob and mounting screws
COMPLIANCE & CERTIFICATION
Made in the U.S.A. with global components
