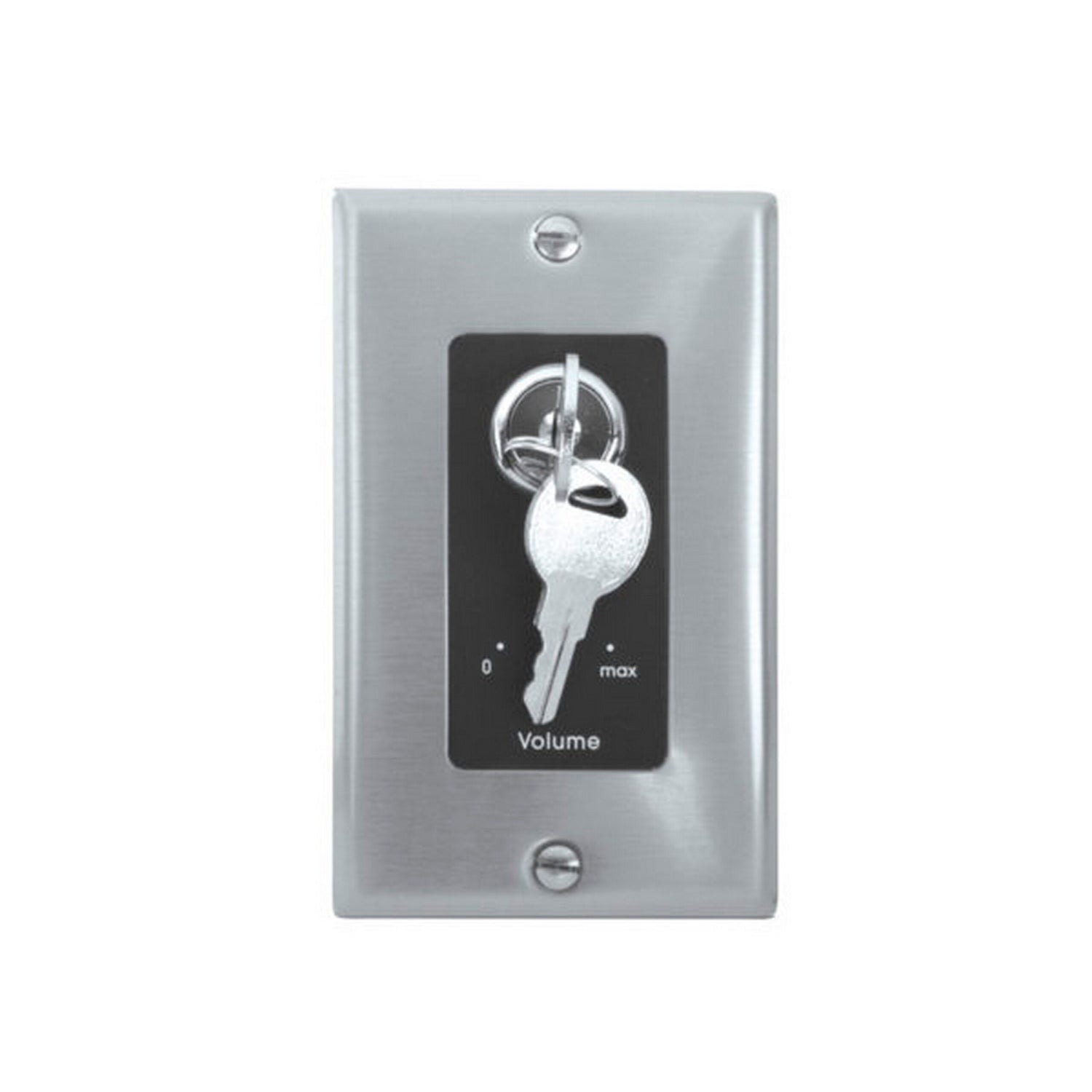

Lowell KL100-PA-DSB 100W One-Gang Decorator Wall Plate with Bypass, Stainless Steel/Black
Lowell KL100-PA-DSB 100W One-Gang Decorator Wall Plate with Bypass,...
Lowell KL100-PA-DSB 100W One-Gang Decorator Wall Plate with Bypass, Stainless Steel/Black
100W mono auto former attenuator-style volume control with key lock switch and one-gang wall plate. Patented design secures volume settings for critical paging and emergency systems. For single or multiple speaker lines. Includes priority relay for emergency bypass.
Technical Specifications
Power Rating
100W
Attenuation
3dB per step (33dB total)
Use With
25/70/100V speaker line
Activation
Key
Volume Positions
0-10
Two steps of 6dB each before off
Termination
Phoenix-style
Wire Capacity
14-gauge
Wall Plate
1-gang decorator
Finish
Stainless Steel & Black
Fits standard E.O. box (2.125 in. min. depth)
Priority Relay
24VDC @5mA relay for emergency and paging bypass
