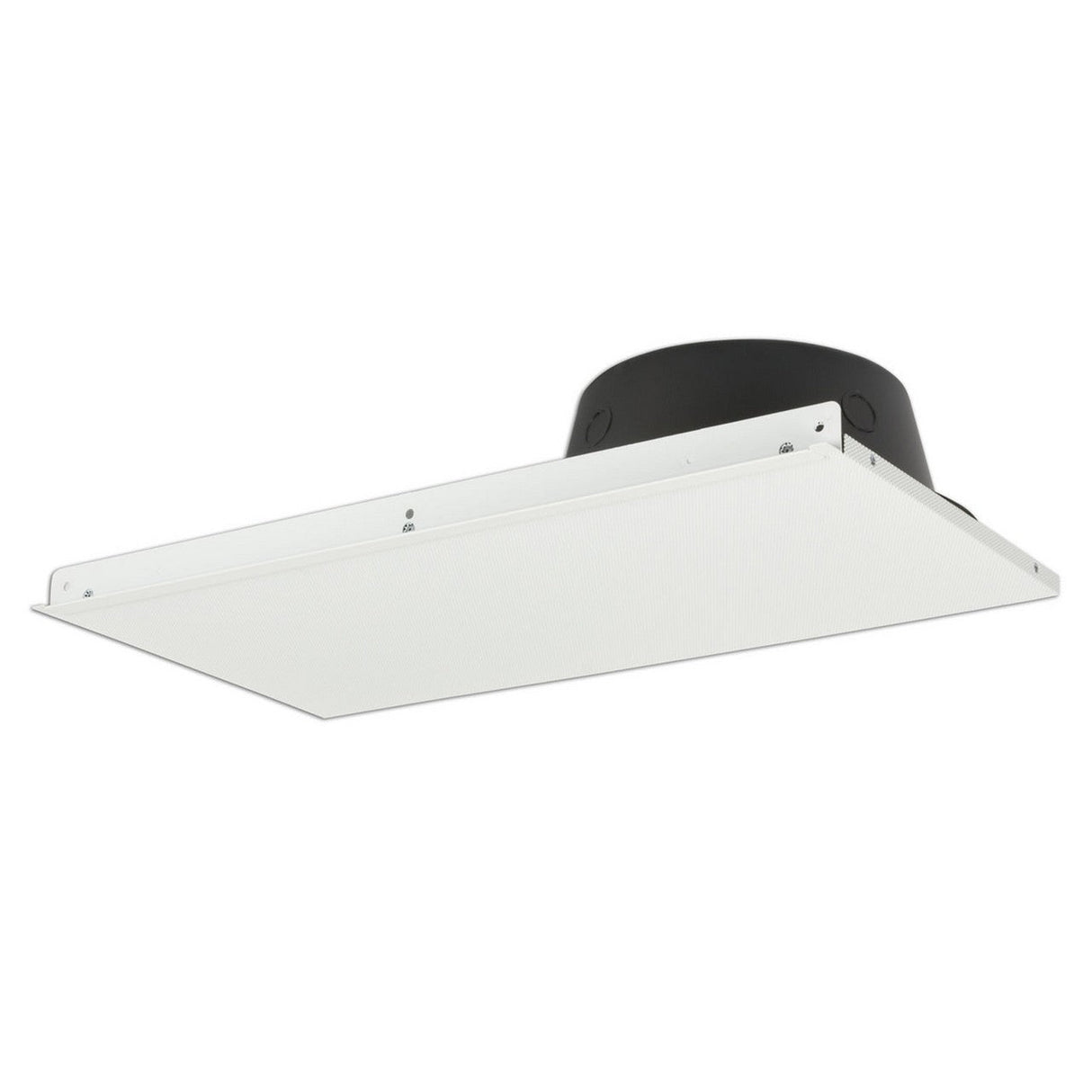

Lowell LT-810-72-BB-VC 8 Inch Dual Cone Speaker, 1 x 2 Tile System, 15W, 70/25V XFMR, 0.147 cu ft Backbox, VC, Single Unit

Lowell | SKU: LOW-LT81072BBVC
1 2
$15840

Estimated Shipping Widget will be displayed here!

Condition: New

Lowell LT-810-72-BB-VC 8 Inch Dual Cone Speaker, 1 x 2 Tile System, 15W, 70/25V XFMR, 0.147 cu ft Backbox, VC, Single Unit

Quick install speaker for suspended tile ceilings features 8 in. 15W dual cone driver, 25V/70V transformer, fine perforation grille, volume control, and.147 cu.ft. enclosure. Patented 1x2 assembly with integral T-bar quickly replaces half a non-tegular (2x2) ceiling tile. U.S. patents 7120269, D467579, 7643647.

ASSEMBLY INCLUDES

-Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (Ā±6dB) and 50Hz-20kHz (Ā±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.

-Transformer: Dual voltage 25V/70V transformer with taps at .25, .5, 1, 2, 5W.

-Grille with Subplate (1x2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

-Enclosure (.147 cu.ft.): Steel backbox with speaker leads that exit through a metal clamp for fast connection. Black.

-Mounting Aid: Patented integral T-bar supports neighboring non-tegular cut ceiling tile. Restraint tab and hole for two-cable code compliance (cables not included).

-Volume Control: Hand or screwdriver-adjustable

The speaker system for suspended tile ceilings shall be Lowell Model No. LT-810-72-BB-VC. The 1'x2' system shall replace half of a non-tegular 2'x2' ceiling tile or one-fourth of a non-tegular 2'x4' ceiling tile and shall include an integral T-bar to support adjacent ceiling tile. Each speaker system shall include a factory-mounted driver with transformer mounted to a sub-plate with a fine perforation steel grille finished in white powder epoxy. It'shall also include a volume control that is hand or screwdriver-adjustable. The driver shall be 8" dual cone with a power rating of 15W. It'shall have a magnet weight of 10 ozs., frequency response of 54Hz- 11.6kHz (Ā±6dB) and 50Hz-20kHz (Ā±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. The 25V/70V transformer shall feature primary taps at .25, .5, 1, 2 and 5W. The system shall include a steel backbox (.147 cu.ft.) with leads exiting through a metal clamp. The unIt'shall include a volume control that is hand or screwdriver-adjustable.
