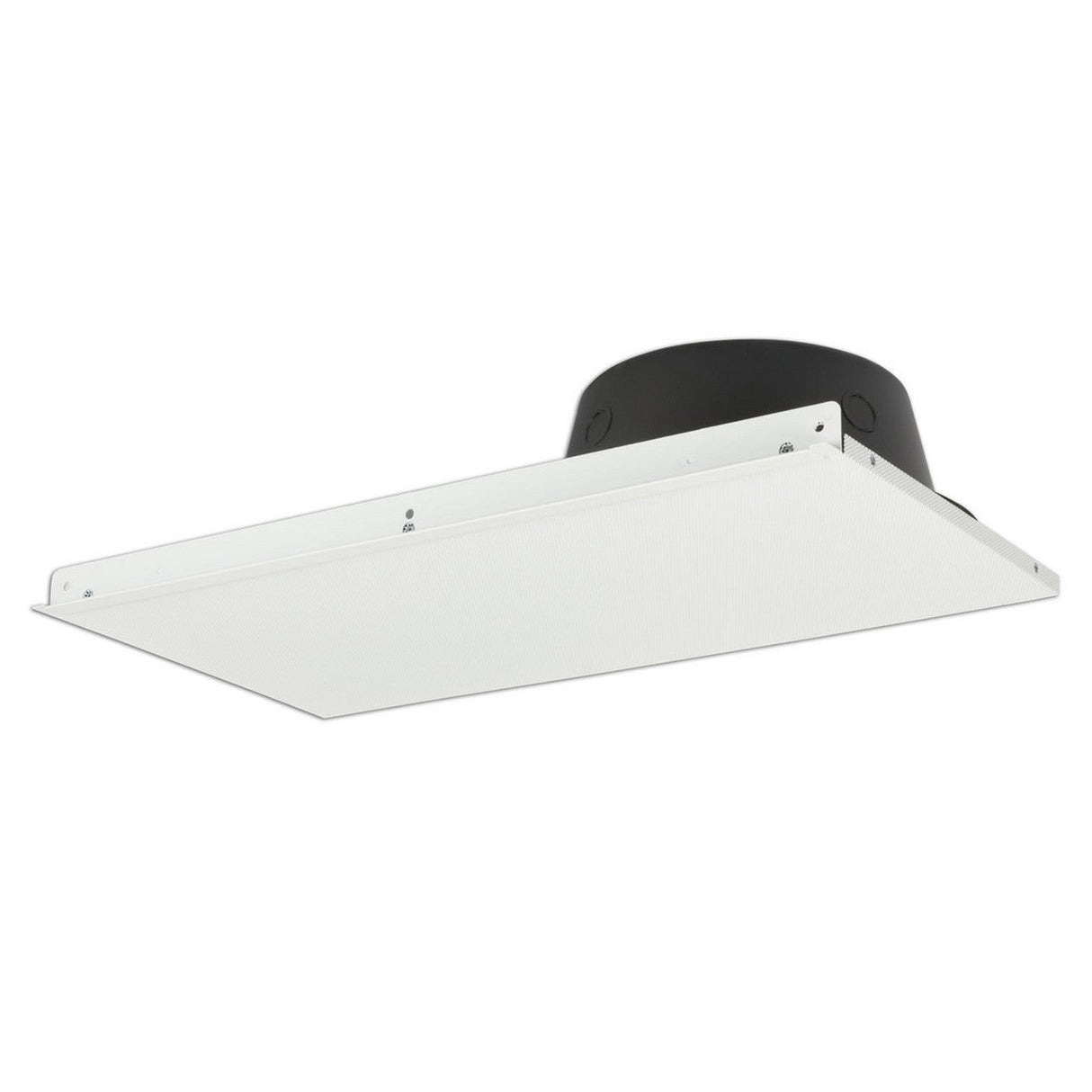

Lowell LT-810-BB 8 Inch Dual Cone Speaker, 1 x 2 Tile System, 15W, 8 ohm, 0.147 cu ft Backbox, Single Unit

Lowell | SKU: LOW-LT810BB
$12144

Estimated Shipping Widget will be displayed here!

Condition: New


Lowell LT-810-BB 8 Inch Dual Cone Speaker, 1 x 2 Tile System, 15W, 8 ohm, 0.147 cu ft Backbox, Single Unit

Quick install speaker for suspended tile ceilings features 8 in. 15W dual cone driver, fine perforation grille, and enclosure. Patented 1x2 assembly with integral T-bar quickly replaces half a non-tegular (2x2) ceiling tile. U.S. patents 7120269, D467579, 7643647.

ASSEMBLY INCLUDES

-Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (Ā±6dB) and 50Hz-20kHz (Ā±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.

-Enclosure (8XD4): .147 cu.ft. steel backbox with speaker leads that exit through a metal clamp for fast connection. Black.

-Grille with Subplate (1 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

-Mounting Aids: Patented integral T-bar supports neighboring non-tegular cut ceiling tile. Restraint tab and hole for two-cable code compliance (cables not included).

The speaker system for suspended tile ceilings shall be Lowell Model No. LT-810-BB. The 1'x2' system shall replace half of a non-tegular 2'x2' ceiling tile or one-fourth of a non-tegular 2'x4' ceiling tile and shall include an integral T-bar to support adjacent ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a subplate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 inch dual cone with a power rating of 15W. It'shall have a magnet weight of 10 ozs., frequency response of 54Hz-11.6kHz (Ā±6dB) and 50Hz-20kHz (Ā±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. The system shall include a steel backbox (.147 cu.ft.) with leads exiting through a metal clamp.
