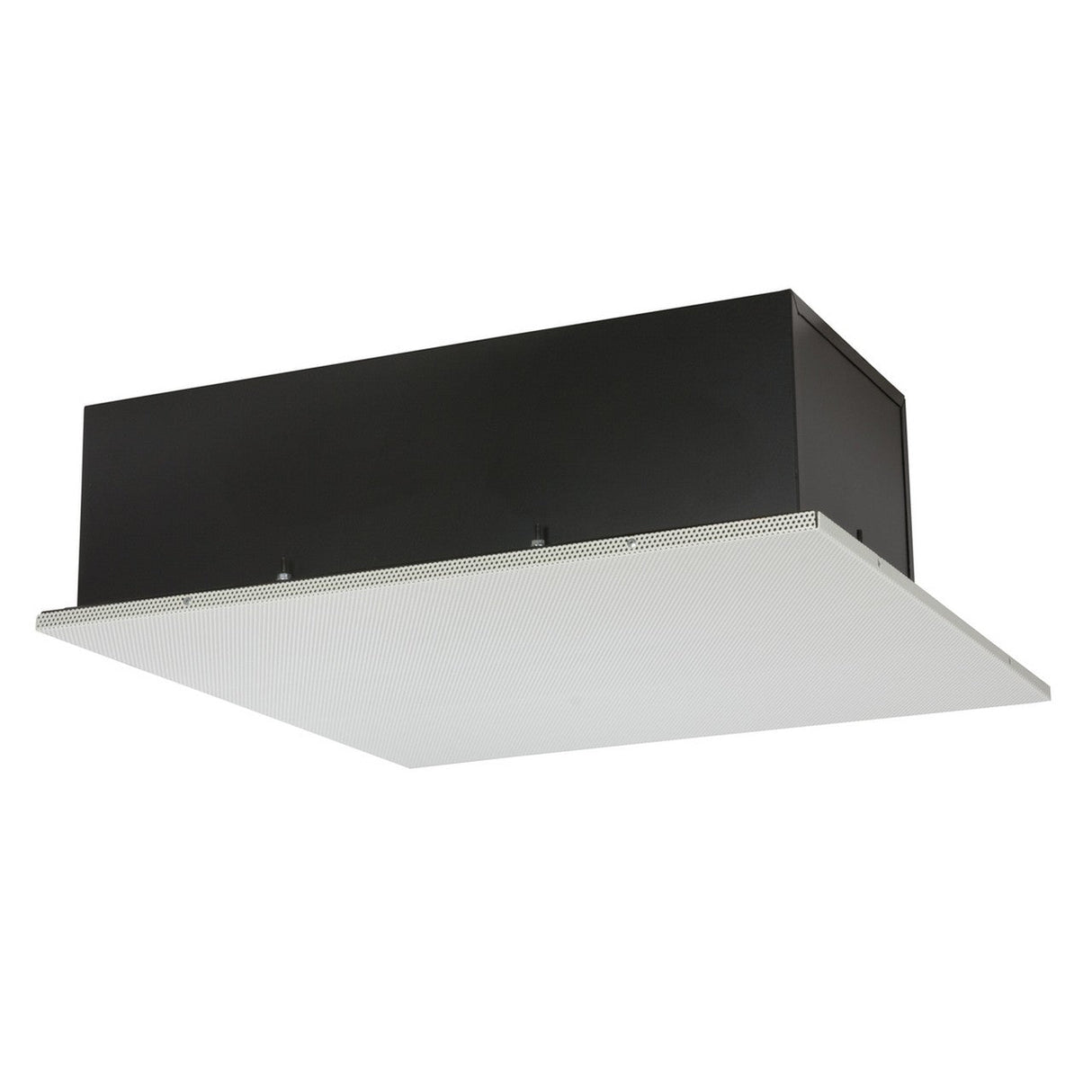

Lowell LT2-830-TM16-Vb 8 Inch Coaxial Speaker, 2 x 2 Tile System, 20W, 70V XFMR, 0.8 cu ft Backbox, Single Unit
Lowell LT2-830-TM16-Vb 8 Inch Coaxial Speaker, 2 x 2 Tile System, 20W, 70V XFMR, 0.8 cu ft Backbox, Single Unit
Quick install pro speaker for suspended tile ceilings features premium 8 in. 20W coaxial driver, 70V transformer, fine perforation grille, and .8 cu.ft. volume backbox in a 2x2 assembly to quickly replace a non-tegular (2x2) ceiling tile.
ASSEMBLY INCLUDES
-Driver (CT830A): 8 in. 20W coaxial driver with 12 oz. magnet, frequency response of 57Hz-14kHz (±6dB), 44Hz-20kHz (±7.6dB) and sensitivity of 97.0dB avg. measured 1W/1M.
-Transformer: 70V transformer has primary taps at 4, 8, 16W.
-Enclosure (.8 cu.ft.): Steel backbox with 1.5 in. thick acoustic lining. Driver leads exit through metal clamp. Backbox is offset to fit around plenum obstructions.
-Grille with Subplate (2 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.
-Mounting Aids: Restraint tabs
The speaker system for suspended tile ceilings shall be Lowell Model No. LT2-830-TM16-Vb. The 2'x2' system shall directly replace a 2'x2' ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a sub-plate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 inch coaxial with a power rating of 20W. It'shall have a magnet weight of 12 ozs., frequency response of 57Hz-14kHz (±6dB) and 44Hz-20kHz (±7.6dB) and average sensitivity of 97.0dB measured 1W/1M. The mounted transformer shall be 70V with primary taps at 4, 8, and 16W. The system shall include a steel backbox (0.8 cu.ft.) with acoustic lining. Driver leads exit through a metal clamp.
