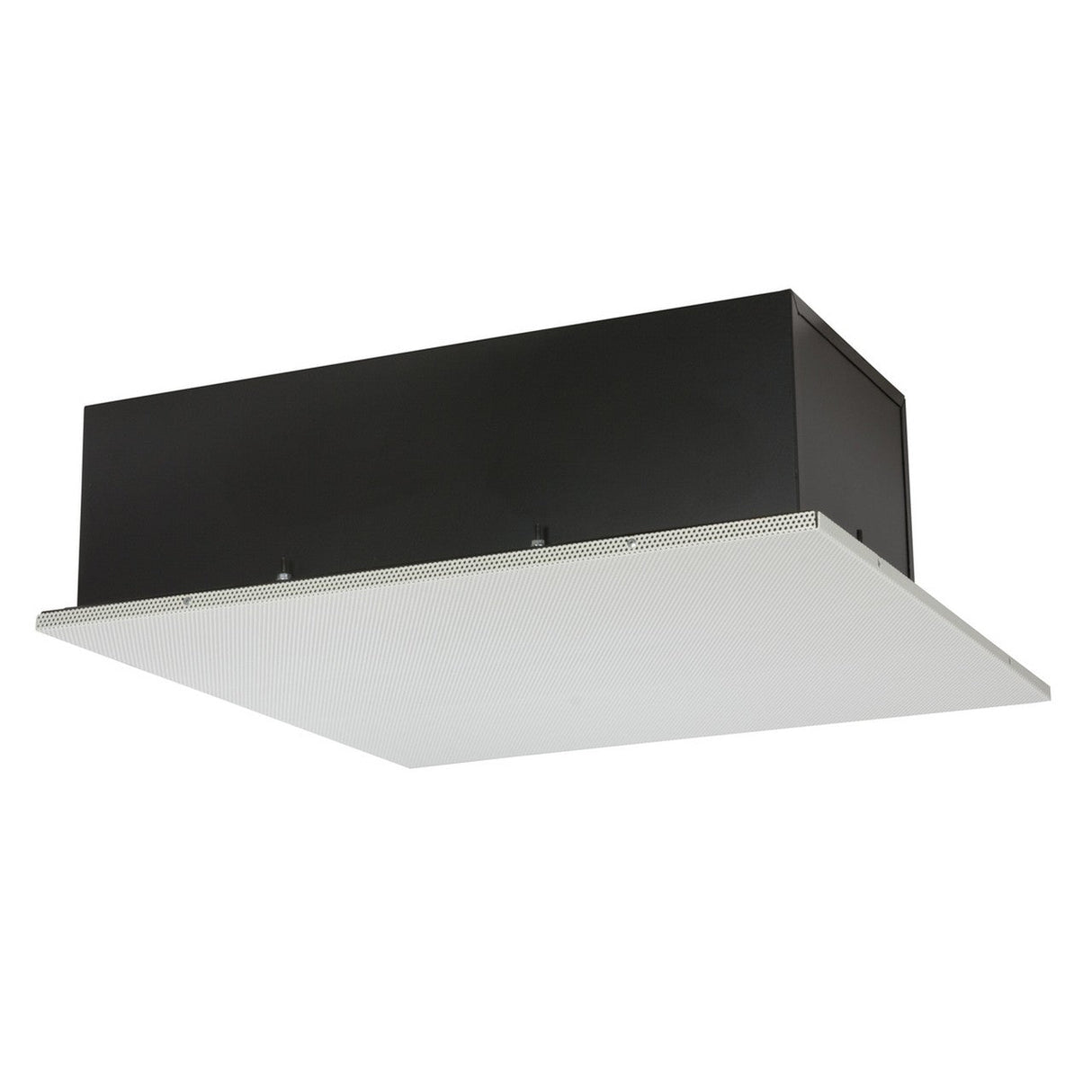

Lowell LT2-8A-T870-Vb 8 Inch Coaxial Speaker, 2 x 2 Tile System, 50W, 70V XFMR, 0.8 cu ft Backbox, Single Unit

Lowell | SKU: LOW-LT28AT870VB
1 2
$32736

Estimated Shipping Widget will be displayed here!

Condition: New

Lowell LT2-8A-T870-Vb 8 Inch Coaxial Speaker, 2 x 2 Tile System, 50W, 70V XFMR, 0.8 cu ft Backbox, Single Unit

Quick install pro speaker for suspended tile ceilings features premium 8 in. 50W coaxial driver, 70V transformer, fine perforation grille, and .8 cu.ft. enclosure in a 2x2 assembly to quickly replace a non-tegular (2x2) ceiling tile.

ASSEMBLY INCLUDES

-Driver (8A50): 8 in. 50W coaxial driver with 20 oz. LF ceramic magnet and 2 oz. HF ceramic magnet has frequency response of 40Hz-19.4kHz (±6dB) and 40Hz-20kHz (±7.3dB) and average sensitivity of 90.6dB (1W/1M). Excellent power handling and smooth sound reproduction.

-Transformer: 70V transformer with primary taps at 1.1, 2, 4, and 8W.

-Grille with Subplate (2 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

-Enclosure (.8 cu.ft.): Steel backbox with 1.5 in. thick acoustic lining. Removable dual knockout wiring compartment cover plate with combination knockouts. Driver leads exit through metal clamp. Backbox is offset to fit around plenum obstructions.

-Mounting Aids: Restraint tabs

The speaker system for suspended tile ceilings shall be Lowell Model No. LT2-8A-T870-Vb. The 2'x2' system shall directly replace a 2'x2' ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a subplate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 in.coaxial with a power rating of 50W. It shall have ceramic magnet weight of 20 ozs. (LF) and 2 ozs. (HF), frequency response of 40Hz-19.4kHz (±6dB) and 40Hz-20kHz (±7.3dB) and average sensitivity of 90.6dB measured 1W/1M. The driver shall include a factory wired 70V transformer with primary taps at 1.1, 2, 4, and 8W. The system shall include a steel backbox (.8 cu.ft.) with acoustic lining, removable dual knockout wiring compartment cover plate with 1/2 in.-3/4 in. combination knockouts, and leads exiting through a metal clamp.
