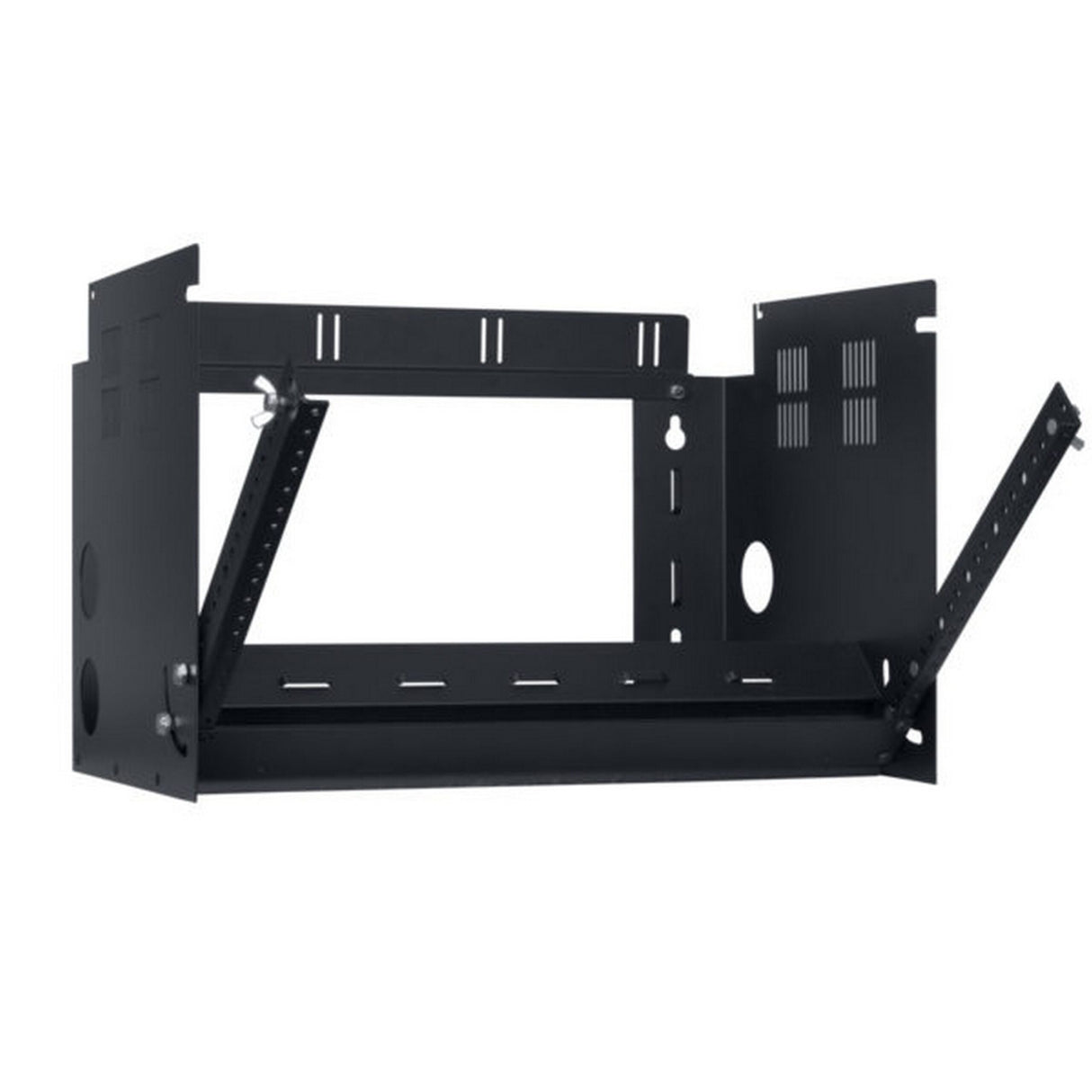

Lowell PFR-612 Pivot Frame Rack, 6U x 12 Inch Depth
Lowell PFR-612 Pivot Frame Rack, 6U x 12 Inch Depth
Lowell PFR-612 Pivot Frame Rack, 6U x 12 Inch Depth
Wall rack for networking is a great platform for voice/data equipment (patch panels, routers, hubs, network switches) to create a structured, organized cabling system. The hinged panel mounting frame pivots down 90 degrees, with an absolute stop, providing rear access to equipment for punch-down interconnects while in the fully open position.
Key Features
- Heavy gauge steel
- Integral tie loop points for cinch straps or wire ties
- Open base
- Solid sides
- One-pair fixed position mounting rails tapped 10-32
- Black semi-gloss powder epoxy finish
- Pilot Point rack screws
- Load capacity 40 lbs.
Technical Specifications
Rack Space
6U
Height
12.75 in.
Width
19.30 in.
Depth
12.00 in. (11.97 usable)
COMPLIANCE & CERTIFICATION
E.I.A./T.I.A. compliant
RoHS compliant
Certified U.S. steel
Made in U.S.A.
