Lowell RCC-2228 Remote Consolidation Cabinet, 2U+2U x 28 Inch Height
Lowell RCC-2228 Remote Consolidation Cabinet, 2U+2U x 28 Inch Height

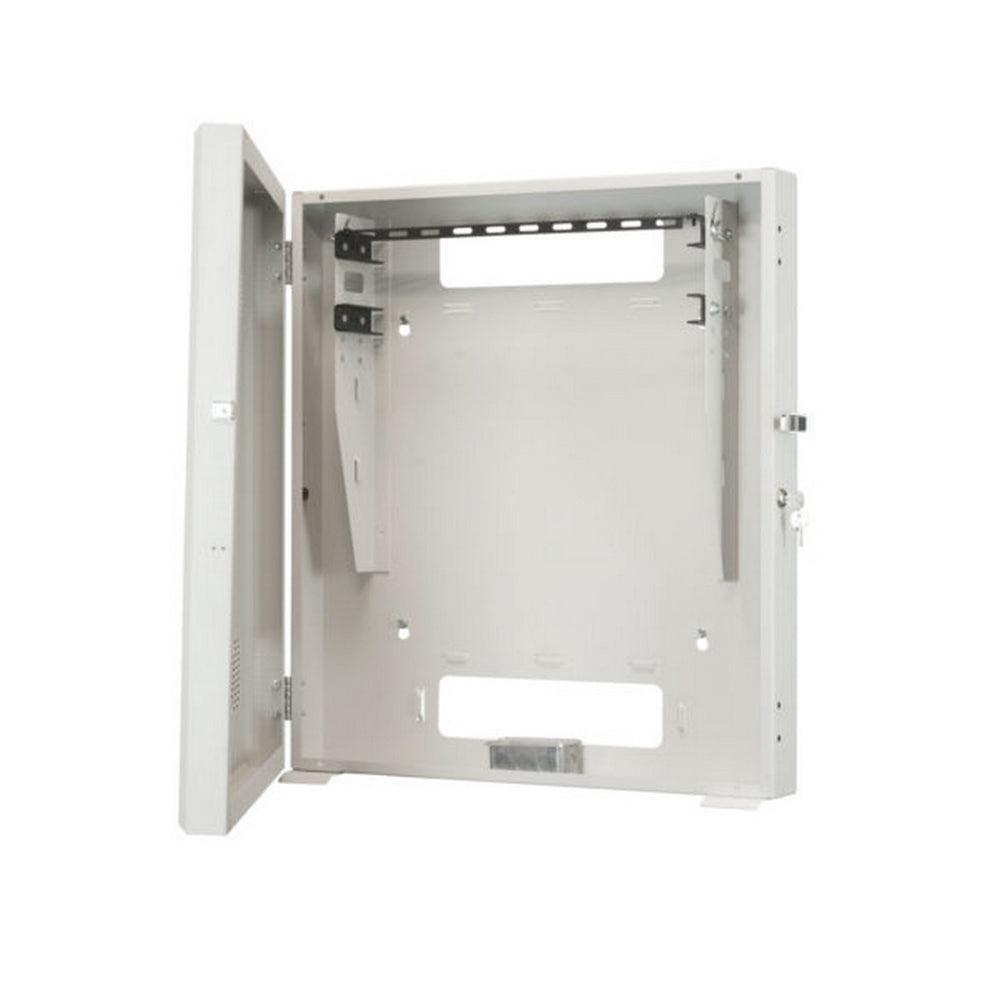

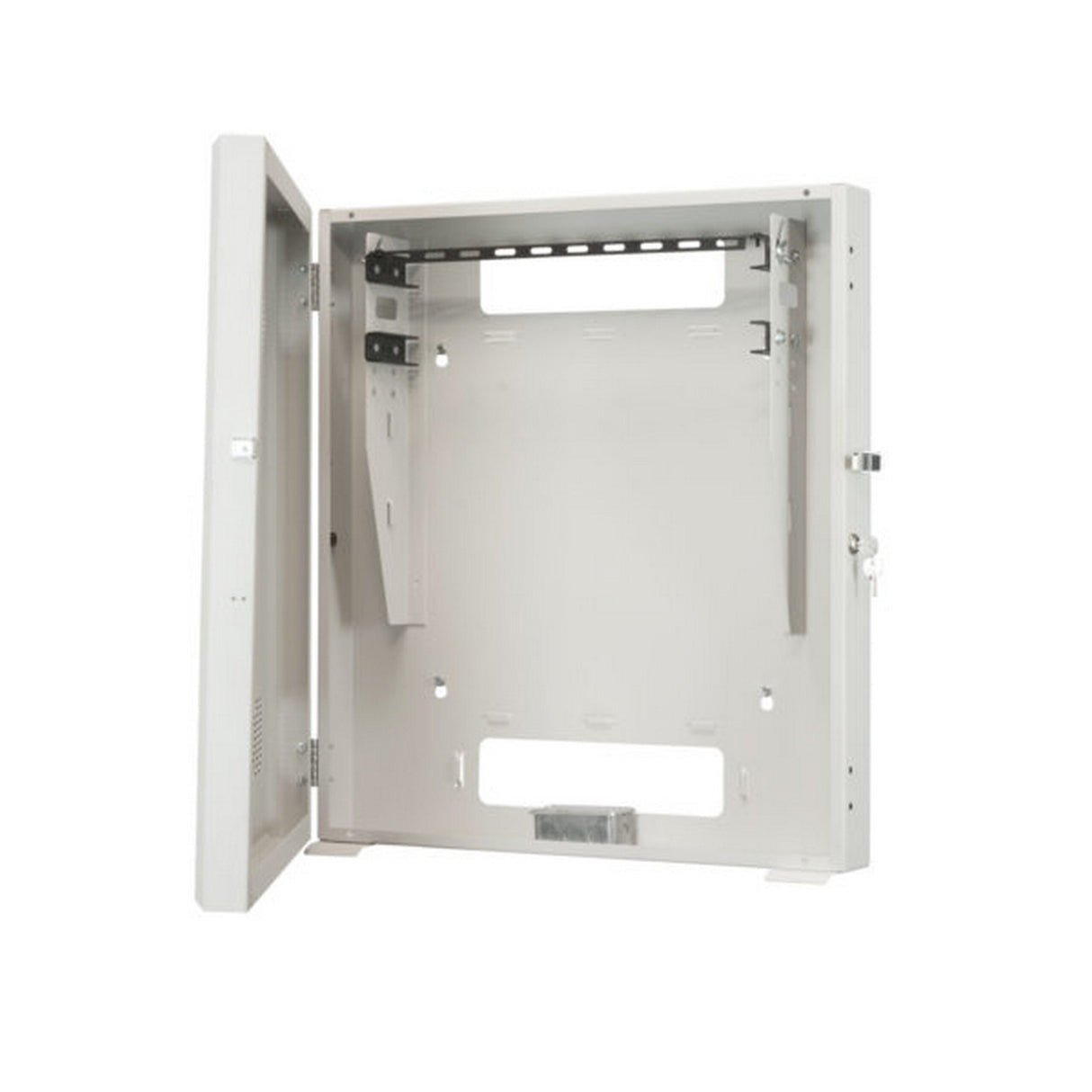

Low profile wall-mount cabinet maximizes internal space with two mounting bays with separate rail sets. The 2U upper bay allows pivot-down access for a horizontally-mounted panel such as a shallow patch panel (not included). The 2U lower bay features rails to vertically-mount hubs, servers, or similar active equipment.
Key Features
- 16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management.
- 11-gauge rails in the 2U top section will accommodate a shallow patch panel. Rails pivot down for access
- 11-gauge rails in the 2U bottom section will vertically-mount 19” equipment.
- Dual-punch rails: All rails have holes tapped 10-32 (for use with included screws) plus square openings for alternate hardware (12-24 or 6mm screws, not included).
- Vented front door with beveled edges and inset handle
- Knockouts in top and base
- Multiple bridge lances
- Vents in base accommodate (optional) single fan kits
- Includes E.O. box in base
- Side key lock
- Network Grey powder epoxy finish
- Load Capacity: 150 lbs.
Technical Specifications
Rack Space
2U horizontal plus 2U vertical
Measurements
25.5”W x 28.5”H (23”D usable) x 5”D
COMPLIANCE & CERTIFICATION
EIA/TIA compliant
Certified U.S. steel
Made in Missouri, U.S.A.
