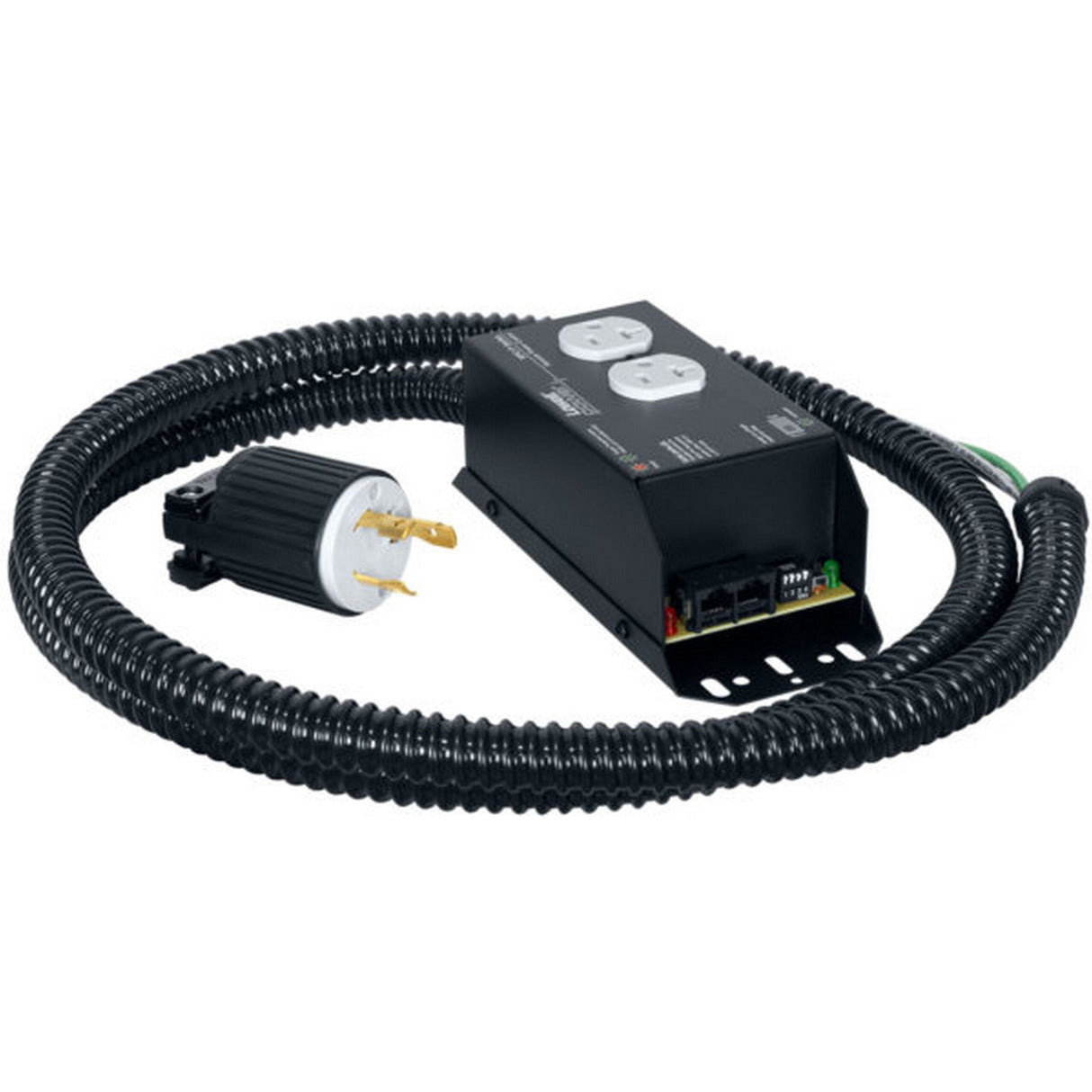

Lowell RPC-P20-SHW Pass-Through Remote Power Control, 20A, 5-20R Duplex Outlet, Hardwired
Scalable, labor-saving installation with pass-through RJ45 jacks (for Cat5/Cat6 cable), and quick changes to the order of sequencing via an onboard switch. Note that sequencer #SEQ-P4 is required to activate RPC-P Series remote power controls (order separately).
Technical Specifications
Chassis: Steel with black finish, 7.5 in. x 3.25 in. x 2.75 in
Power Rating: 125VAC, 20A
Power Inlet: 6 ft. flexible conduit (non-metallic)
Power Outlets: NEMA 5-20R duplex
RJ45 jacks (2)
DIP Switch: Because the sequence step is selected via the switch on each RPC-P unit, the startup sequence can be quickly modified without re-wiring.
Activation: This model requires sequencer (#SEQ-P4) with an external trigger (SPST switch or DSP voltage connection) for activation.
Multiple RPC-P units can be connected to each other (or compatible relays) to control all from a single location (up to 20 RPC-P units per step)
This model includes surge suppression (20,000A max. surge current)
