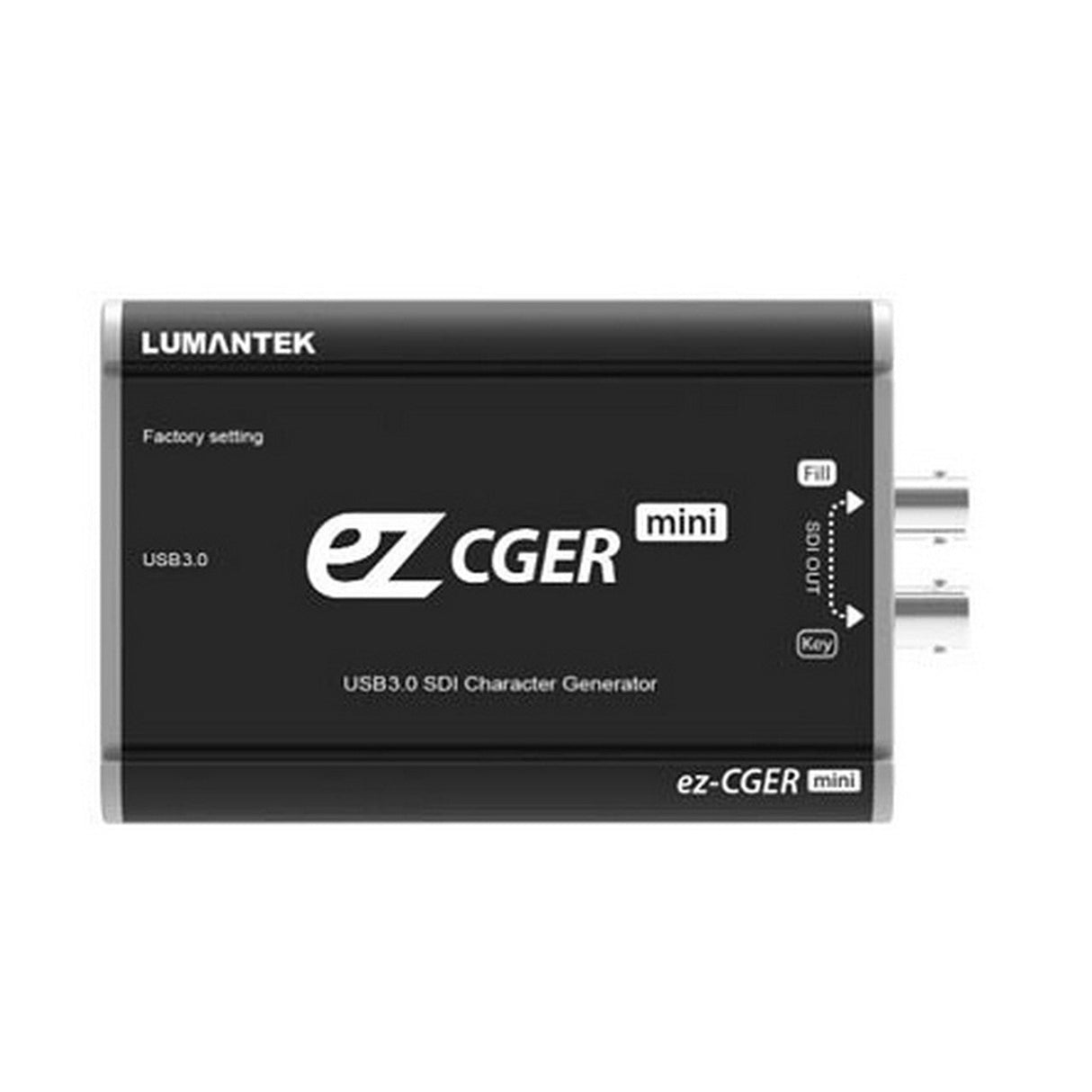

Lumantek ez-CGER Mini USB Fill and Key
Lumantek ez-CGER Mini USB Fill and Key
Free Shipping
Lumantek ez-CGER Mini USB Fill and Key
ez-CGER Mini is a simple and the smallest HD live graphic system for live conference and active video pre-sentation. User can create and present powerful on-screen CG and texts in realtime using PC. ez-CGER and CGER software are connected via USB 3.0 and generate Fill/Key signals to HD-SDI port.
Key Features
- Mini converter type compact design character generator (LIVE CG Fill/Key)
- Easy install trough USB3.0 / CG Output (Fill/Key Output)
- Support various images and sequences (JPG, PNG, BMP, GIF, TGA)
- Support various movie clip formats (WMV, AVI, MP4)
- Scroll test effect for broadcasting
Technical Specifications
Input
Fill & Key Input: USB 3.0 x1
Output
Fill & Key Output: SDI x2 (Fill out x1, Key Out x1)
USB Devices
USB3.0 Video Streamer Device: Fill & Key Input
USB2.0 USB to Serial (COM Port) Device: Control
USB2.0 USB to SPI Device: Firmware Update
Internal Video Processing
YCbCr 4:2:2 10bit
Resolution Supported
1280x720p@60/59.94/50
1920x1080i@60/59.94/50
Management
USB: Easy to use GUI application, Firmware Update
Physical
Operation Temperature: 0~40
