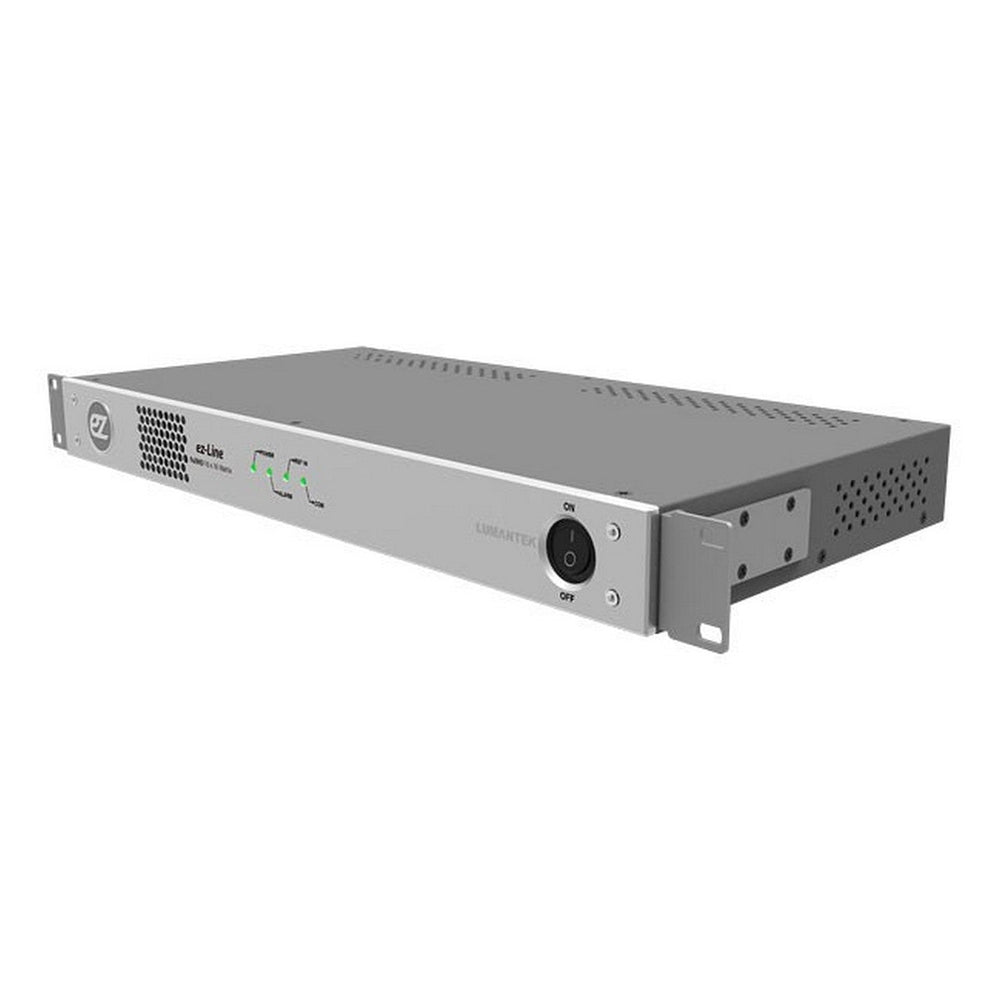

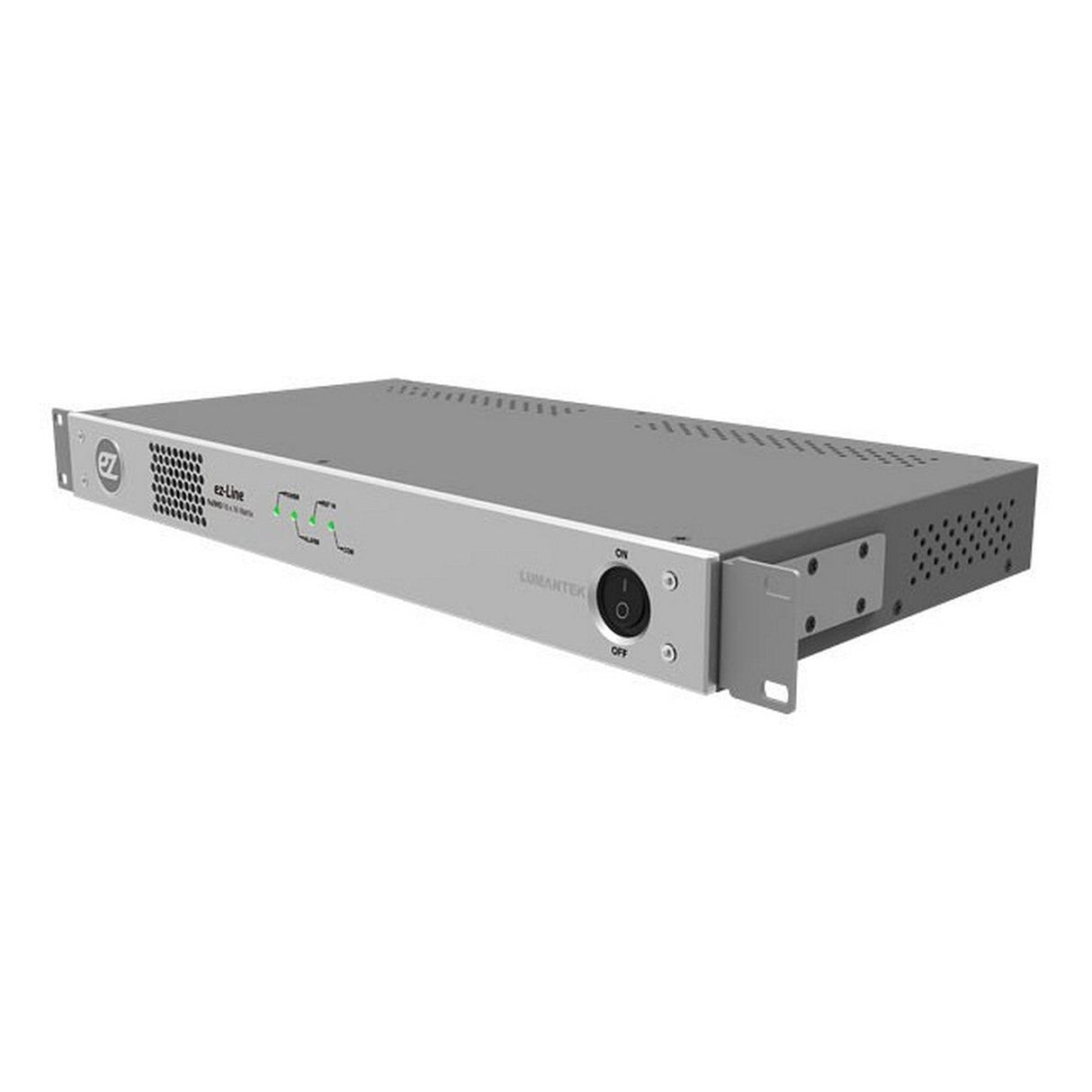

Lumantek ez-Line VM16 VM16 ez-Line 16x16 Router
ez-Line (HD-SDI 16 x 16 Router) supports the standard HD-SDI signal and can configure HD broadcast signal input/output. Through this unit user can send sharp and clear signals. In addition to this, user can utilize this device function and use variety purposes such as splitter and selector.
Key Features
- Cost saving simple system
- Build for quality in quality out
- 1RU/ Right size for typical AV setups
- Ideal Signal Control media
- Ethernet Control (Main unit) compatible
- Common 16 x 16 3G SDI in and output layout
- Simple web browser control
- 1RU RCP Direct via RS-422 connection
- Best suits your production environment
Technical Specifications
Input
SDI Video Input: SD/HD/3G-SDI (BNC 75OHMS) x16
Reference Input: B.B , TRI (BNC 75OHMS ) x1
Output
HD-SDI: SD/HD/3G-SDI (BNC 75OHMS) x16Connections
Remote Control: RS-422 (RJ45)x1
Ethernet: Ethernet Support (RJ45)x1
Update: Debug (Micro-USB)x1
Electrical
Power Input: 100~240VAC @ 50/60Hz
Power Consumption: 18W(max.)
Operation Temperature: 0~40
