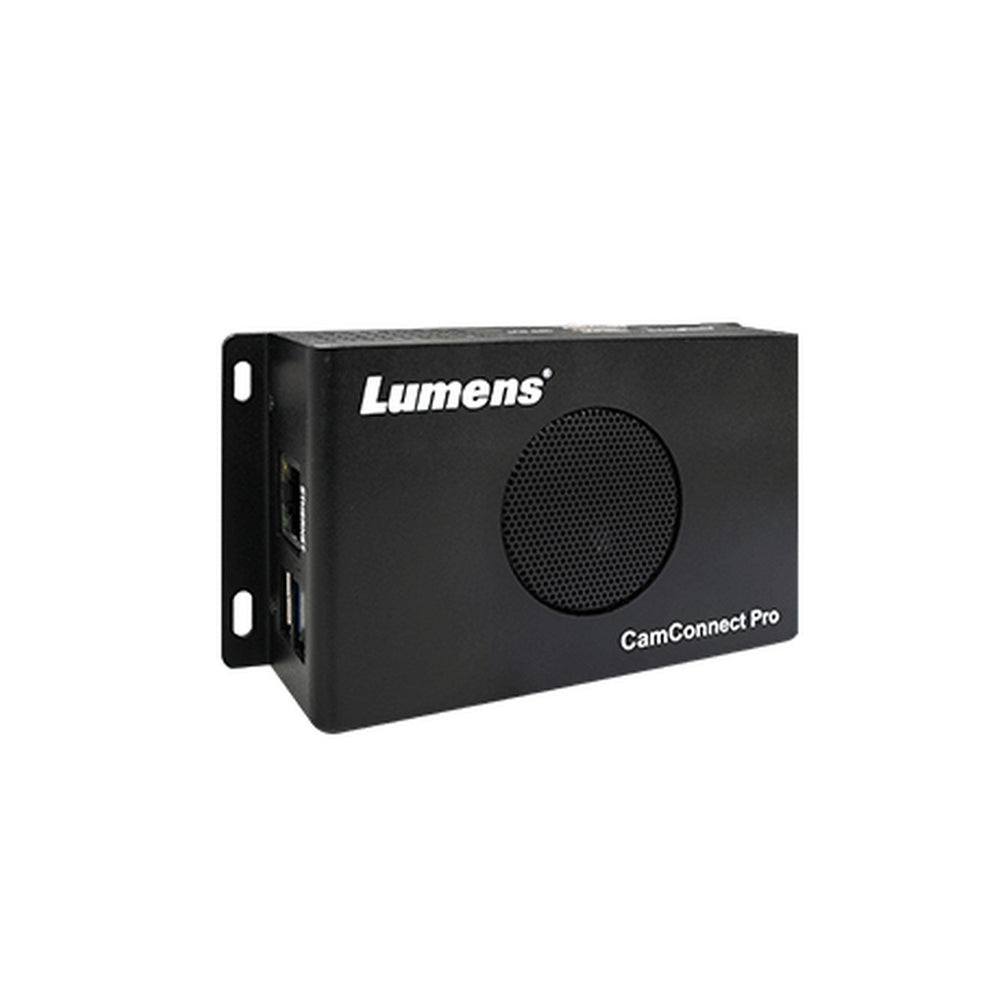

Lumens AI-BOX1 CamConnect Processer for 4 IP Cameras

Lumens | SKU: LMS-AIBOX1
$1,59900

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Lumens AI-BOX1 CamConnect Processer for 4 IP Cameras

Voice Tracking Camera Control
AI-Box1 matches directional audio data with preset camera positions to focus on the active speaker. If the speaker adjusts their position, the camera will intelligently correct the preset to keep the subject in the center of the frame.

Hybrid Audio-Visual Tracking Algorithm
Turning a PTZ camera into an auto-tracking camera, AI-Box1 uses live data from microphones to track a presenter or teacher as they move across a stage. This makes the unit an ideal partner for lecture capture systems.

Multiple Camera Auto Switch
AI-Box1 can use up-to 4 cameras to deliver the best shooting angle, dramatically enhancing AV production and the remote meeting experience. The unit also supports multiview mode, for output of two cameras side by side (PBP) or multiple cameras in a 2x2 gallery.

5-year warranty
Lumens offers a 5-year warranty with all its products as standard.

Key Features

  • Supports up-to 4 IP cameras
  • Supports up-to 16 multiple array microphones
  • Supports PBP and 2x2 multiview output
  • AI algorithm for people tracking and center stage
  • 5-Year Warranty

Technical Specifications

Maximum Supported Cameras
4xIP or 3xIP + 1xUSB
IP camera
RTSP (H.264 1080p@60/50, 720p@60/50)
USB Camera
UVC (MJPEG 1080p@30/25, 720p@30/25)
Camera Control Protocol
VISCA over IP / UVC
USB Device
USB 3.0 Type C, UVC
USB Format
MJPEG 1080p@30/25, 720p@30/25
HDMI Output
HDMI 2.0 (GUI menu)
HDMI Output Format
1080p@60/50 Hz
Power
USB Type-C Power (5V, 4A)
Ethernet Port
Female RJ-45
10/100/1000 Base-T
USB 3.0 Type A (USB Host)
Supports USB Camera / Mouse / Keyboard
LED Power Indicator
Yes
Power Button
Yes
Supported Conference Software
Teams / ZoomRoom / Zoom / Google Meet
Supports Multi-array Microphones
Yes, up to 16 microphones
Voice Tracking
Yes, with supported directional microphone arrays
Webpage Configuration
Yes
Camera Auto Switching
Yes
Supports Multi-camera Control
Yes, up to 4 cameras
People Tracking
Yes
Center Stage
Yes
Multiview (Video Source Mixing)
Yes, Side-by-Side (PBP) / 2x2 Gallery
Firmware Update
Over the Air (OTA)
Power Consumption
20W
Operating Temperature
0~40 Degrees C
Operating Humidity
90%
Dimension (WxHxD)
4.96” x 2.76” x1.18” (126 mm x 70mm x 30mm)
Weight
0.8 lbs (350g)
