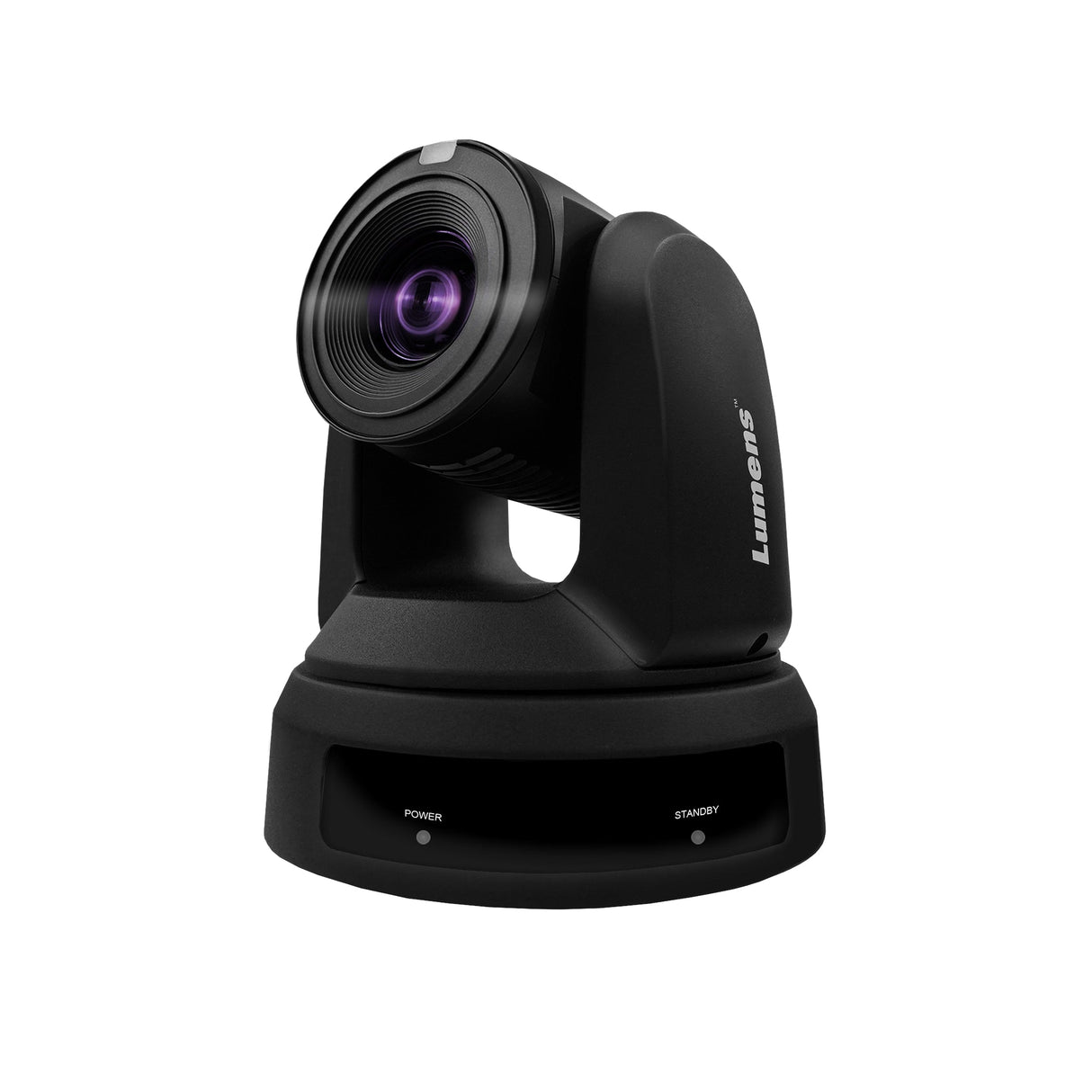

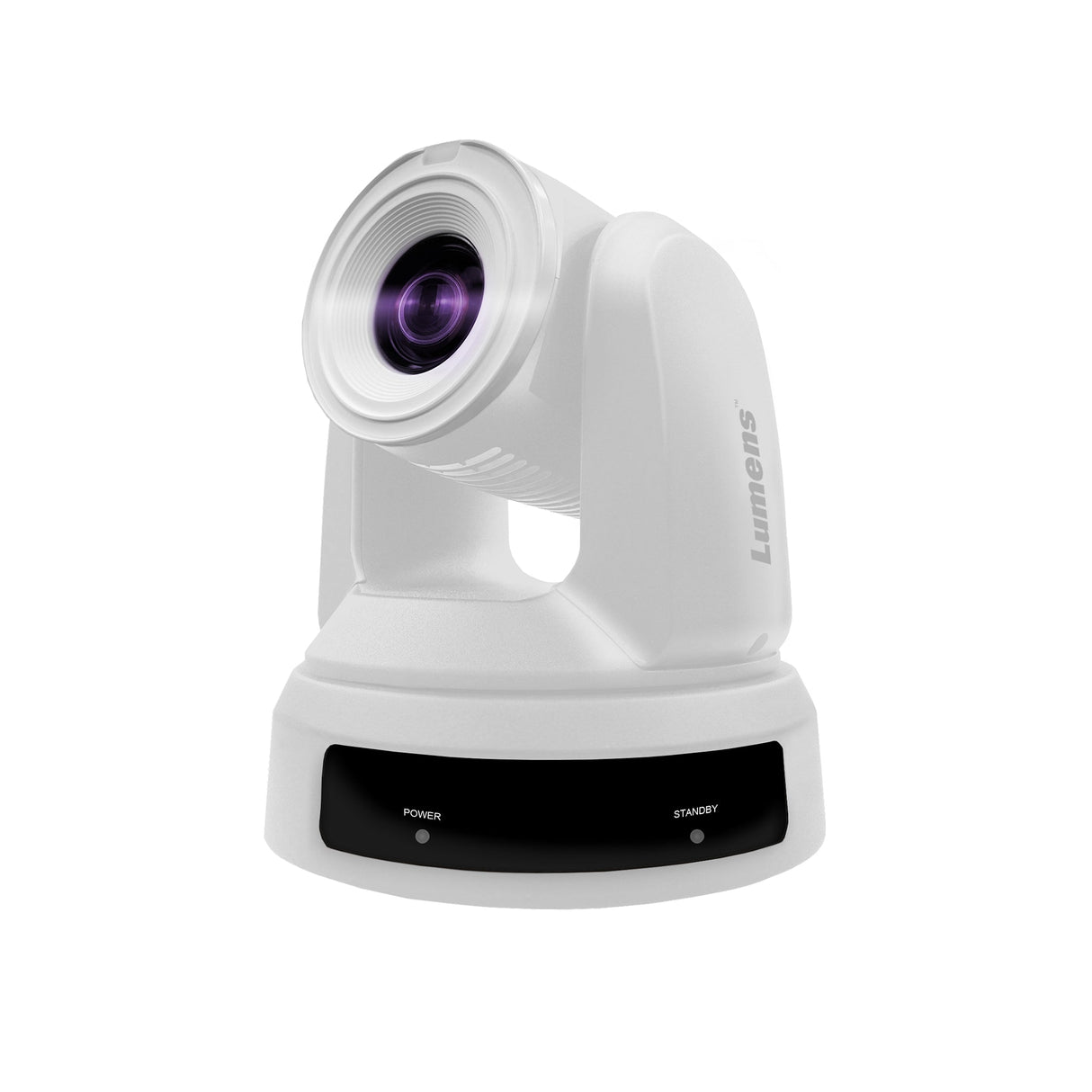

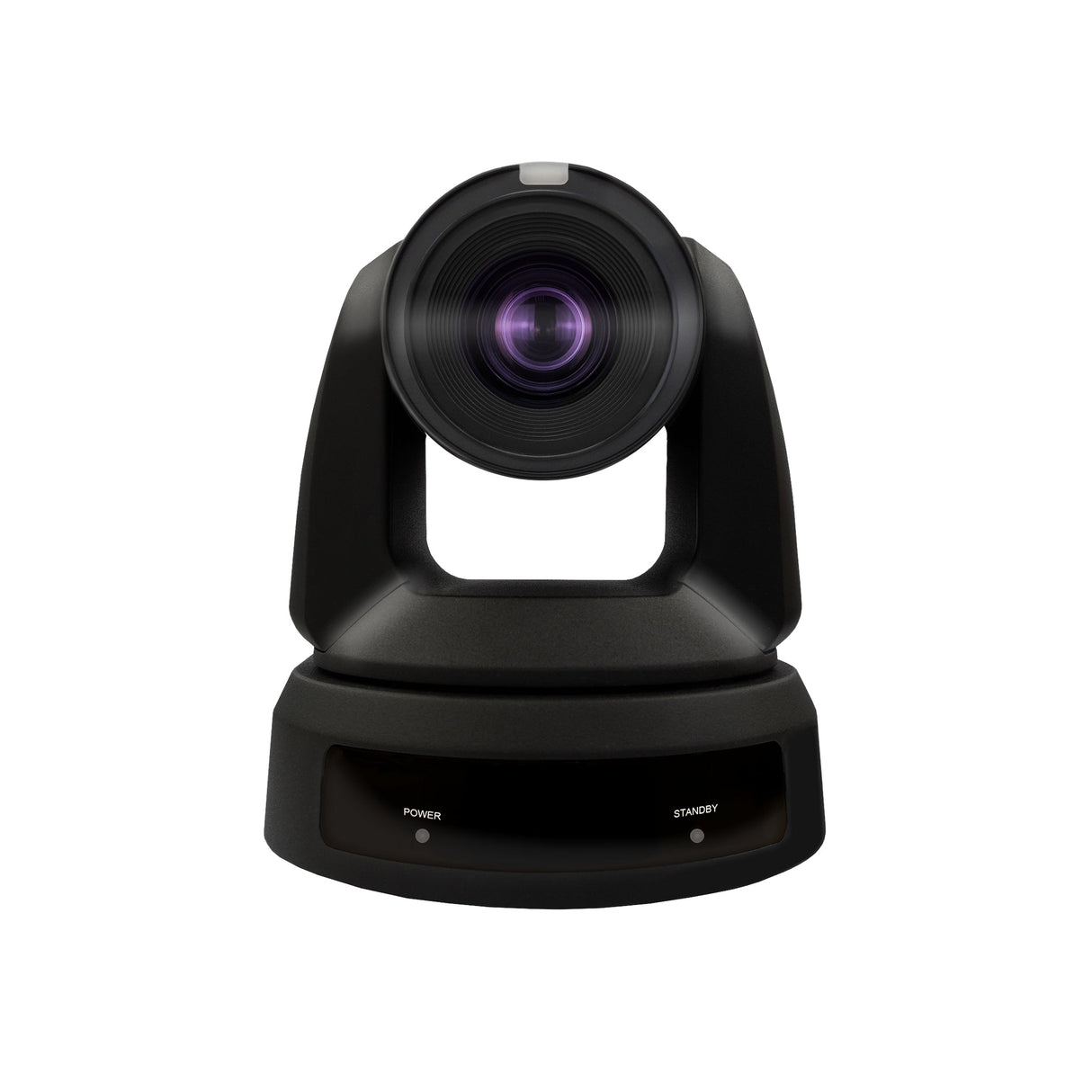

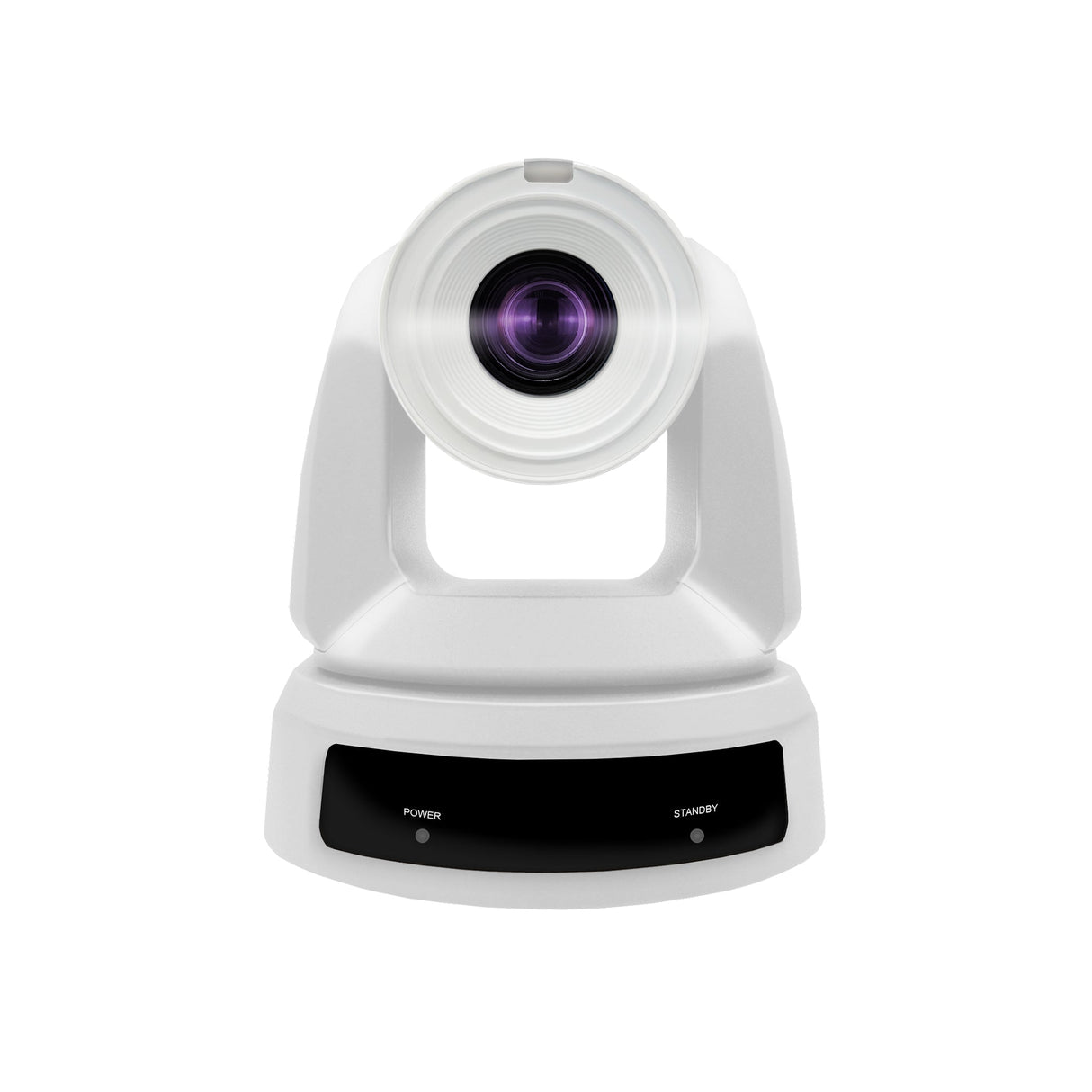

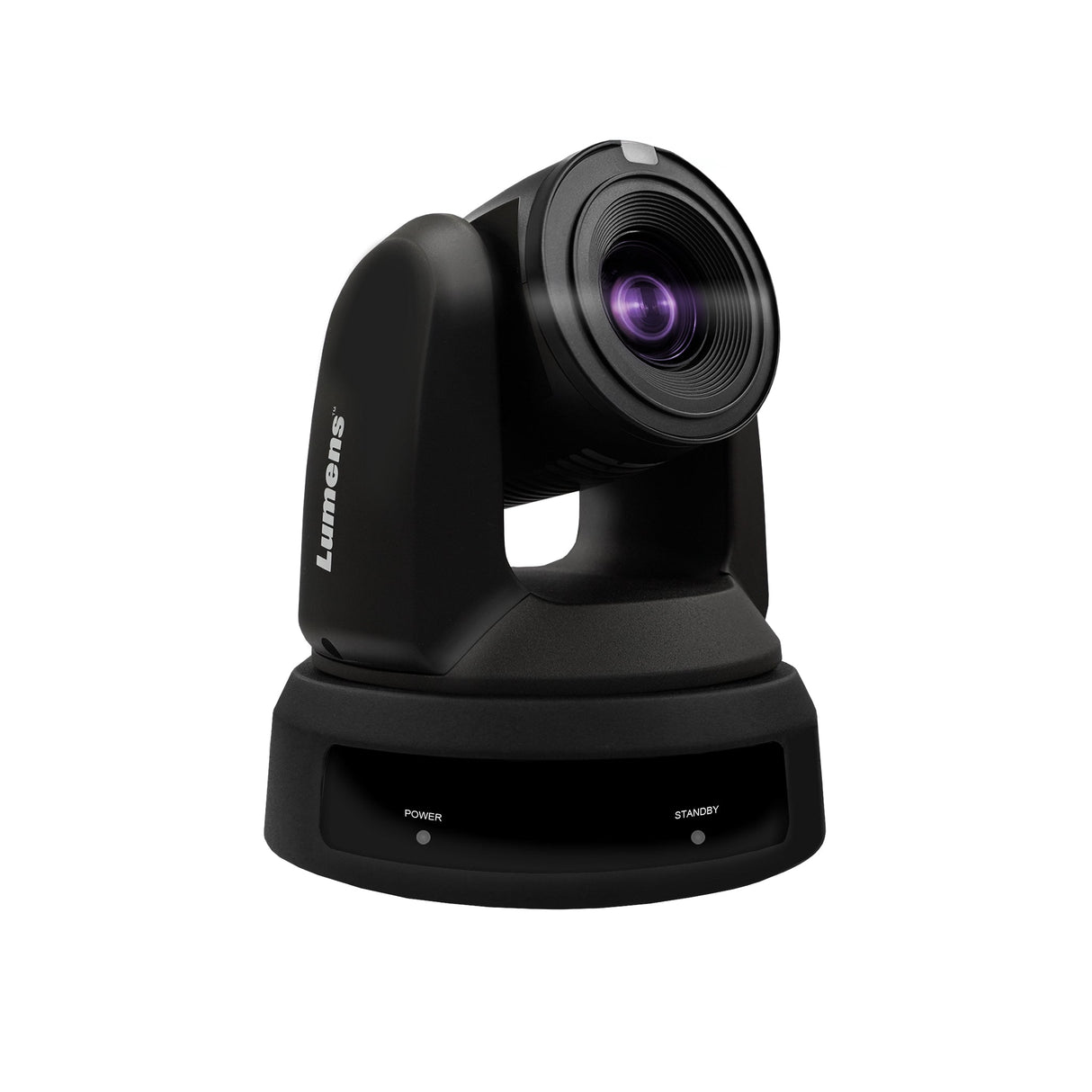

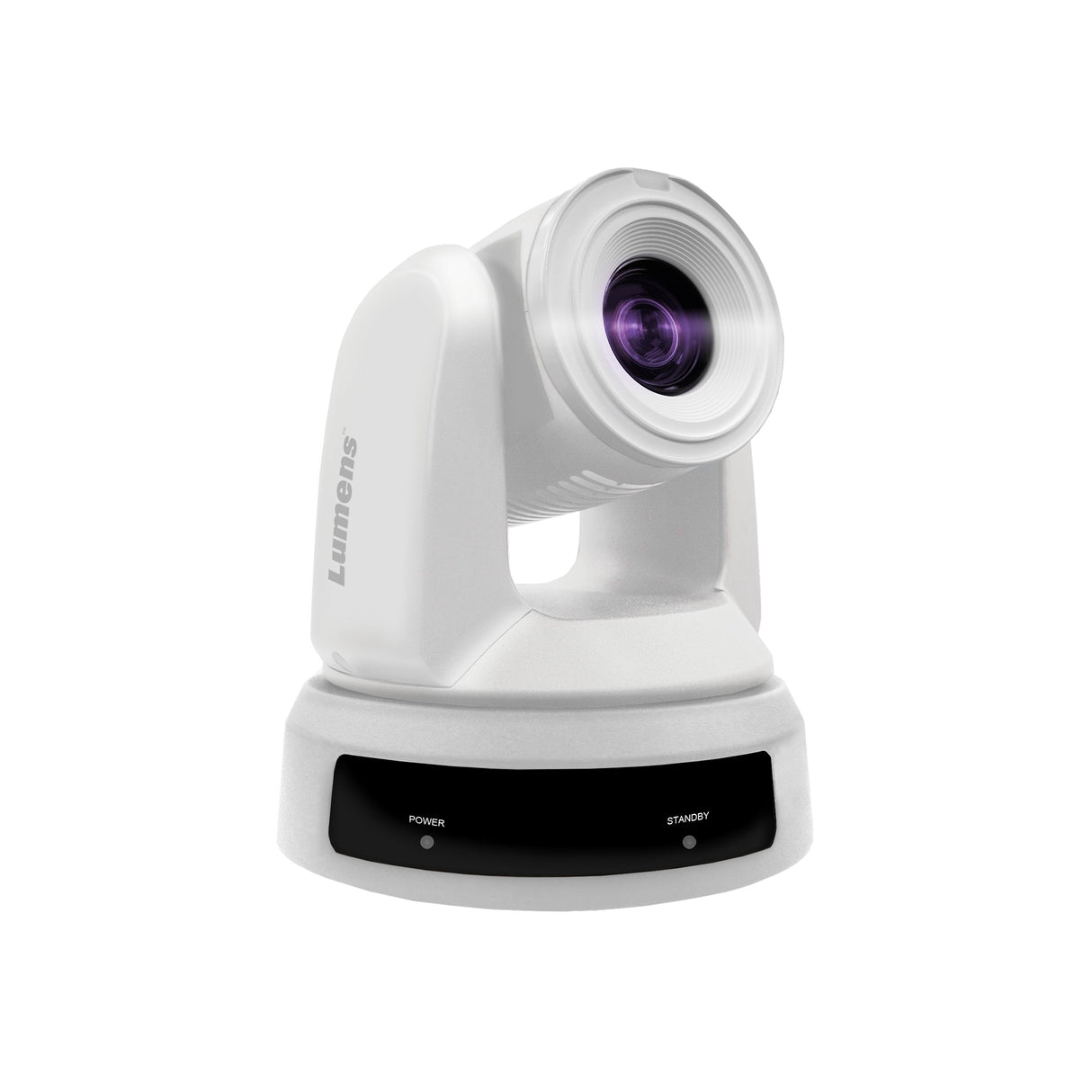

The Lumens VC-A53 Full HD PTZ IP Camera boasts high-precision motors that propel it at up to 225° per second, ensuring incredibly fast transitions between preset positions. Yet, it can also move at low speeds for smooth, jitter-free tracking shots, ideal for professional videography.

Versatile Connectivity

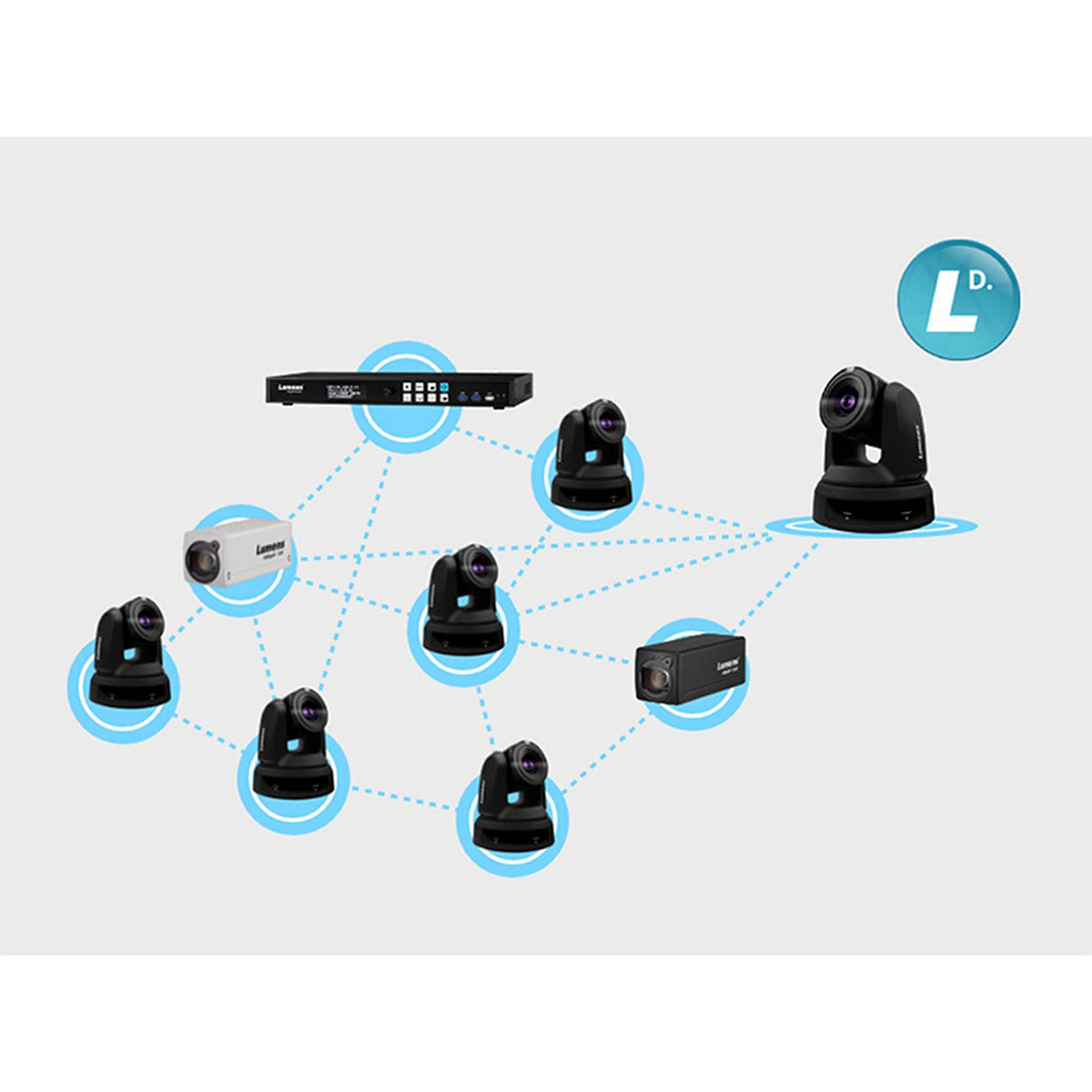

The built-in Ethernet port is a powerhouse. It offers Power over Ethernet (PoE) for simplified setup, transmits video in secure and broadcast-standard formats, and allows for IP control. Manage multiple cameras across your facility remotely using the complimentary Lumens Deployment Tool 2.0.

Seamless Integration
Built around a professional-grade Sony sensor, the VC-A53 produces video that effortlessly blends into multi-camera productions. Control it using various interfaces like RS-232, RS-422, USB, and Ethernet, making it easy to integrate into your existing workflows.

Intelligent Automation
The VC-A53 empowers creative control with its full manual settings. It also features intelligent auto modes, including superior autofocus, predictive auto-exposure, and auto-white balance. These features ensure professional-looking results even in situations demanding minimal user input.

Built to Last
Lumens backs the VC-A53 with an industry-leading 5-year warranty, giving you peace of mind for years to come.

Key Features

• Professional Sony Image Sensor: Capture stunning visuals with a proven, high-quality sensor designed for professional productions.

• 1080p Resolution at 60fps: Record smooth, high-definition video at 60 frames per second for exceptional clarity and detail.

• 20x Optical Zoom: Get a closer look at the action with a powerful 20x optical zoom that maintains image quality throughout magnification.

• Multi-Output Flexibility: Stream or record HD video simultaneously using Ethernet, HDMI, USB, and 3G-SDI connections, offering unmatched versatility for diverse workflows.

• Industry-Leading 5-Year Warranty: Enjoy peace of mind with Lumens' exceptional 5-year warranty, guaranteeing long-lasting performance and reliable operation.

Technical Specifications

Sensor
1/2.8" 2.16 MP CMOS
Video Format
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet / USB3.0
Optical Zoom
20x
Digital Zoom
12x
Horizontal Viewing Angle
57°
Vertical Viewing Angle
32.1°
Diagonal Viewing Angle
65.4°
Aperture
F1.6~F3.8
Focal Length
5.33mm~110mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
Wide: 0.5M / Tele: 1.5M
Video S / N Ratio
> 50dB
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
AR / VR Systems
FreeD
Tally Light
Yes
Panning Angle
+170° ~ -170°
Panning Speed
225°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
225°/sec
Preset Positions
256
HDMI / 3G-SDI
1080p 60
IP Stream
Main : H.264 1080p 60
Second : H.264 640x360p 30
Webpage Preview: 1280x720 30
IP Compression
H.264
USB Output
1080p 60
USB Compression
H.264 / MJPEG
IP Protocol
RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE (IEEE802.3af)
Input
Line In / MIC In
Output
Ethernet / USB 3.0 / HDMI / SDI
Compression Format
AAC / PCM

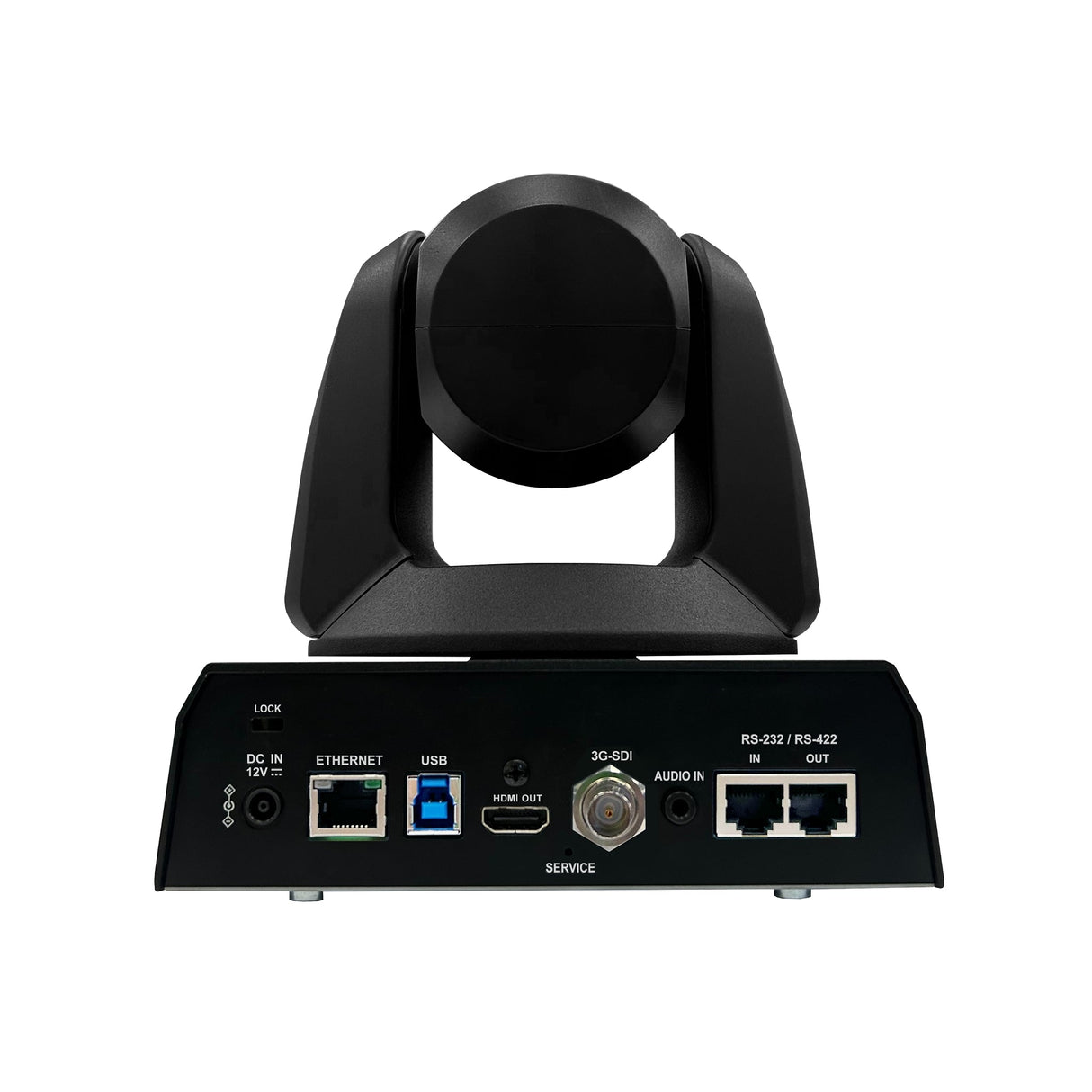

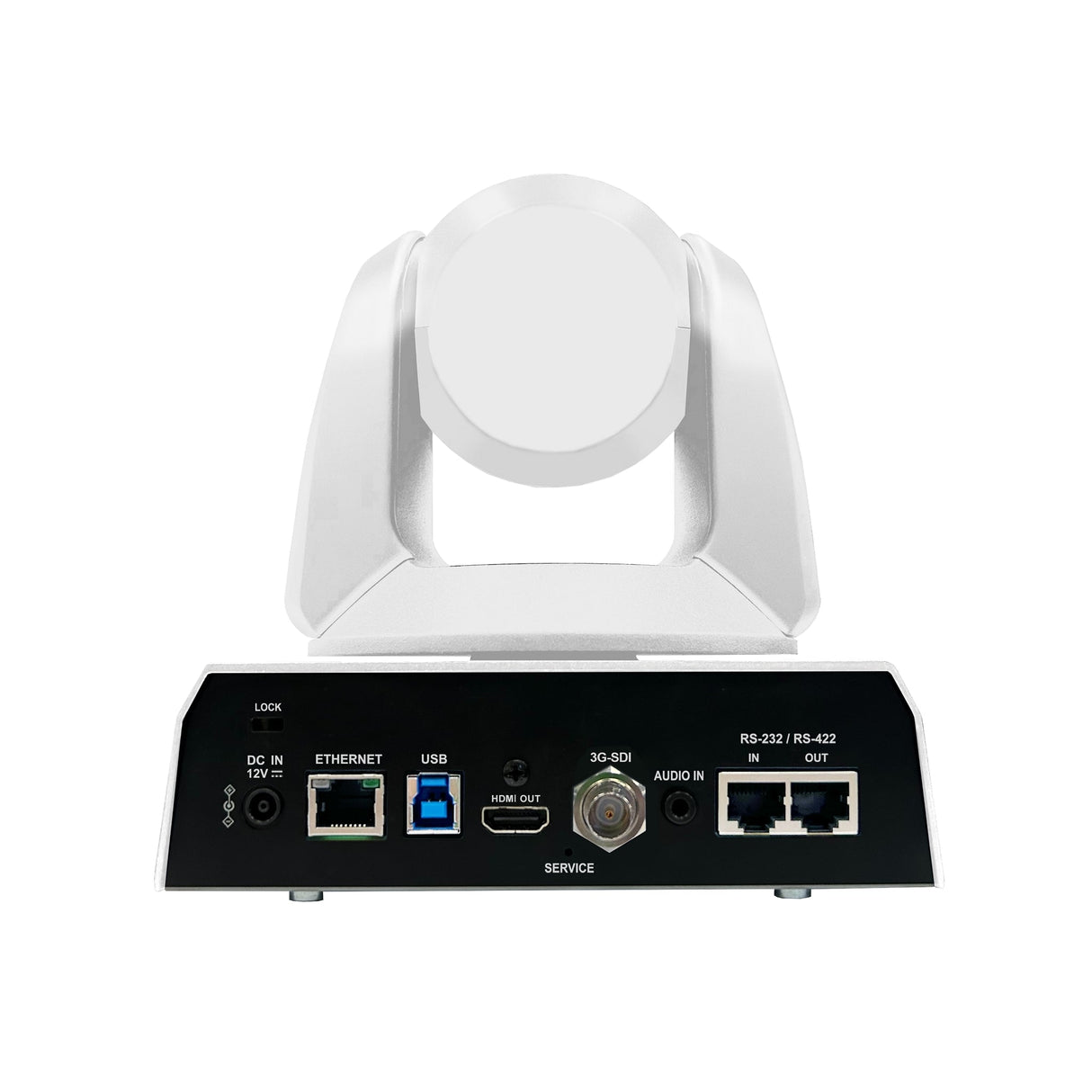

Interface
RS-232 / RS-422 / Ethernet / USB / Remote
Protocol
VISCA / VISCAIP / ONVIF
UVC
1.1
UAC
Yes
DC In
12V +/- 20%
Power Consumption
PoE : 10W
DC In : 9W
Weight
2 kg (4.4 lbs)
Dimension (WxHxD)
6.85" x 7.76" x 7.09"
(174 x 197 x 180 mm)
