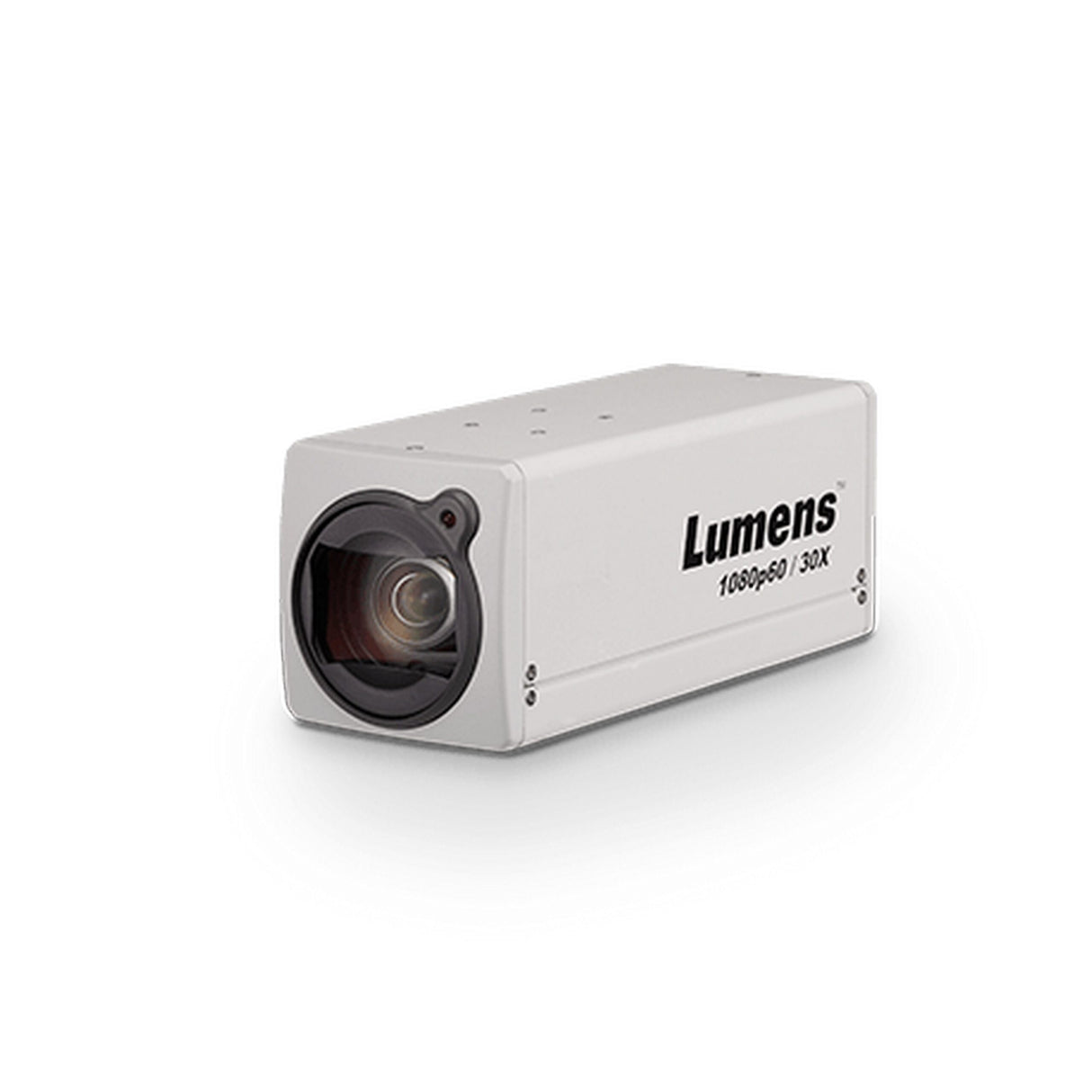

Lumens VC-BC601P 1080p 60fps 30x Box Camera, White

Lumens VC-BC601P is 1080p 60fps and 30x optical zoom High Definition block camera. The VC-BC601P contains HDMI 2.0, Ethernet, 3G-SDI output in a compact design and support triple stream and PoE, which is ideal for house of worship, education, sports production, broadcast television, news/weather-casts, corporate video, courtroom capture, live streaming, and a variety of ProAV applications.

Key Features

• 1080p 60fps
• 30x Optical Zoom, 68 degrees Horizontal Viewing Angle
• HDMI, 3G-SDI and Ethernet video outputs
• Triple stream video, support H.265 / H.264 format
• Support RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocol
• Supports PoE (Power over Ethernet)
• Support Line/MIC Audio Input

Technical Specifications

Sensor
1/2.5" 8MP CMOS
Video Format
Resultion : 1080p/720p
Frame Rate : 59.94/50/29.97/25
Video Output (HD) Interface
3G-SDI, HDMI, Ethernet
Optical Zoom
30x
Horizontal Viewing Angle
68
Aperture
F1.6 ~ F3.4
Focal Length
4.6mm ~ 135mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.1 lux (F1.6, 50IRE, 30fps)
Focus System
Auto, Manual
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Preset Positions
256
Multiple Video Stream
H.265 1080p 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
Audio Compression Format
G.711 / AAC
Camera Control Interface
RS-232 / Ethernet
Camera Control Protocol
VISCA / PELCO D / ONVIF
Tally Light
Yes
PoE
PoE (IEEE802.3af)
Video Stream
RTSP / RTMP / RTMPS / MPEG-TS / SRT
Video Compression
H.265 / H.264
Audio in
Line In/Mic In, Phone Jack 3.5mm x1
Audio Out
Line Out, Phone Jack 3.5mm x1
Ethernet / SDI / HDMI
DC IN
12V +/- 20%
Power consumption
Power On : 7.9W
Standby : 4.6W
Weight
1 kg
Dimension
170 x 67 x 67 mm (6.7" x 2.6" x 2.6")
