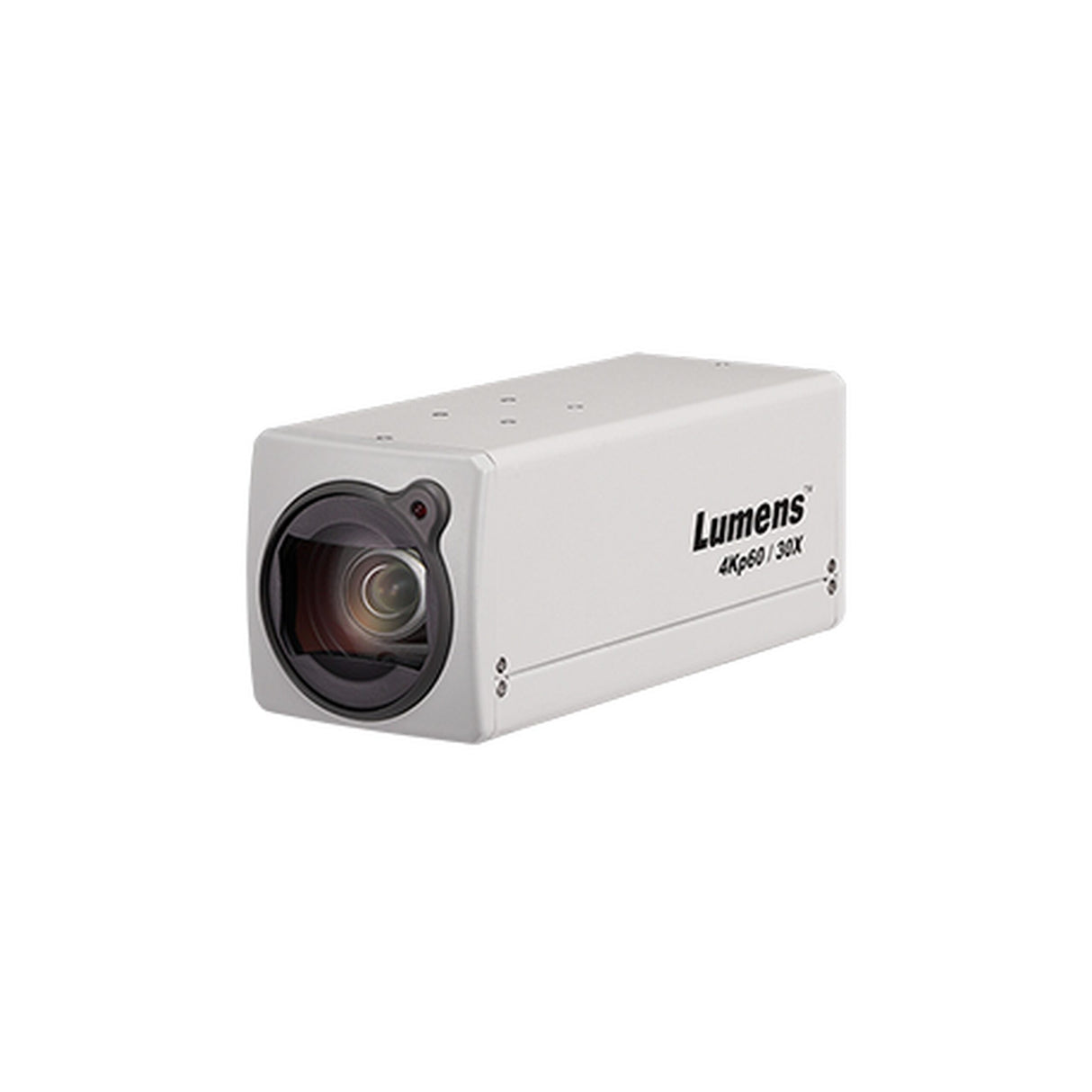

Lumens VC-BC701P 4Kp60 30x Box Camera, White

The VC-BC701P 4Kp60 UHD box camera provides 30x optical zoom with high color reproduction, high-definition signals, and crystal-clear image quality.

Support Multiple Signal Interface
The VC-BC701P supports multiple interfaces such as Ethernet, HDMI for image outputs, which allows transmitting uncompressed digital video signal without any delay.PTZ Camera, Box Camera

Triple stream video, support H.265 / H.264 video format
With triple stream technology, the VC-BC701P provides H.265 / H.264 multiple streams that tailored for your network environment.

UHD 4K High Image Quality
The VC-BC701P is equipped with a professional 1/2.5 inch image sensor with UHD 4K output resolution. The sensor provides high color reproduction, high-definition signals, and crystal-clear image quality.

Multiple Signal Interface
The VC-BC701P has multiple interfaces like Ethernet and HDMI for image outputs.

Supports PoE for Easy Installation
Power supplied through the PoE (Power over Ethernet) without additional power supply and cables that bring cost-effective and simple installation.

Key Features

• 4K 60fps UHD
• 30x Optical Zoom, 68 degrees Horizontal Viewing Angle
• HDMI and Ethernet video outputs
• Triple stream video, support H.265 / H.264 format
• Support RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocol
• Supports PoE (Power over Ethernet)
• Support Line/MIC Audio Input

Technical Specifications

Sensor
1/2.5" 8MP CMOS
Video Format
Resultion : 4K/1080p/720p
Frame Rate : 59.94/50/29.97/25
Video Output Interface
HDMI 2.0, Ethernet
Optical Zoom
30x
Horizontal Viewing Angle
68°
Aperture
F1.6 ~ F3.4
Focal Length
4.6mm ~ 135mm
Shutter Speed
1/8 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.1 lux (F1.6, 50IRE, 30fps)
Focus System
Focus System
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Preset Positions
256
Multiple Video Stream
H.265 4K 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
Audio Compression Format
G.711 / AAC
Camera Control Interface
RS-232 / Ethernet
Camera Control Protocol
VISCA / PELCO D / ONVIF
Tally Light
Yes
PoE
PoE (IEEE802.3af)
Video Stream
RTSP / RTMP / RTMPS / MPEG-TS / SRT
Video Compression
H.265 / H.264
Audio in
Line In/Mic In, Phone Jack 3.5mm x1
Audio Out
Line Out, Phone Jack 3.5mm x1, Ethernet, HDMI
DC IN
12V +/- 20%
Power Consumption
Power On : 8.8W
Standby : 2.4W
Weight
1 kg
Dimension
170 x 67 x 67 mm (6.7” x 2.6” x 2.6”)
