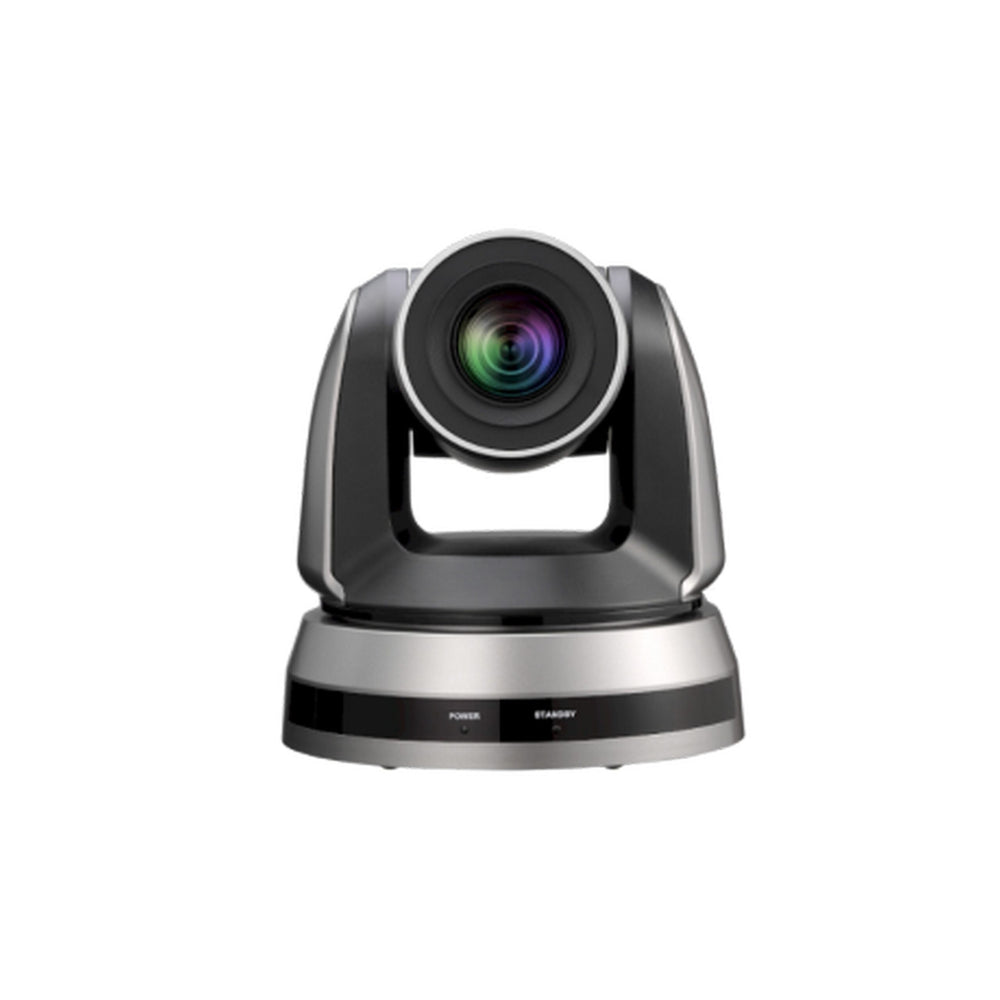

Lumens VC-TA50B 20x Zoom HD PTZ Camera with Multiple Tracking Modes and PoE+, Black

Everywhere Tracking Mode
The camera will follow wherever the presenter goes. You can simply change the tracked subject by clicking on the individual via the web interface.

Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.

Stage Tracking Mode
When inside the Tracking Area, the camera follows the presenter with only a pan (left-right) movement. When the presenter moves outside the Tracking Area, the camera stops following.

Smooth Pan-Tilt-Zoom Movement
Whether in auto-tracking or manual mode, VC-TA50 offers a smooth pan, tilt, and zoom movements. The speed of camera movement can be set to meet the needs of each production.

Smart AF
The Smart AF feature keeps the presenter’s face in sharp focus even when they move across a stage. This advanced feature delivers fast, reliable, and accurate focusing performance.

5 Year Warranty
Lumens offers a 5-year warranty with all its products as standard.

Key Features

• AI-Powered Human Face Recognition
• Three Tracking modes with auto framing
• 1080P 60fps with 20x Optical Zoom
• HDMI, SDI, and Ethernet simultaneous output
• Supports RTSP / RTMP / RTMPS / SRT
• 5-Year Warranty

Technical Specifications

Sensor
1/2.8” 2.16 MP CMOS
Video Format
1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25
1080i: 60 / 59.94 / 50
720p: 60 / 59.94 / 50
Video Output (HD) Interface
3G-SDI / HDMI / Ethernet
Optical Zoom
20x
Viewing Angle
57 Degrees (H) / 32.1 Degrees (V) / 65.4 Degrees (D)
Aperture
F1.6~F3.8
Focal Length
5.33mm~110mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide/Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
AR/VR Systems
FreeD
Tally Light
Yes
Auto Tracking
Everywhere / Stage / Partition
Auto Framing
Yes
Panning Angle
+170 ~ -170 Degrees
Panning Speed
300°/sec
Tilting Angle
+90 ~ -30 Degrees
Tilting Speed
300 Degrees /sec
Preset Positions
128
HDMI / 3G-SDI
1080p60
IP Stream
First: H.264 1080p 60fps
Second: H.264/MJPEG D1 30fps
IP Compression
H.264 / MJPEG
IP Protocol
RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE+ (IEEE802.3at)
Audio Input
Line In / MIC In
Audio Output
Ethernet / SDI / HDMI
Audio Compression Format
G.711
Interface
RS-232 / RS-422 / Ethernet
Protocol
VISCA / VISCAIP / PELCO D / ONVIF
IR Pass-Through
Yes
IR Receiver
Yes
IR Remote Control
Yes
DC In
12V +/- 20%
Power Consumption
PoE: 18.5W
DC In: 17W
Body Color
Black / White
Weight
4.4 lbs (2 kg)
Dimensions
6.9” x 7.3” x 7.3”
(174 x 186 x 187mm)
