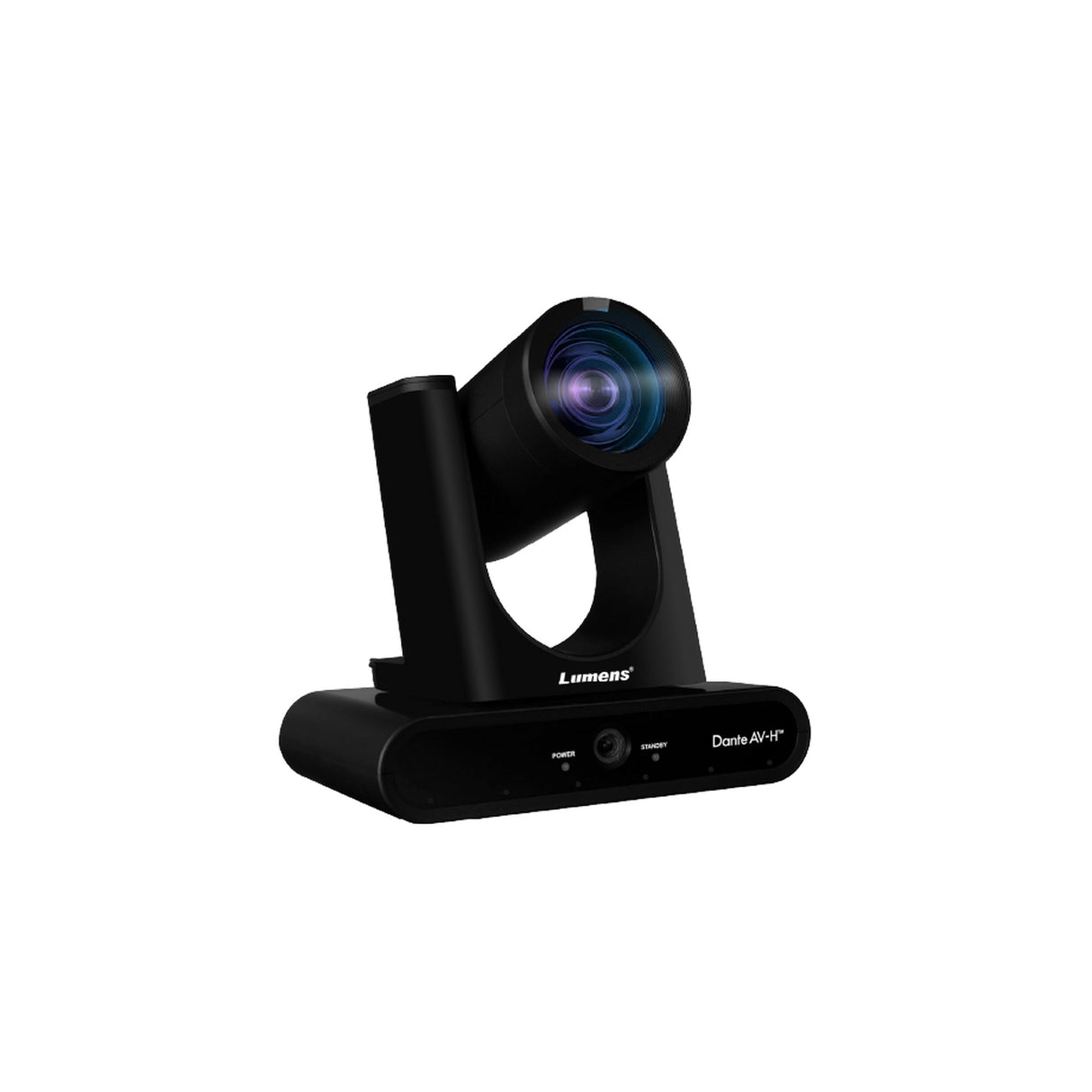

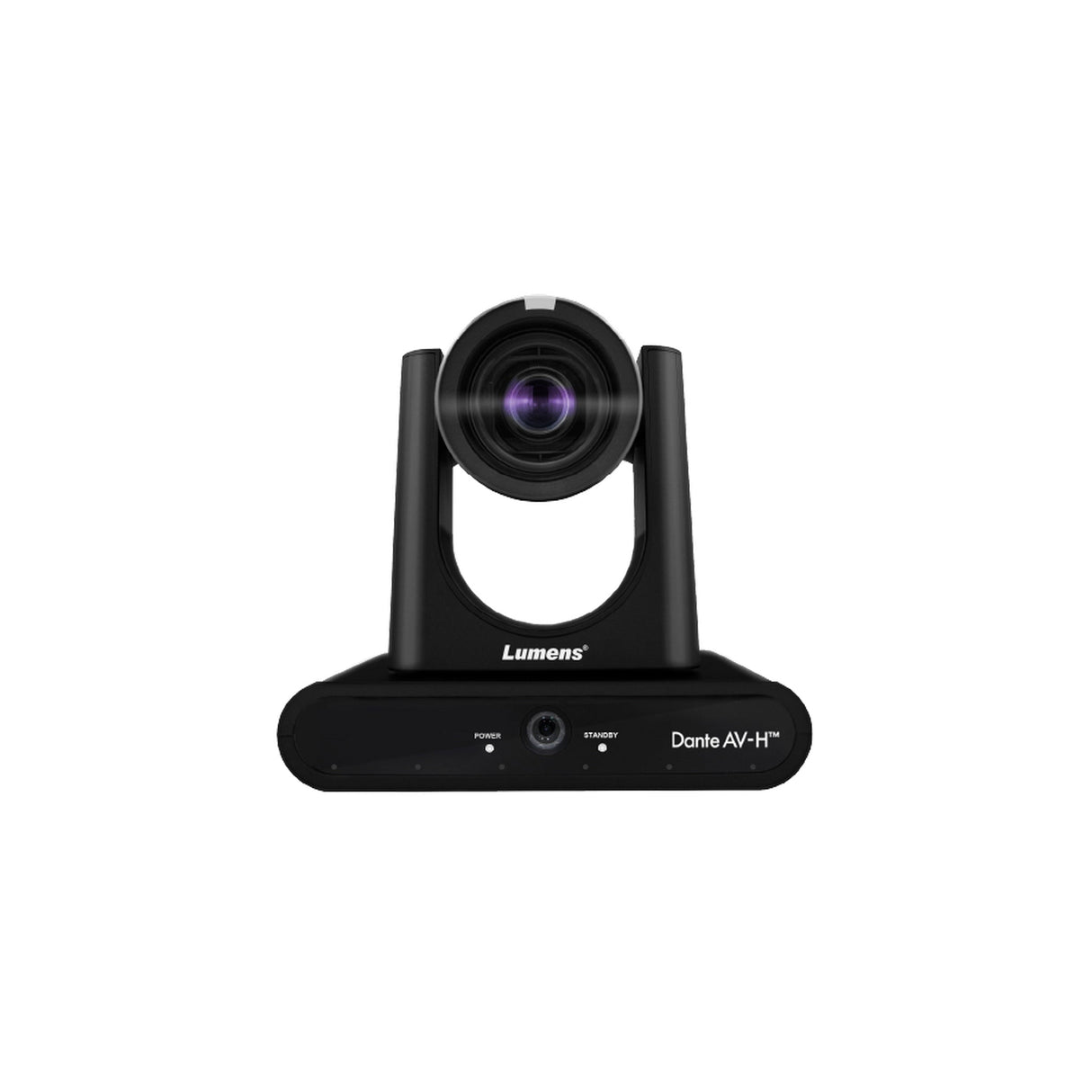

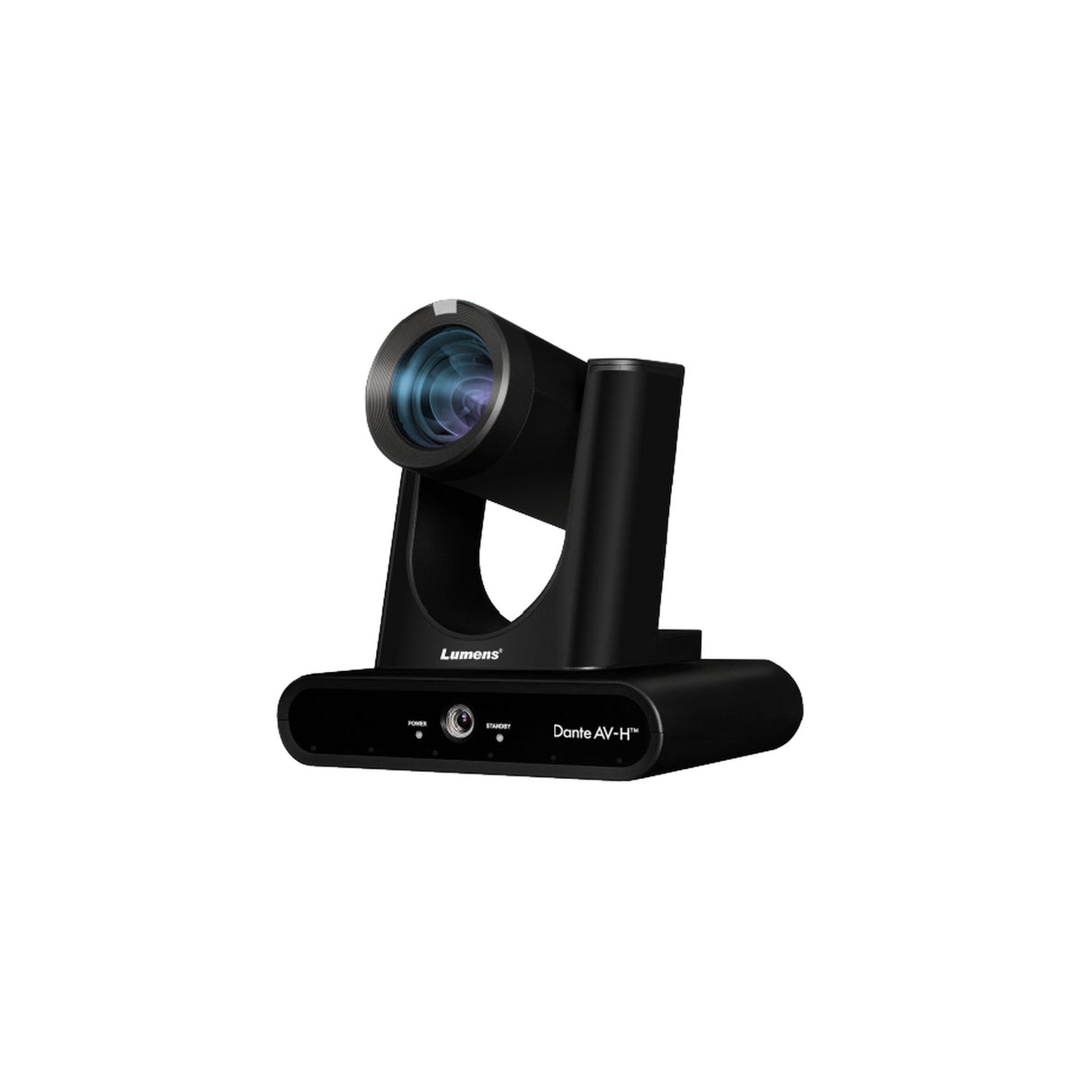

Lumens VC-TR60A Dante AV-H 4K Dual Lens with Voice Tracking Camera
The Lumens VC-TR60A Dante AV-H is an advanced dual-lens 4K PTZ camera engineered for professional conferencing, hybrid events, and AV-over-IP installations. Featuring intelligent AI speaker tracking and a panoramic wide-angle view, it autonomously follows active speakers while offering simultaneous multi-output capabilities. It is ideal for educators, corporate studios, and hybrid spaces seeking ultra-low latency video streaming with seamless Dante integration.
Equipped with a 12x optical zoom robotic head and a fixed panoramic lens, the camera delivers both tight and wide perspectives. It supports Picture-in-Picture output, AI motion-based framing, and includes Dante AV-H streaming for high-quality, low-latency IP video routing via Dante Controller, Dante Domain Manager, and Dante Director. Outputs over HDMI, USB, Ethernet, and Dante make it highly flexible for diverse AV workflows.
Available in both Black and White finishes, the VC-TR60A Dante AV-H also supports PoE+, 256 programmable presets, and simultaneous 4K video output—making it a versatile and future-proof solution for modern AV deployments.
Key Features
- Camera Type: Dual-lens PTZ with panoramic fixed lens
- Dante Integration: Supports Dante AV-H IP video streaming over Dante network
- Tracking: Intelligent voice-based speaker tracking and AI motion tracking

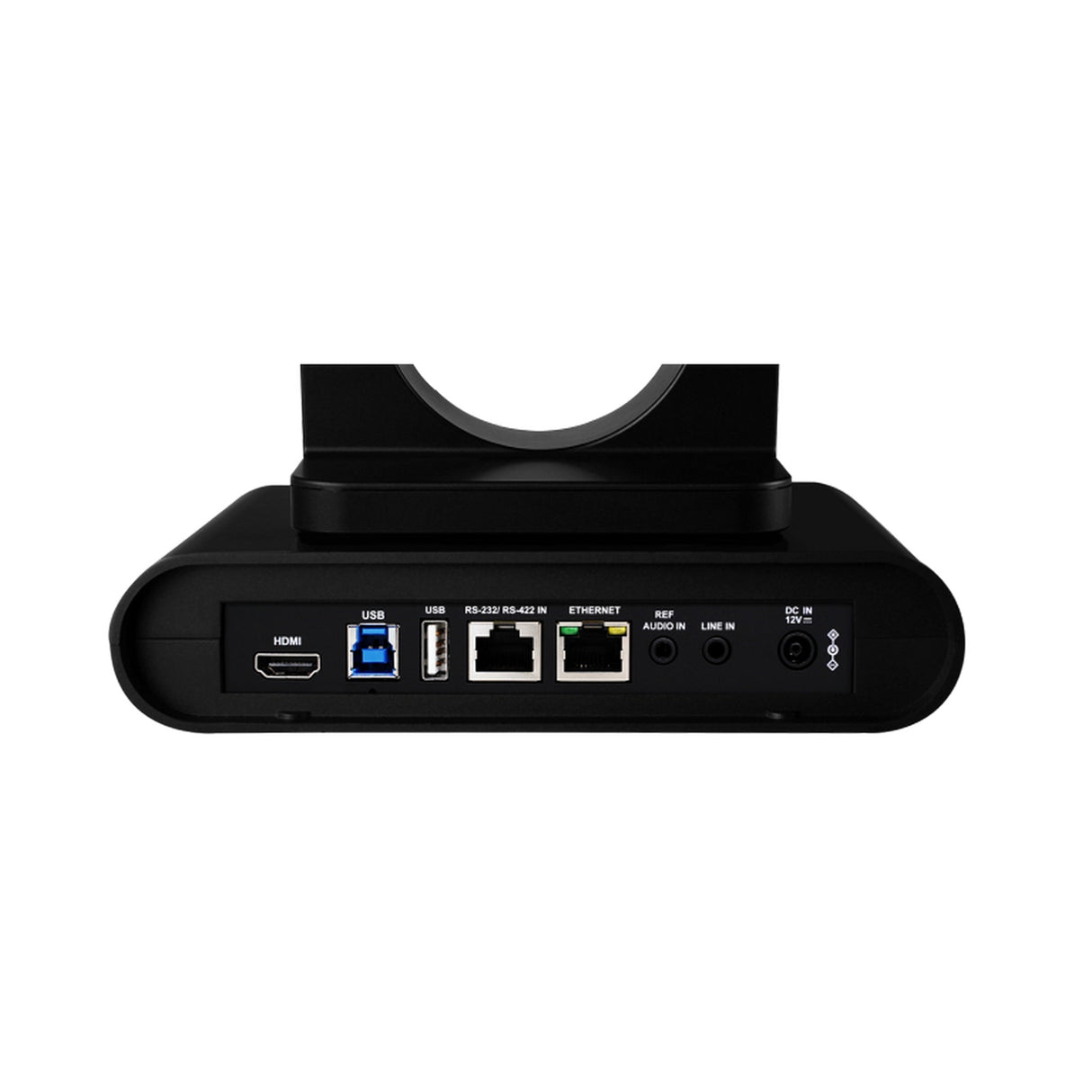

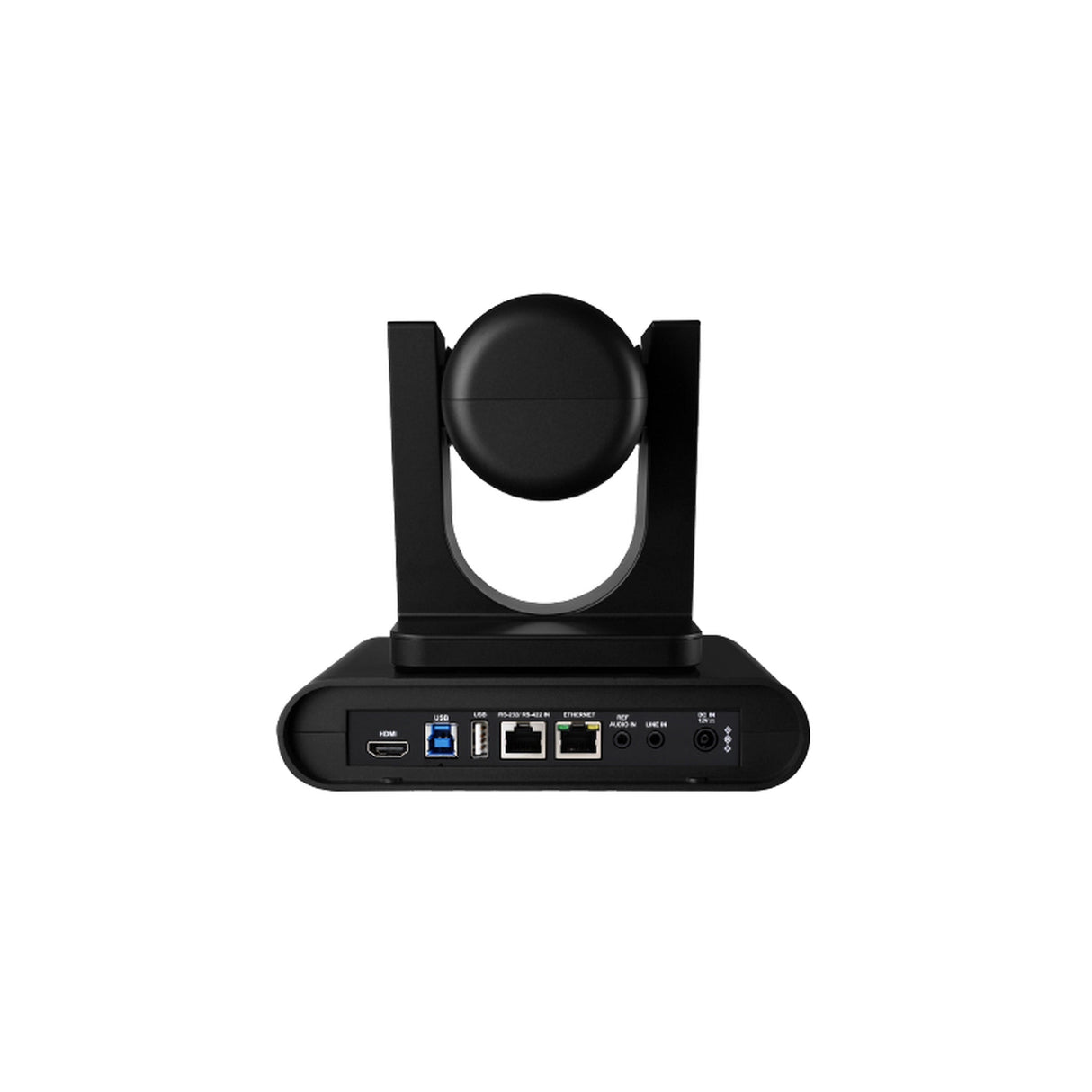

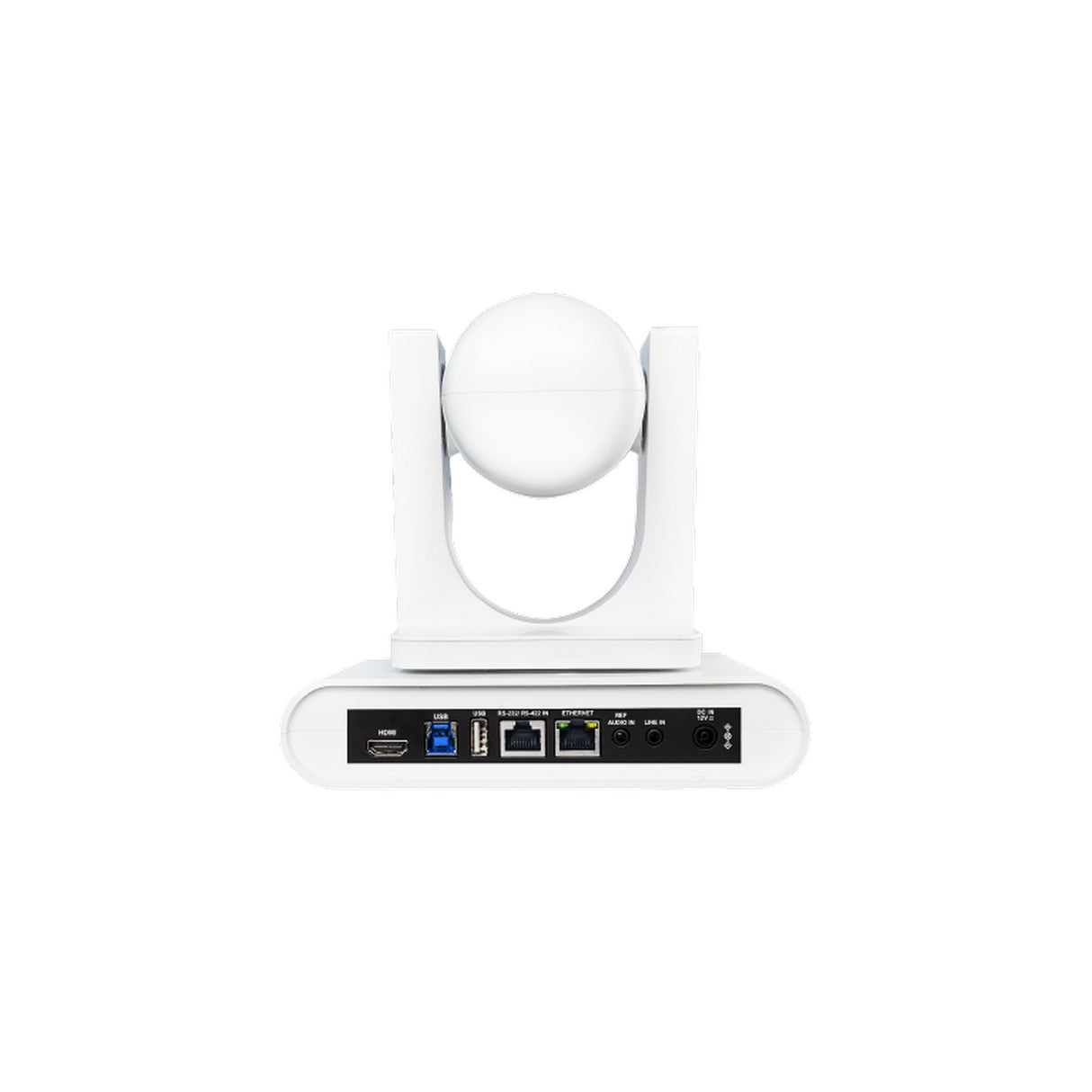

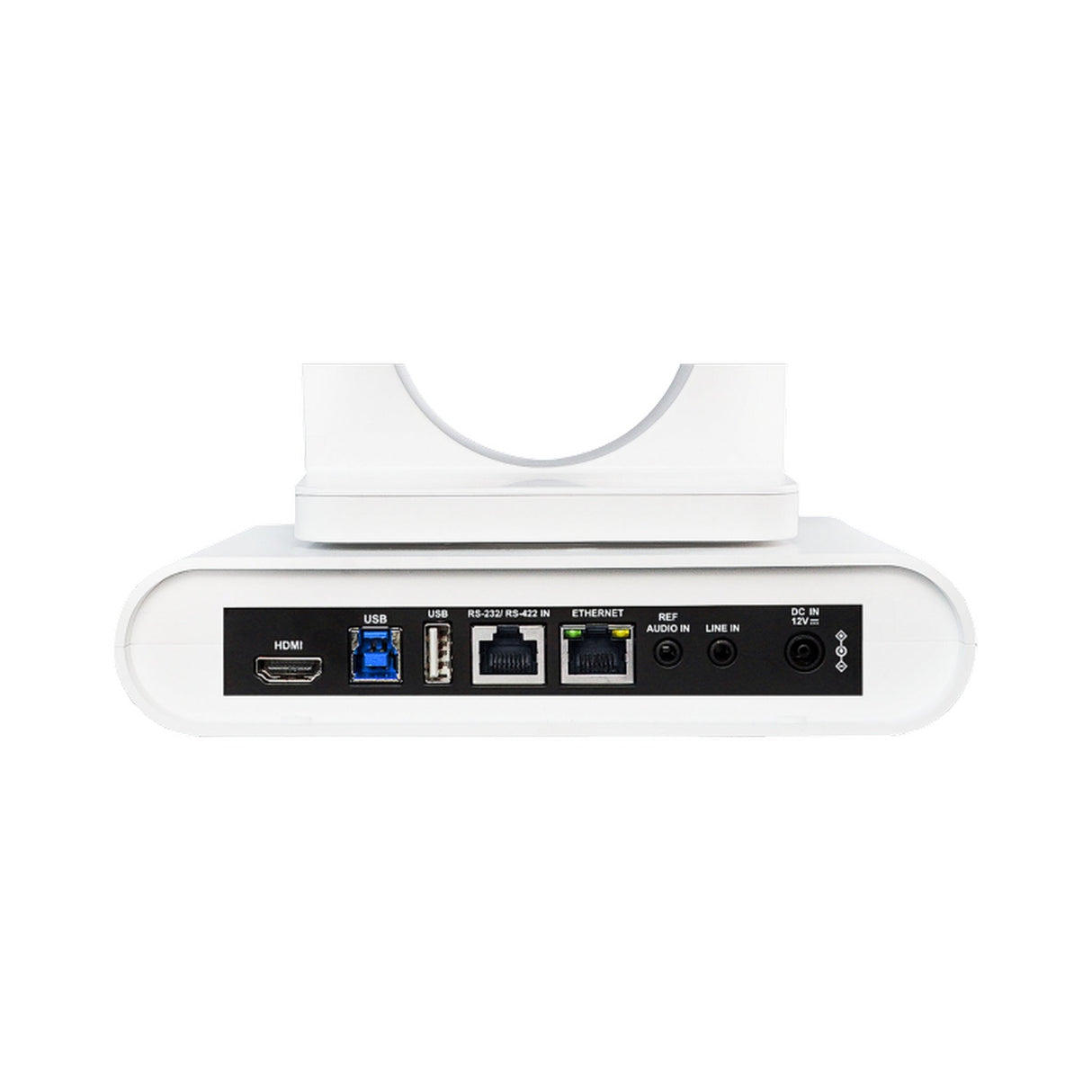

- Output Interfaces: HDMI, USB, Ethernet (IP), and Dante AV-H
- Zoom: 12x optical zoom + 8x digital zoom
- Picture-in-Picture: Combined wide & close-up view via HDMI and USB
- Presets: 256 programmable positions

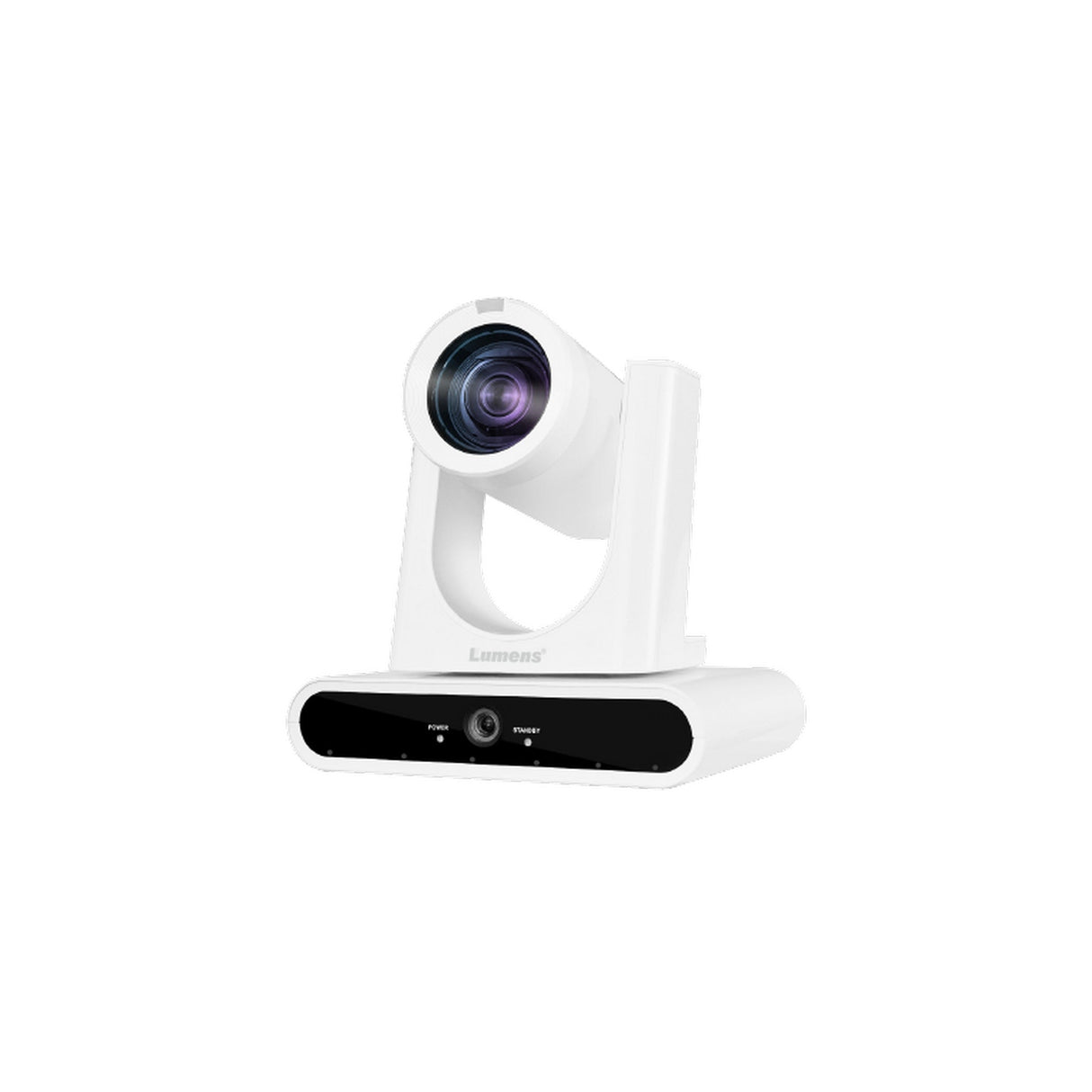

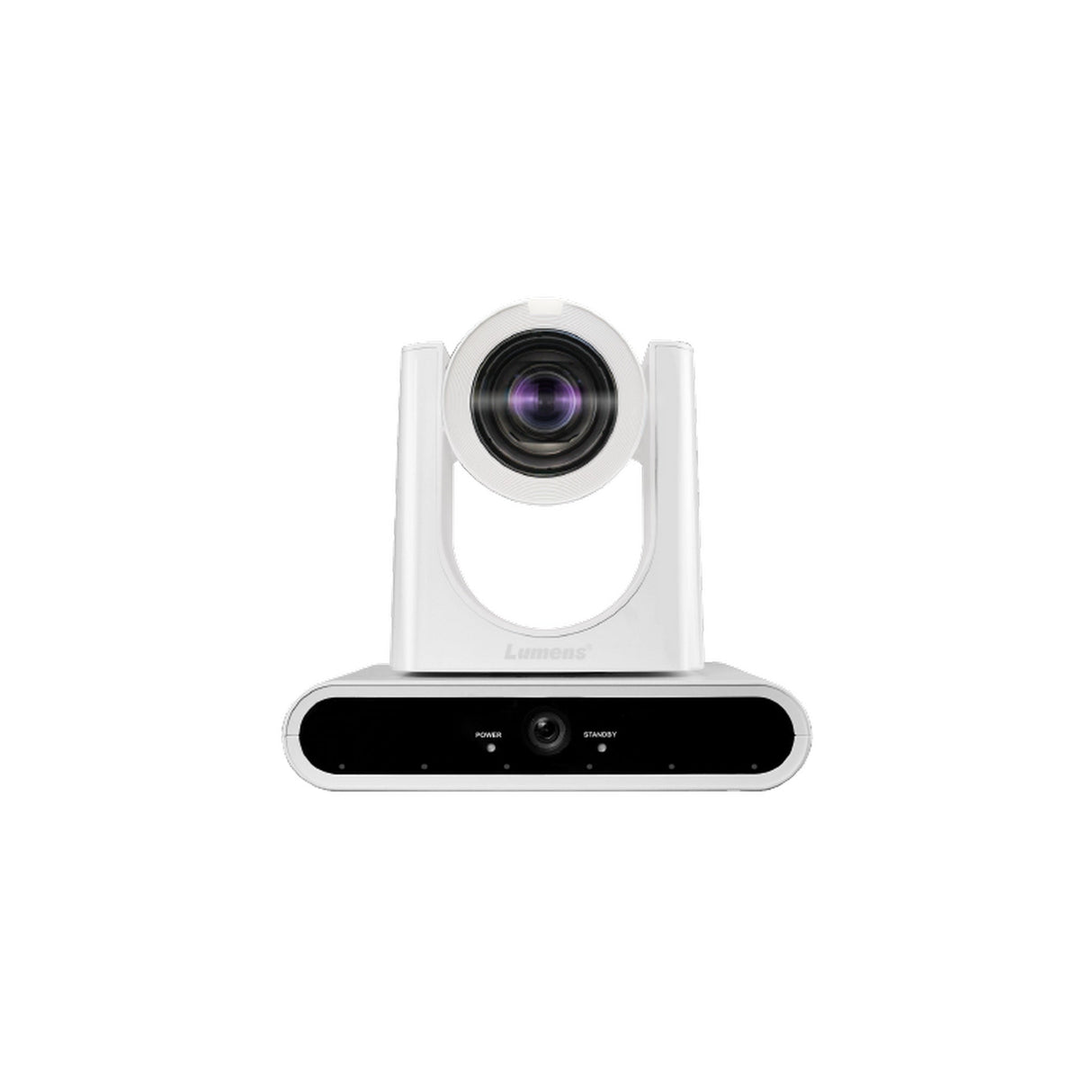

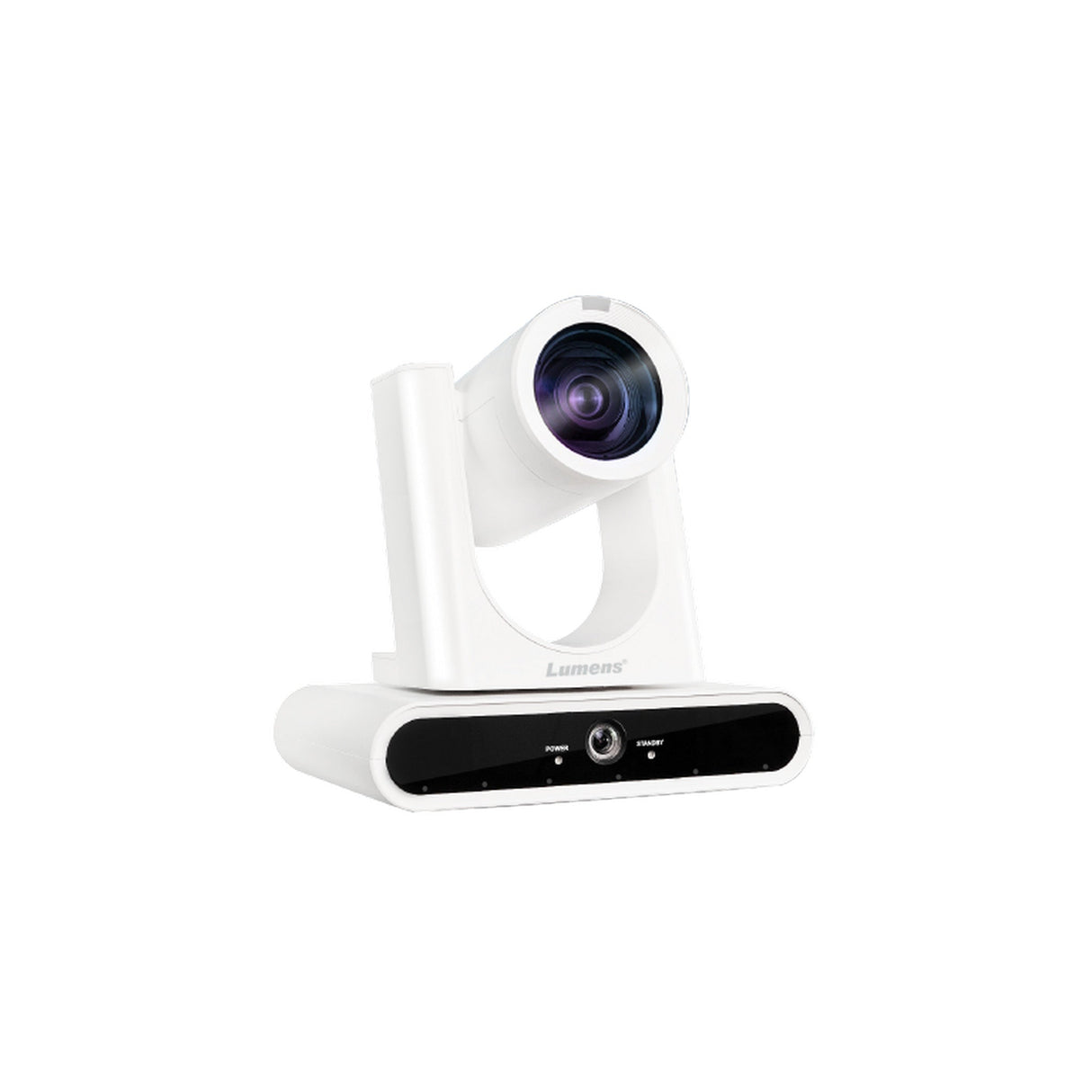

- Color Options: Black and White
- Power: PoE+ (IEEE 802.3at) or DC 12V
Technical Specifications
- Sensor (PTZ): 1/2.8″ CMOS, 8.51 MP
- Sensor (Panoramic): 1/2.8″ CMOS, 8.51 MP
- Optical Zoom: 12x
- Digital Zoom: 8x
- Focal Length (PTZ): 3.4 – 43.3 mm
- Aperture (PTZ): f/1.8 – f/3.6
- Viewing Angle (Panoramic): Horizontal 110°, Vertical 78°
- Viewing Angle (PTZ): Horizontal 81°
- Pan/Tilt: Pan +170° to –170°; Tilt +90° to –30°
- Preset Positions: 256
- Minimum Illumination: 0.5 lux (F1.8, AGC ON)
- Video Outputs: HDMI (PTZ 2160p60, Panoramic 2160p30); USB (2160p30); IP stream via Dante AV-H, RTSP, RTMP(S), SRT
- USB Compression: H.264 / MJPEG / NV12
- IP Protocols: HTTP, RTSP, RTMP, RTMPS, SRT, Dante AV-H
- Audio Input: Line In; USB mic reference
- Audio Output: Ethernet, USB, HDMI, Dante
- Audio Compression: AAC / PCM
- Control Interfaces: RS-232 / RS-422 / Ethernet / USB — Protocols: VISCA, ONVIF, UVC/UAC
- Power: PoE (15 W) or DC 12V (~14 W)
- Body Color: Black / White
- Weight: 1.5 kg
- Dimensions (W×H×D): 190 × 185 × 144 mm (7.5" × 7.3" × 5.7")
- Warranty: 5-year limited (varies by region)
What's Included
- 1x VC-TR60A Dante AV-H Camera (choice of Black or White)
- 1x Power Adapter (if not using PoE)
- 1x Remote Control
- 1x Wall-Mount Bracket & mounting screws
- 1x Quick Start Guide
