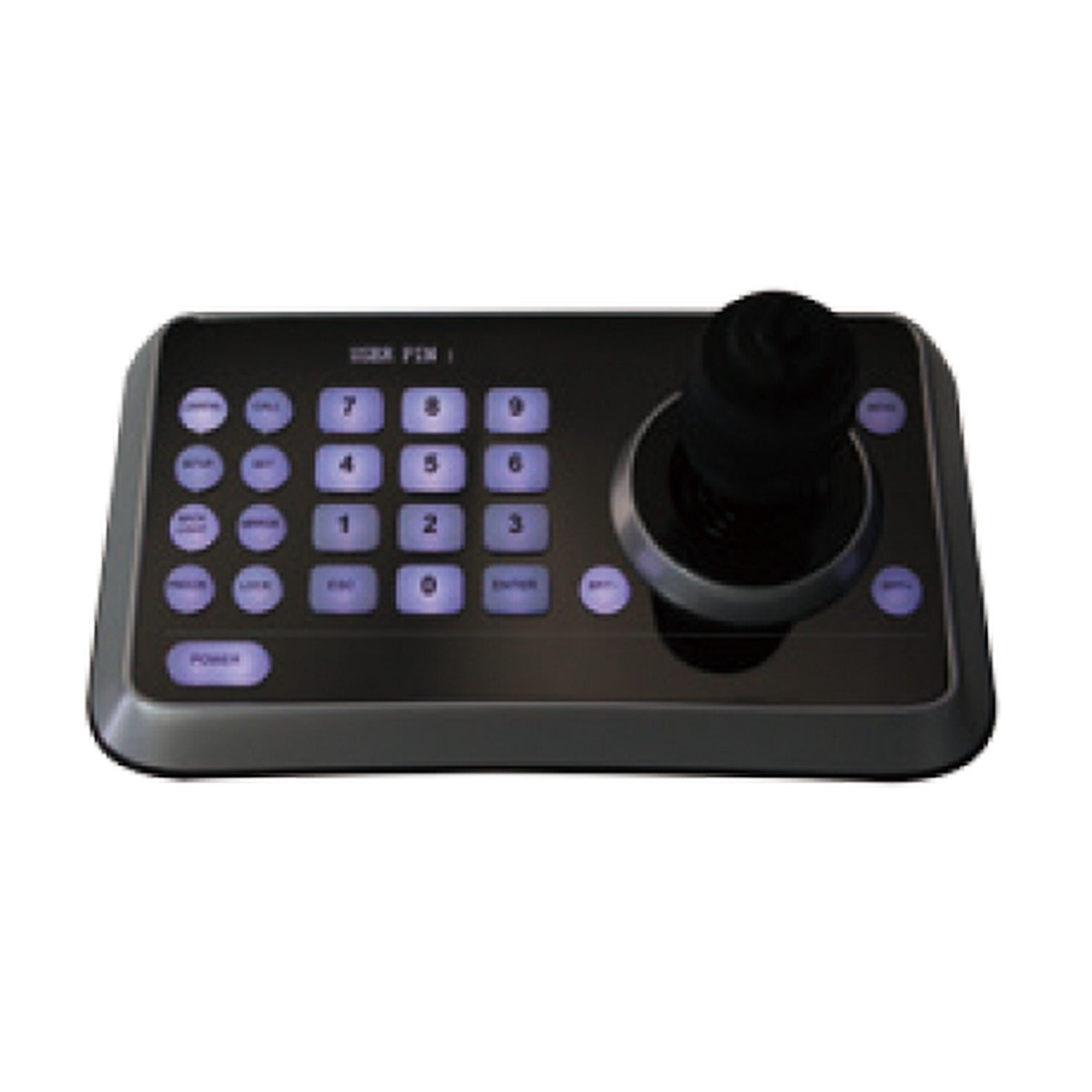

Lumens VS-K20 Compact Camera Controller for PTZ Cameras

PTZ Camera Controller

Key Features

• Joystick for Pan/Tilt/Zoom and focusing
• Easy operation of versatile camera adjustments
• The RS-232/RS-422 communication interfaces allow long-distance communication
• High brightness OLED display
• Multi-level protection from illegal operation and settings
• Auto backlight keys

Technical Specifications

Comm. Interface
Mini Din 8PIN
Protocol
VISCA
Baud Rate
9600/38400 bps
Camera Control (Max.)
7
Joystick
4-axis (Pan/Tilt/Zoom/Focus)
Display
OLED
Backlight
Auto / Manual
Power
DC12V
Power Consumption
< 2W
Dimensions (L x W x H)
200 x 120 x 103 mm (7.9” x 4.7” x 4.1”)
Weight
0.5 kg (1.1 lbs)
Package Contents
Power Cord
Power Adapter
