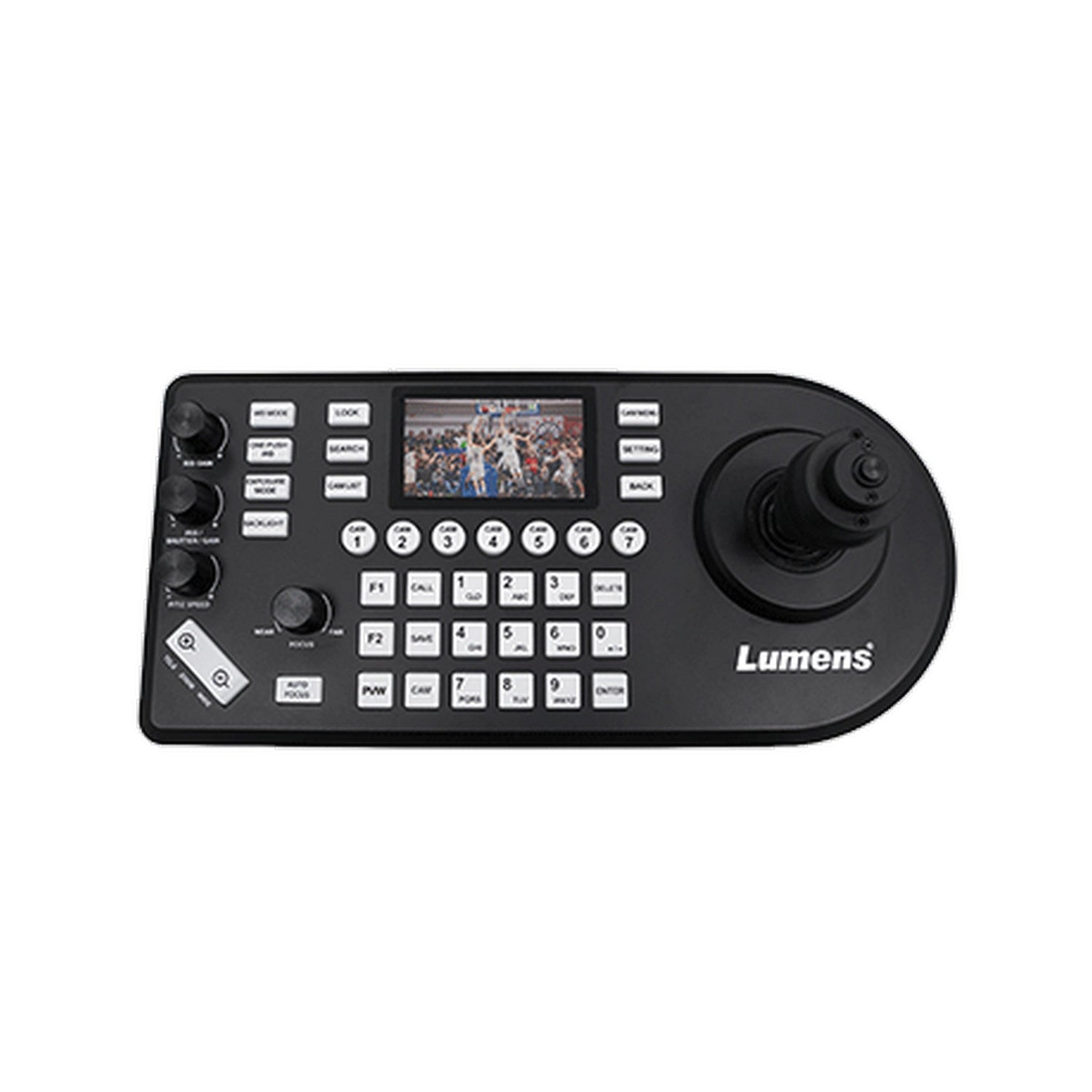

Lumens VS-KB21 IP Camera Controller with 3-Inch LCD Screen

Introducing the VS-KB21: A User-Friendly Camera Control Solution

LCD Preview Screen
The VS-KB21 boasts a 3" LCD preview screen that can simultaneously monitor up to 255 IP streams with low latency, allowing for efficient framing. Operators can easily switch to a single stream display, providing a full-screen video preview.

Quick Camera Select
With 7 hot keys, operators can instantly select the PTZ or box camera they want to control. This feature simplifies the management of multi-camera productions.

Quick Settings
All key camera parameters, including iris, shutter, and gain, are displayed on the LCD screen, making it simple and fast to configure each camera accurately.

Single Cable Installation
The VS-KB21's Ethernet connection is multi-purpose, allowing video, power, and control signals to be transmitted over a PoE-enabled switch. This feature makes the installation process quick and cost-effective.

5-Year Warranty
Lumens stands behind the quality of its products and offers a 5-year warranty with all purchases as a standard.
*Note that warranty policies may vary by region, so please contact your local sales representative for more information.

Key Features

• Allows for the management of a maximum of 255 IP-connected cameras
• Enables convenient control over exposure, white balance, focus, PTZ speed, and 2 user-assignable keys
• Facilitates RTSP Preview on the LCD screen for easy monitoring
• Offers support for RS-232, RS-422, and Ethernet control
• Provides compatibility with VISCA and VISCA Over IP control protocols

Technical Specifications

Comm. Interface
RS-232 / RS-422 / IP
Display
3" LCD
Joystick
4-axis (Pan / Tilt / Zoom)
Speed Control
x1 (1 Knob)
Zoom Control
x1 (Zoom Seesaw Lever)
Gain Control
R/B Gain
Focus Control
Auto / Manual
Assign Button
x2
Keypad with Backlight
Yes
Stream Preview
RTSP
Control Protocol
VISCA / VISCA Over IP
Baud Rate
2400 / 4800 / 9600 / 38400 / 115200 bps
Camera Address
1~255
Preset
255
Power
DC12V / PoE
Power Consumption
PoE: 5W
DC In: 5W
Dimension(WxHxD)
11.89” x 5.63” x 4.41”
(302 mm x 143mm x 112mm)
Weight
2.8 lbs (1.3 kg)
