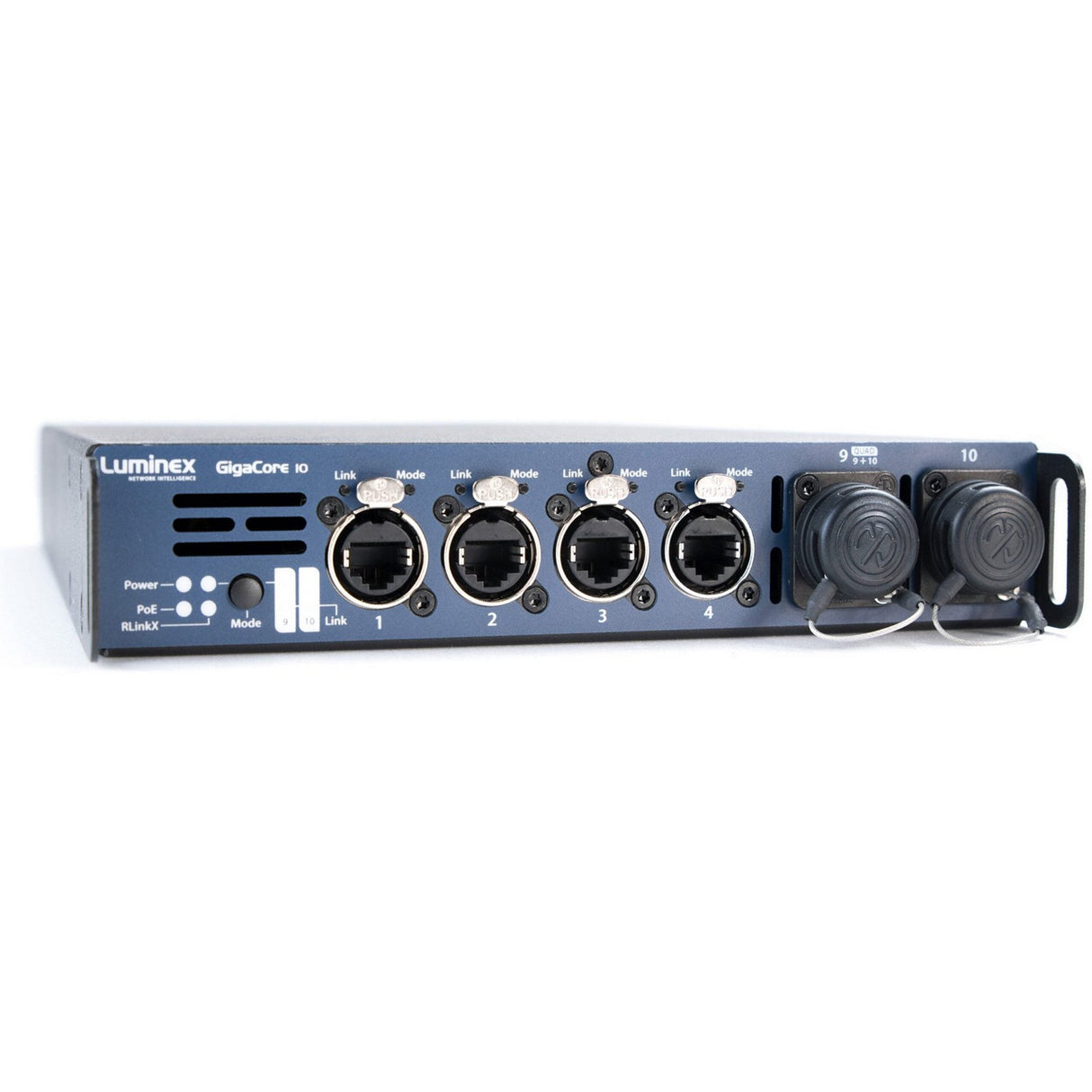

Luminex GigaCore 10 Ethernet Switch
The Luminex GigaCore 10 is by far the most versatile Luminex Gigabit switch ever built. The half 19 unit with front and rear connectivity is designed to be mounted in a truss, in a rack or even on a wall. The robust metal enclosure and rugged Ethercon and (optional) Fiber connectors make this unit excel in truss mounted applications with Ethernet enabled devices, such as moving lights, PA systems, microphones, cameras or general stage connectivity. But also to ensure ultimate redundancy the GigaCore 10 is an excellent choice. Just by coupling two units, AV professionals can create a full 19 rack combination with a primary and secondary unit.
Key Features
- Most suitable applications: Touring and live events
- RLinkX (Link redundancy)
- Groups (VLAN segmentation)
- MultiLinkX (Link aggregation)
- Profile manager
- Memory: 4Mb
- MAC address table:
- Address learning / Aging: Self learning, Auto aging
- Switching throughput: 22Gbps
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Auto negotiation
- Auto crossover: MDI / MDIX
- Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
Technical Specifications
Ethernet connectivity
8 x Shielded Neutrik Ethercon connectors
Fiber connectivity
2 x slot for rugged fiber connectors
Ethernet port speed
1Gbps
Serial
None
Power connectivity
1x Neutrik powerCON TRUE1
Power input
100-240VAC, 50-60Hz
Power consumption
Maximum 20W (maximum 150W with PoE Supply Unit)
Fuse
None
Backup power input
None
Backup PoE power input
None
PoE supply on front ports
Supported protocols
Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance
Yes (low jitter)
Ethernet compliance
IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
Mounting
Truss, rack or wall
Enclosure
Robust metal housing
Dimensions(W x D x H)
8.66 inch x 13 inch x 1.73 inch (220 x 330 x 44 mm)
Weight
6.1lbs (2.8 kg)
Packaging
21 inch x 13 inch x 3.15 inch (530 x 330 x 80 mm)
Environment
Operating temperature
32F to 122F (0 to +50 C) (non-PoE version), 32F to 104F (0 to +40 C) (PoE version)
Storage temperature
14F to 158F (-10 to +70 C)
Humidity (non condensing)
5 to 95% RH
Installation / Use Cases
- Use as a rugged Gigabit Ethernet switch for touring and live event AV networks.
- Suitable for truss, rack, or wall mounting.
- Use with Ethernet-enabled devices such as moving lights, PA systems, microphones, cameras, and general stage connectivity.
- Use RLinkX for link redundancy in show-critical network setups.
- Use Groups for VLAN segmentation.
- Use MultiLinkX for link aggregation.
- Suitable for AV network protocols including Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL, and IEEE 1588 PTP V2.
- Use two units together to create a full 19-inch rack combination with primary and secondary units.
Package Contents
- Luminex GigaCore 10 Ethernet Switch
Frequently Asked Questions
What is the Luminex GigaCore 10 designed for?
The GigaCore 10 is designed for touring and live event AV networks that require a rugged Gigabit Ethernet switch.
Where can the GigaCore 10 be mounted?
The switch can be mounted in a truss, in a rack, or on a wall.
How many Ethernet connectors does it have?
The unit has 8 shielded Neutrik Ethercon connectors.
Does the GigaCore 10 support fiber connectivity?
Yes. It has 2 slots for rugged fiber connectors.
What is the switching throughput?
The switching throughput is 22Gbps.
What network features support live AV systems?
The switch supports RLinkX link redundancy, Groups for VLAN segmentation, MultiLinkX link aggregation, profile management, IGMP support, and IGMP snooping enabled by default.
What AV protocols are supported?
Supported protocols include Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL, IEEE 802.1p CoS, DiffServ, optional PoE and PoE+, and IEEE 1588 PTP V2.
What comes with the Luminex GigaCore 10?
The package includes the Luminex GigaCore 10 Ethernet Switch.
