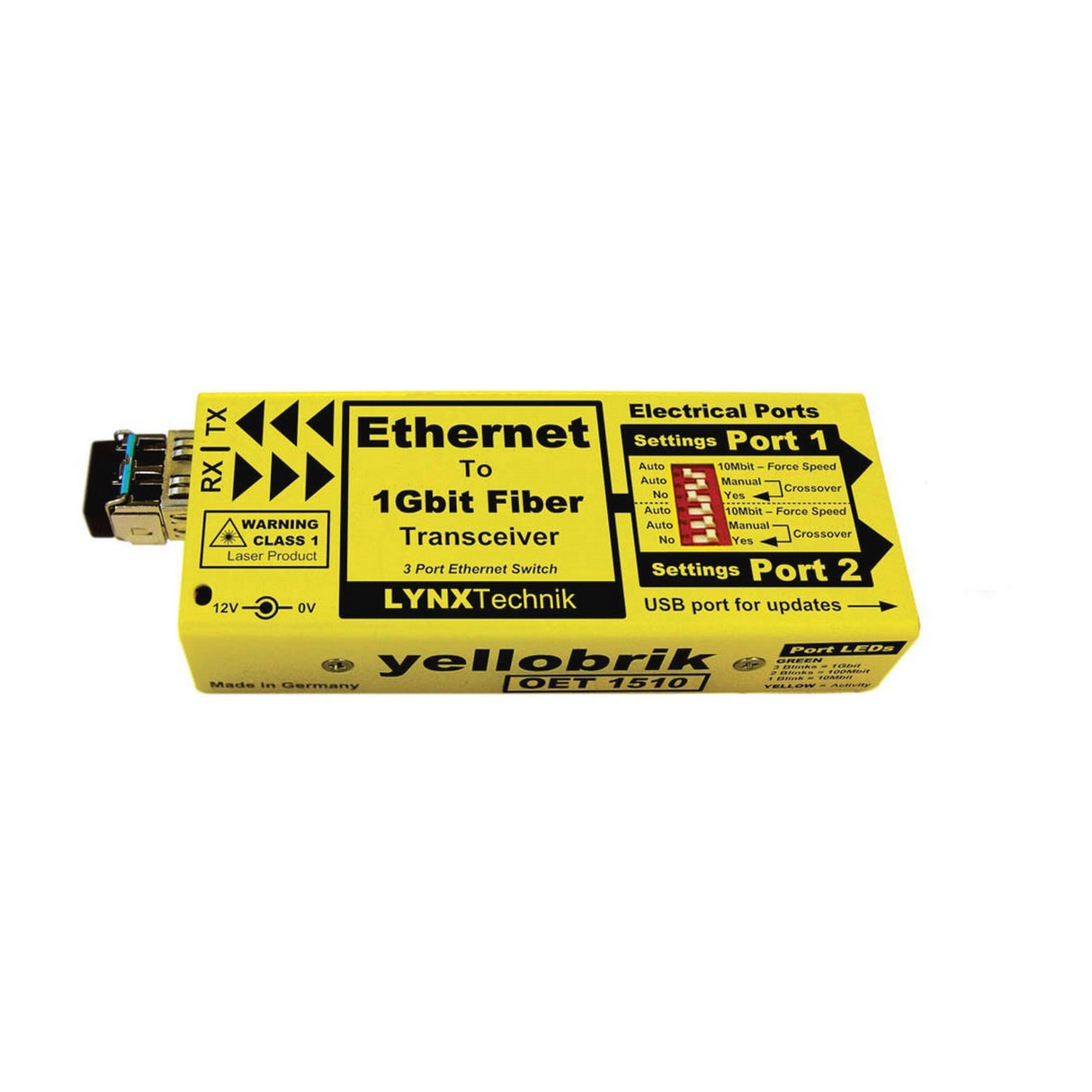

LYNX Technik OET 1510 Yellobrik Fiber to Ethernet Transceiver/Switch
The LYNX Technik OET 1510 is a compact 3 port Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit optical transceiver speed. When paired with another OET 1510 at the receiving end (using two fiber links) you have a cost-effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit error free optical connection between locations.
Key Features
- Supports standard Ethernet inputs up to 1 Gbit
- 3 port Ethernet switch (1 fiber, 2 electrical)
- Auto (10/100/1000) electrical port speed detection
- Manually force 10Mbit electrical speed (if needed)
- Fiber transceiver speed always 1 Gbit
- Auto or manual electrical crossover selection
- Singlemode fiber 1310nm up to 10km (6.2 miles)
- Multimode fiber 850nm up to 550m (1,804 feet)
- Duplex LC optical connections
- Supports hot swapping and hot plugging
Technical Specifications
Ethernet
2 x Ethernet ports, RJ 45 Connectors.
10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
Automatic crossover detection or force manually for each port (selectable)
Port speed / activity LED indication (next to Ethernet port)
Fiber Optic
1 x fiber optic input (TX)
1 x fiber optic output (RX)
Duplex using LC/PC Connections
IEEE 802.3z
(1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
Singlemode Version
TX wavelength 1310nm, power -3dBm
RX input range 1260nm to 1620nm, sensitivity -3dBm to -21dBm
Max distance 10km (6.2miles)
Multimode Version
TX wavelength 850nm, power -2dBm to -7dBm
RX input 850nm sensitivity 0dBm to -15dBm
Max distance approx 550m (1804 feet)
Fiber TX active and RX active LEDs on side of module
Physical
Power
+12VDC @ 2.2W nominal - ( supports 7 - 15VDC input range )
Size
120 x 42 x 22mm (4.73 x 1.65 x 0.86") including connectors
Weight
125g (4.4oz)
Ambient
41 - 104F / 90% Humidity (non condensing)
Model #: OET 1510 (singlemode) - ( EAN# 4250479315129 ); OET 1510 MM (multimode) - ( EAN # 4250479321144 )
